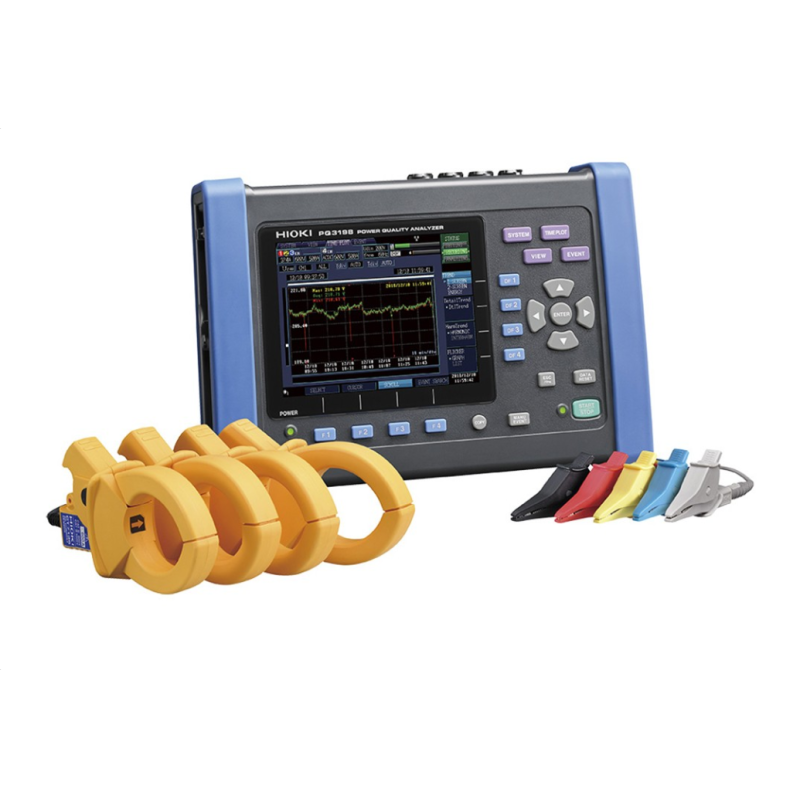

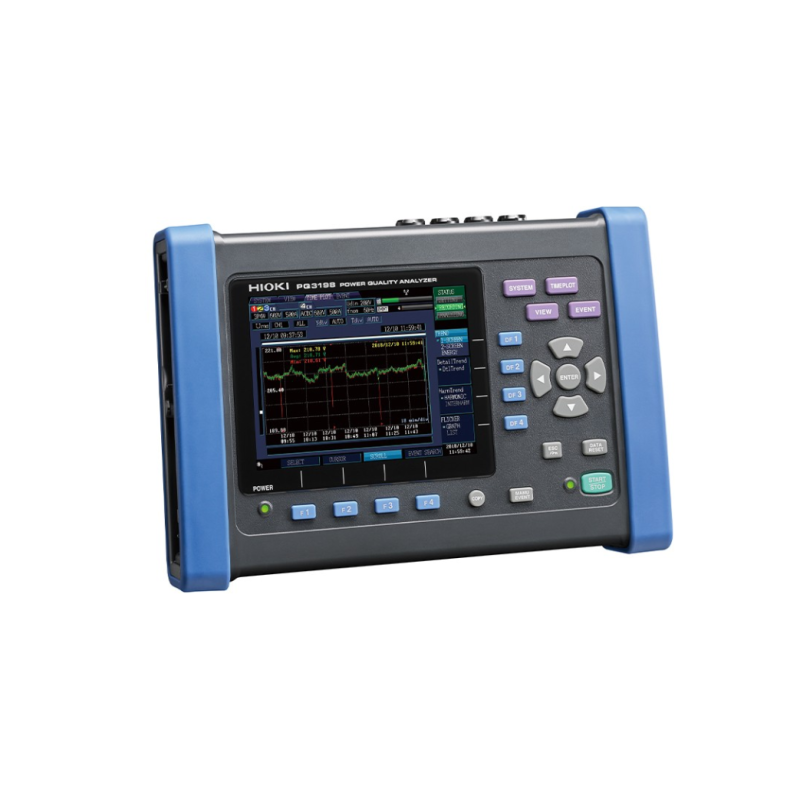

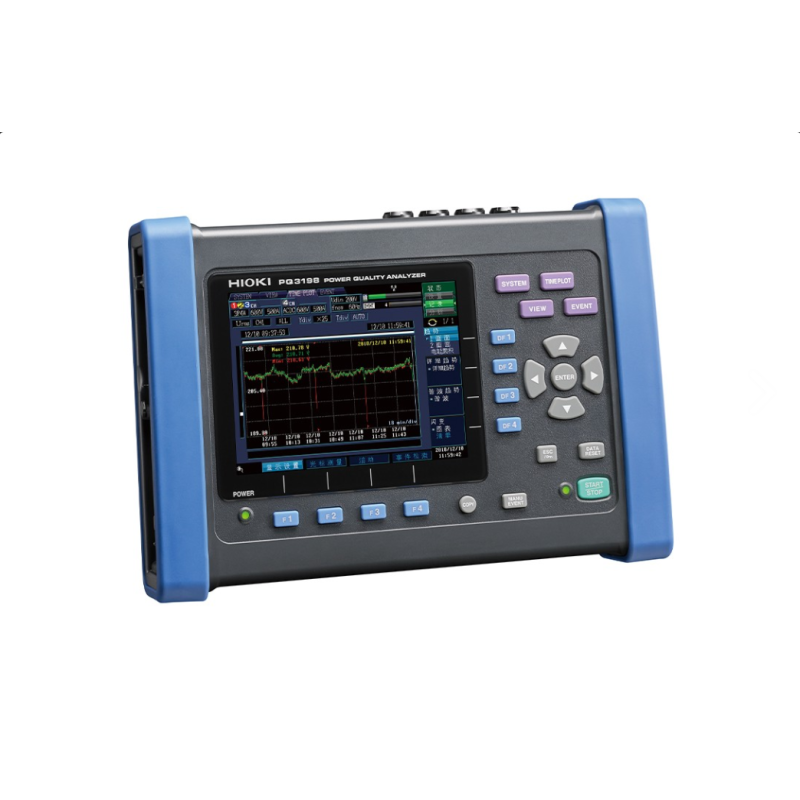

HIOKI PQ3198 Power Quality Analyzer DMM with Harmonic Fault Troubleshooting
HIOKI PQ3198 Power Quality Analyzer DMM with Harmonic Fault Troubleshooting
HIOKI PQ3198 Power Quality Analyzer DMM with Harmonic Fault Troubleshooting
HIOKI PQ3198 Power Quality Analyzer DMM with Harmonic Fault Troubleshooting
HIOKI PQ3198 Power Quality Analyzer DMM with Harmonic Fault Troubleshooting
HIOKI PQ3198 Power Quality Analyzer DMM with Harmonic Fault Troubleshooting
HIOKI PQ3198 Power Quality Analyzer DMM with Harmonic Fault Troubleshooting
HIOKI PQ3198 Power Quality Analyzer DMM with Harmonic Fault Troubleshooting
Specifications
MOQ :
1
Measurementrange :
0 to 1000 psi
Application :
Power fault troubleshooting
Place of Origin :
Japan
Outputsignal :
4-20 mA, 0-10 V, or digital
Price :
9610-12000USD
Protectionrating :
IP65 or IP67
Delivery Time :
6-8weeks
Ingressprotection :
IP65
Mountingtype :
Panel Mount, DIN Rail, Threaded
Current Range :
AC 500mA to 5kA
Sampling Rate :
2MHz instantaneous overvoltage
Harmonic Measurement :
Up to 80kHz supraharmonics
Supply Ability :
99pcs/6-8weeks
Outputinterface :
RS485, HART, Modbus
Overvoltage Capture :
6000V peak, 700kHz
Certification :
CO
Powersupply :
24 V DC
Model Number :
PQ3198
Packaging Details :
Standard cardboard box packaging
Productname :
Pressure Measurement Instruments
Measurement Lines :
Single-phase to three-phase 4-wire
Power Range :
300W to 3MW
Displaytype :
LCD or LED
Interfaces :
SD card, LAN, USB
Brand Name :
HIOKI
Payment Terms :
T/T
Voltage Range :
600.00Vrms, peak 6.0000kV
Basic Accuracy :
Voltage ±0.1% rdg
Material :
Stainless Steel
Mountingoptions :
Panel, Wall, or Pipe
Description
  • Power quality issues can be inspected according to global standards (IEC61000-4-30 Class A)
  • Continuous high-precision measurements (V: 0.1% ± of standard voltage, A: 0.1% of ± rdg. ±0.1% f.s. W:±0.2% rdg. ±0.1% f.s.)
  • Can also measure high-order harmonic components (Supraharmonics), voltage measurement up to 80kHz wide band
  • Instantaneous overvoltage peak up to 6000V, up to 700kHz
  • Maximum measurable AC 6000A
  • Uses (ch1, ch2, ch3) and ch4 can perform dual system power measurement and efficiency calculations
  • Supports simple inverter measurements, base frequency 40~70Hz, carrier frequency ~20kHz
  • Simple reports can be created using the PQ ONE accessory

Basic parameters

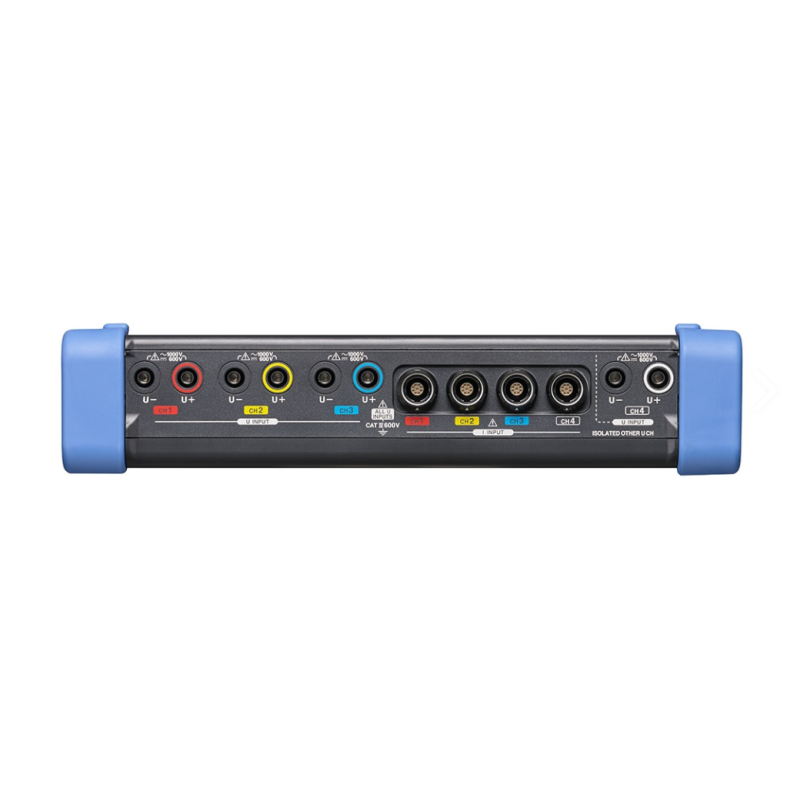

Measure the number of lines In addition to single-phase 2-wire/single-phase 3-wire/three-phase 3-wire/three-phase 4-wire, CH4 also measures voltage/current (DC or AC)
Voltage range ch1~ch3: Voltage measurement 600.00Vrms, peak instantaneous voltage measurement 6.0000kV
ch4: 600.00Vrms or DC, peak instantaneous voltage measurement 6.0000kV
Current travel range AC 500.00mA~5.0000kA (measurement range varies depending on the sensor used)
Power range 300.00W~3.0000MW (automatically determined by voltage and current range used)
Basic accuracy Voltage: Standard voltage± 0.1% rdg.
Current: ±0.1% rdg. ±0.1% f.s. + current sensor accuracy
Active power: ±0.2% rdg. ± 0.1% f.s. + current sensor accuracy
Measurement function
  1. Instantaneous overvoltage: 2MHz sampling rate
  2. Frequency 1 waveform: starts from 1 waveform 200kHz sampling rate
  3. Voltage 1/2 RMS value: calculates one waveform for every half waveform offset Current 1/2 RMS value: calculates every half waveform
  4. Voltage rise, voltage drop, instantaneous interruption: detected when voltage is 1/2 RMS value
  5. Impulse voltage: detected when the voltage is 1/2 of the RMS value
  6. Voltage waveform comparison: automatically generates and compares the judgment region
  7. Instantaneous flicker value: matches IEC61000-4-15
  8. Frequency 200ms: starts operation from 10 waveforms and 12 waveforms 40~70Hz
  9. Frequency 10 seconds: starts calculation from waveforms within 10 seconds 40~70Hz
  10. peak voltage waveform, peak current waveform
  11. voltage, current, active power, apparent power, reactive power, active energy, power factor, displacement power factor, voltage imbalance, current imbalance, efficiency
  12. Higher harmonics* (voltage/current): 2k~80kHz band *Supraharmonics
  13. Harmonics/phase angle (voltage/current), harmonic power: 0th to 50th order
  14. Harmonic voltage and current phase difference: 1st to 50th order
  15. Total harmonic distortion rate (voltage/current)
  16. Interharmonic (voltage/current): 0.5th to 49.5th order
  17. K factor (multiplier rate)
  18. V10 flash, IEC flash (short/long)
  19. Mains signaling voltage
The longest recorded time When the recurrence feature is ON: 1 year, maximum recorded events: 9999*366 days (maximum 9999 records per day).
When recurring feature is off: 35 days, maximum recorded time: 9999 cases
Interface SD/SDHC card, LAN (HTTP server function/FTP combined), USB 2.0 (communication)
Display 6.5-inch TFT color LCD (640*480 pixels)
Power supply AC adapter Z1002 (100~240V, rated 1.7A, 50/60Hz) Battery pack Z1003 (continuous usage time 180 minutes, charging via AC adapter connection, charging time 5 hours 30 minutes)
Volume and weight 300W* 211H* 68D mm, 2.6 kg (including battery pack Z1003)
Attachment User manual*1, measurement guide *1, 1 compression wire L1000*1 (red, yellow, blue, gray, black *4, alligator clip *8), solenoid *20, color test clip, AC adapter Z1002 *1, sling *1, USB cable (1m) *1, battery pack Z1003 *1, SD memory card 2GB Z4001*1
