KF665 Kraftformer Shringking 8mm Aluminum Sheet Chipless Cold Forming Machine
KF665 Kraftformer Shringking 8mm Aluminum Sheet Chipless Cold Forming Machine
KF665 Kraftformer Shringking 8mm Aluminum Sheet Chipless Cold Forming Machine
KF665 Kraftformer Shringking 8mm Aluminum Sheet Chipless Cold Forming Machine
Specifications
Place of Origin :
China
Model Number :
KF665
Packaging Details :
iron pallet or wooden case
name :
kraftformer
Price :
USD
drive :
motor drive
Charateristics :
precise and chipless cold forming of sheet metal
Delivery Time :
25days
working type :
manual operating mode
Brand Name :
wxjq
Payment Terms :
L/C, T/T
MOQ :
1 set
Certification :
ISO9001
application :
aviation maintenance,Automobile bodywork repair
process material :
mild steel,stainless steel and aluminum sheet
Description

Kraftformer 665 Application :

devices like ECKOLD Kraftformer in the Russian market, are mainly used for:
Aviation Maintenance (MRO
• Automobile bodywork repair
"Shipbuilding"
• Railways and Heavy Industry
• Special metal processing
• Small-batch high-precision sheet metal manufacturing
The core selling points of ECKOLD are:
• Cold forming without cutting
• High-precision shrinking/stretching
It does not damage the strength of the material
High efficiency for small-batch complex parts

Characteristic:

Improve maintenance efficiency
Reduce rework
No thermal deformation
Reduce mold cost
Small-batch flexible manufacturing
Replace imported kraftformer processes

Service And Maintenance:

1.Daily Maintenance Suggestions
JINQIU Kraftformer Officially emphasizes particularly:
Regularly clean the forming tools.
Check for wear on the necking/upsetting jaws.
Keep the tool surfaces clean.
Clean up metal powder promptly after processing aluminum.
Use a brass brush to clean the toothed surfaces of the tools.
Regularly replace the jaw plates and wear-prone parts.
Otherwise, it will lead to:
The forming accuracy decreases.
The machine load increases.
The wear of the main unit accelerates.
2.Maintenance of Wearable Components
The core maintenance components of Kraftformer include:
Jaw plates / Clamping plates Shrinking & Stretching tools
Tool components
Electrical control elements

Technical Paramter:

Throat depth 665mm
Opening height between the connecting face of the upper and lower dies

160～ 198 mm
Stroke of plunger 8 mm
Plunger in feed adjustment 80 mm
Plunger punching frequency 0～ 600 timeses/ min
Max thickness of sheet the machine is capable of forming
Steel sheet ((s= 400 MPa) 6 mm
Aluminum sheet((s= 250 MPa) 8mm
Copper sheet((s= 250 MPa) 8 mm
Stainless steel sheet ((s= 600 MPa) 4 mm
Main motor type capacity
AYP-50-4.0-2-B5-A 4.5 kw
In-Feeding motor type capacity
SWF80YEJ63-0.25-42.88 V11 250 w
Machine weight Net weight Gross weight
2542 kg 2700 kg

Overall dimensions

(L×W×H)

 2580×1321×2400
Power supply 3～380V 50 Hz

Warranty And Service:
one year warranty for whole press.
all spare parts are available as we produce most of the parts in our factory.

it is easy to get the electric parts as all are international famous brands.
we can provide technical support via email, phone or video.
we can send out engineers for service, installation or training with reasonable additional cost.
English operation and maintenance manual is provided with the press.
All safety warning tags and control panels are in English

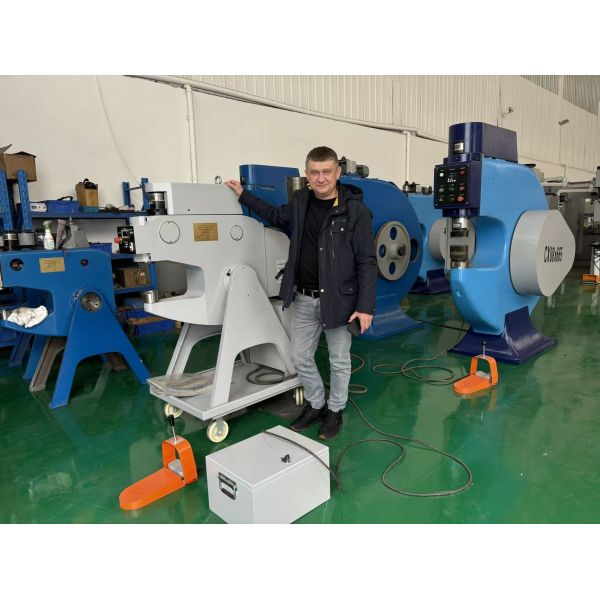

Machine Photo:

KF665 Kraftformer Shringking 8mm Aluminum Sheet Chipless Cold Forming Machine
