HandFormer CXSD 75 Process 1.2mm Alumnium Sheet Manual kraftformer
HandFormer CXSD 75 Process 1.2mm Alumnium Sheet Manual kraftformer
HandFormer CXSD 75 Process 1.2mm Alumnium Sheet Manual kraftformer
HandFormer CXSD 75 Process 1.2mm Alumnium Sheet Manual kraftformer
HandFormer CXSD 75 Process 1.2mm Alumnium Sheet Manual kraftformer
HandFormer CXSD 75 Process 1.2mm Alumnium Sheet Manual kraftformer
Specifications
Brand Name :
JQ
Model Number :
CXSD
Certification :
ISO9001
Place of Origin :
China
name :
handformer
Drvie :
manaul drive
Fearure :
shrinking and strentching process
Working Type :
hand mode
Processing :
aluminium sheet 05-1.2mm
Material Thickness :
0.5-1.2mm metal sheet
forming mode :
molds forming
Description

HandFormer CXSD 75 Process 1.2mm Alumnium Sheet Manual kraftformer

CXSD 75 Hand former Special features :

An essential equipment for every metal shop
Adjustable working height
Quick tool change
Integrated tools shelves
Depth limit stop for precise guiding of work pieces

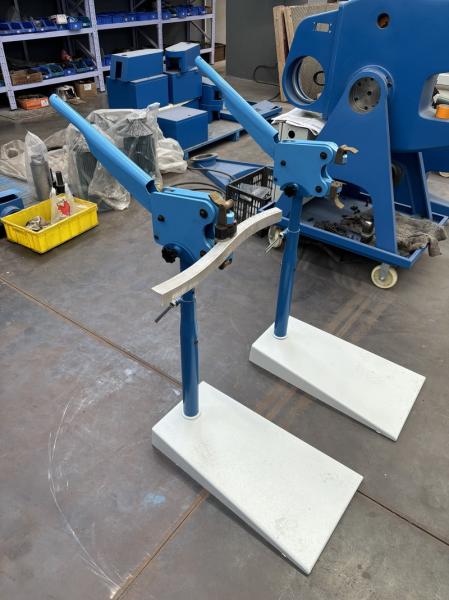

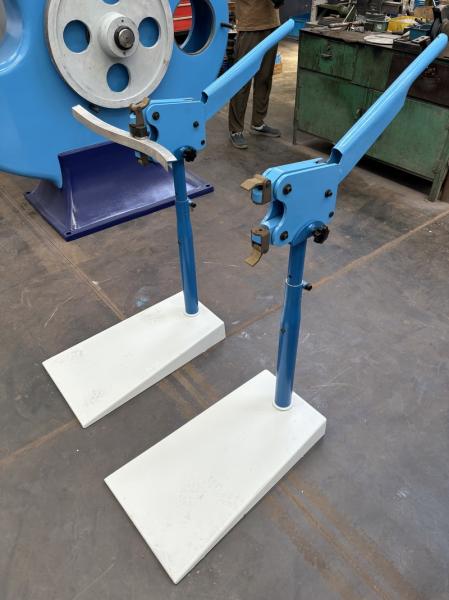

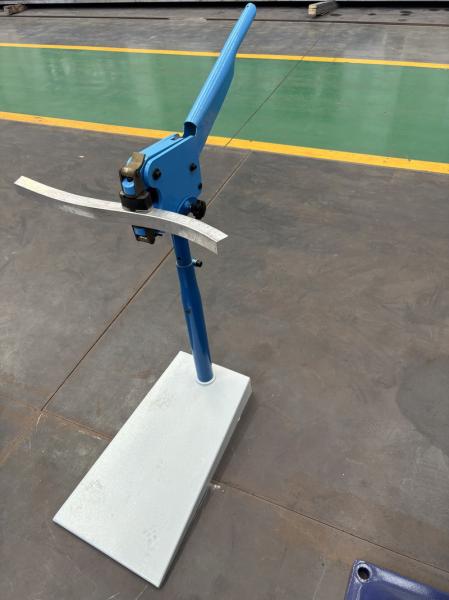

The Handformer CXSD 75 replaces laborious hammer work when forming metal. It is suitable for shrinking and

stretching mild steel sheet metal sections and profiles up to a thickness of 0.5 mm or up to 1.2 mm aluminium.
The CXSD 75 Handformer is a stationary machine for handicraft enterprises with a reach of 75 mm.

Tools for punching, notching and edging are available in addition to standard forming tools.

the Parameter of the handformer:

1. the throat depth of the machine: 75mm

2. the open height between the upper mold and low mold: 82-89mm

3.the thickness of the aluminum sheet: 05-1.2mm

4. the tensile strength of the aluminum sheet : 250Mpa

5.overall size : 11900X400X950mm

6. weight:30KG

HandFormer CXSD 75 Process 1.2mm Alumnium Sheet Manual kraftformer

Warranty And Service:
one year warranty for whole press.
all spare parts are available as we produce most of the parts in our factory.

it is easy to get the electric parts as all are international famous brands.
we can provide technical support via email, phone or video.
we can send out engineers for service, installation or training with reasonable additional cost.
English operation and maintenance manual is provided with the press.
All safety warning tags and control panels are in English

HandFormer CXSD 75 Process 1.2mm Alumnium Sheet Manual kraftformer
