50 Years Design Roof Steel Structure ISO13822 Structural Steel Trusses Three Body
50 Years Design Roof Steel Structure ISO13822 Structural Steel Trusses Three Body
Specifications
Brand Name :
Shandong Xinghua Steel Structure
Model Number :
Steel plates, H-beams, angle steels, I-beams, channel steels, round pipes, square pipes, etc
Certification :
EN1900、Three-Body
Place of Origin :
China
MOQ :
10 tons
Price :
8000 yuan per ton
Payment Terms :
Advance payment plus full payment for delivery
Supply Ability :
Monthly supply capacity not less than 2000 tons .
Delivery Time :
After confirming the drawings, the shipment will be made within 20 days .
Packaging Details :
Bulk carriers, containers
Product Name :
Prefab Steel Structure
Seismic Resistance :
Degree 8 Fortification
Wind Resistance Level :
Typhoon Level 12 (35m/s)
Design Service Life :
50 years
Feature :
Anti Earthquake、Antirust、Anti Corrosion
size :
15-80 meters 、80-120 meters 、50-1000M
Grade :
Q235B Q355B
Standard :
GB EN ASTM
Type :
Light
Keyword :
Steel structure warehouse building prefab warehouse steel structure
Performance :
Safety, water-proof, sound insulated,hear-preservation
Description

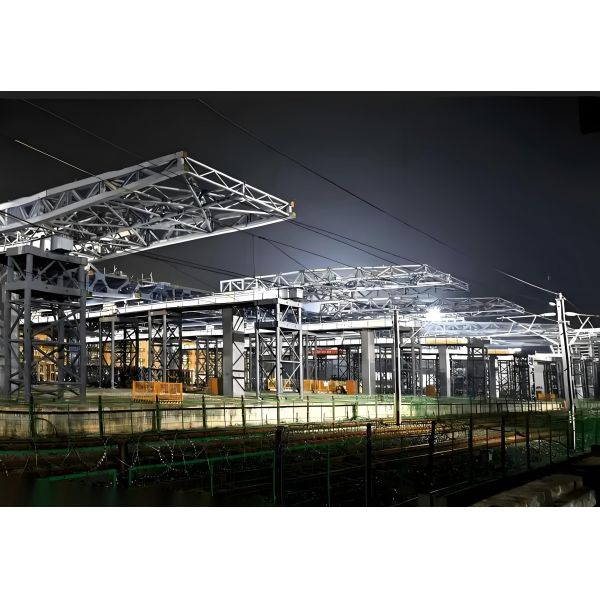

Q355B High-Strength Steel High-Speed Rail Station Roof Steel Structure

prodnct deecrlption

Large-span space grid airport roof steel structure manufactured from Q355B high-strength steel, specifically designed for modern transportation hubs. The structure maximum span can reach 150 meters, creating grand column-free space experience. Streamlined design conforms to aerodynamic principles, reducing wind load impact by 30%. Intelligent drainage system effectively copes with heavy rain climates in Southeast Asia, natural lighting design reduces energy consumption by 40%. BIM technology applied throughout the process, ensuring precise installation of complex nodes.

Technical Specifications

Parameter category

Detailed Specifications

International Standard

Main material

Q355B high-strength steel

GB/T 1591, ASTM A913, EN 10025

Structural form

Space grid structure, beam string structure, cable membrane structure

GB 50017, EN 1993, ASCE 19

Span range

50-150 meters (standard design), 150-300 meters (special design)

GB 50009, EN 1991, ASCE 7

Design life

≥ 50 years (important public building standards)

GB 50068, ISO 13822

advantages

· Q355B ultra-high-strength steel, achieving over 150-meter large-span column-free space

· Streamlined aerodynamic design, reducing wind load by 30%, improving structural safety

· Intelligent drainage system copes with extreme rainfall, drainage capacity reaching 200mm/h

· Natural lighting design reduces energy consumption by 40%, complying with green building standards

Application

· International airport terminals and waiting halls

· Urban rail transit stations and underground spaces

· Port passenger terminals and cruise ship terminals

· Long-distance bus stations and transportation transfer centers

· High-speed rail stations and rail transit hubs
