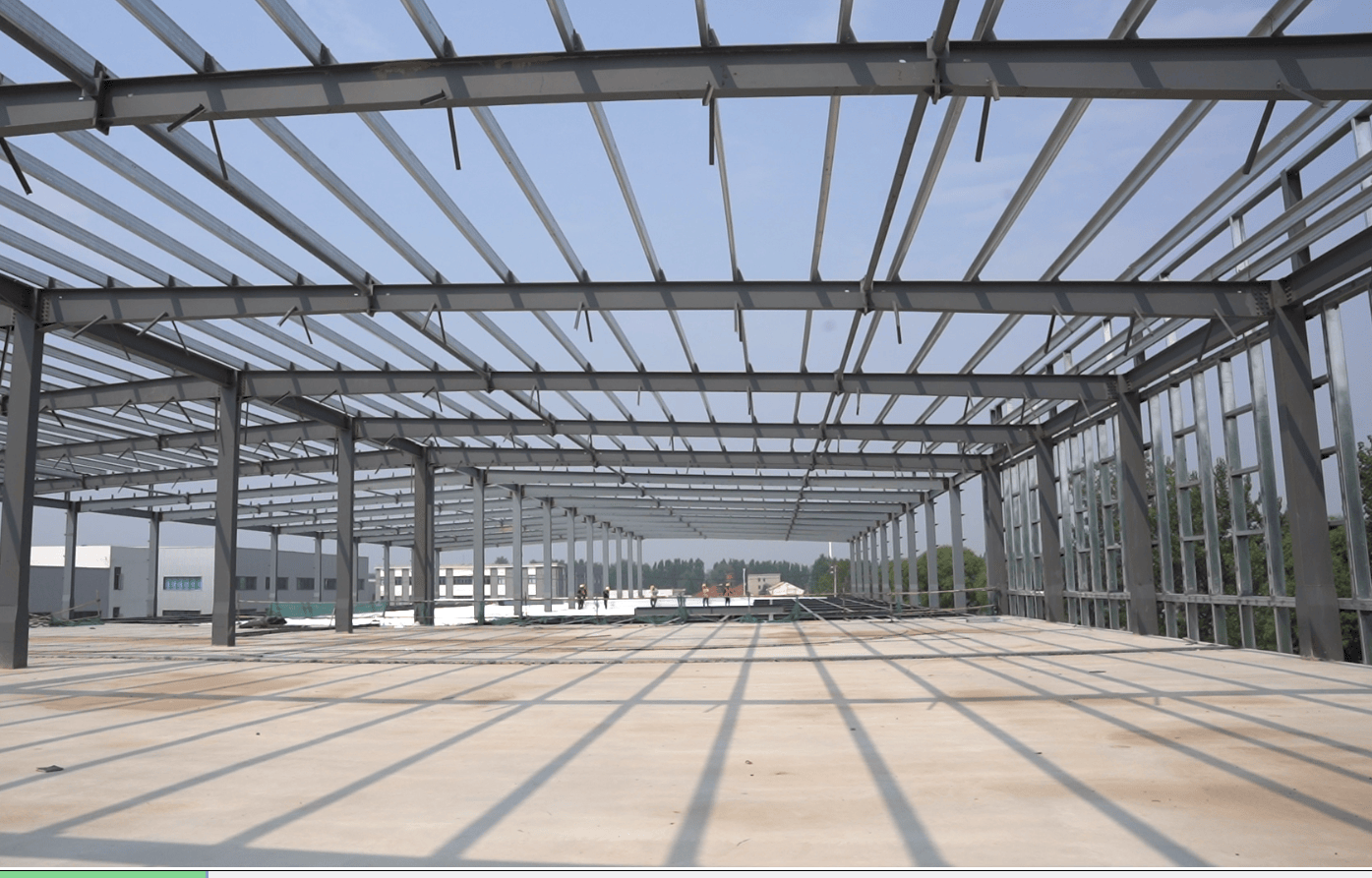

Q355B Roof Steel Structure High Strength Airport Rail Station Steel Trusses
Q355B Roof Steel Structure High Strength Airport Rail Station Steel Trusses
Specifications
Type :
Light
Grade :
Q235B Q355B
Product Name :
Prefab Steel Structure
Seismic Resistance :
Degree 8 Fortification
size :
15-80 meters 、80-120 meters 、50-1000M
Brand Name :
Shandong Xinghua Steel Structure
Model Number :
Steel plates, H-beams, angle steels, I-beams, channel steels, round pipes, square pipes, etc
Certification :
EN1900、Three-Body
Place of Origin :
China
MOQ :
10 tons
Price :
8000 yuan per ton
Payment Terms :
Advance payment plus full payment for delivery
Supply Ability :
Monthly supply capacity not less than 2000 tons .
Delivery Time :
After confirming the drawings, the shipment will be made within 20 days .
Packaging Details :
Bulk carriers, containers
Design Service Life :
50 years
Performance :
Safety, water-proof, sound insulated,hear-preservation
Feature :
Anti Earthquake、Antirust、Anti Corrosion
Keyword :
Steel structure warehouse building prefab warehouse steel structure
Wind Resistance Level :
Typhoon Level 12 (35m/s)
Standard :
GB EN ASTM
Description

A Q355B high-strength steel Airport High-Speed Rail Station Roof Steel Structure

prodnct deecrlption

Large-span space grid airport roof steel structure manufactured from Q355B high-strength steel, specifically engineered for modern transportation hubs. The structure achieves maximum spans up to 150 meters, creating expansive column-free spaces. Streamlined aerodynamic design reduces wind load impact by 32%. Intelligent drainage system effectively handles heavy rainfall conditions in Southeast Asia, while natural lighting design reduces energy consumption by 40%. BIM technology ensures precise installation of complex structural nodes throughout the construction process.

Technical Specifications

Parameter Category

Detailed Specifications

International Standard

Main Material

Q355B High-Strength Steel

GB/T 1591, ASTM A913, EN 10025

Structural Form

Space Grid Structure, Beam String Structure, Cable Membrane Structure

GB 50017, EN 1993, ASCE 19

Span Range

52-150 meters (Standard Design), 150-300 meters (Special Design)

GB 50009, EN 1991, ASCE 7

Roof Material

Aluminum Magnesium Manganese Alloy Sheet, ETFE Film Material, Photovoltaic Integrated Sheet

ASTM B209, EN 485, ISO 9227

Design Life

≥ 50 Years (Important Public Building Standards)

GB 50068, ISO 13822

Key Advantages

Q355B ultra-high-strength steel enables over 150-meter large-span column-free spaces

Streamlined aerodynamic design reduces wind load by 32%, enhancing structural safety

Intelligent drainage system handles extreme rainfall with capacity reaching 200mm/h

BIM technology ensures precise implementation throughout complex project lifecycle

Natural lighting design reduces energy consumption by 40%, meeting green building standards

Applications

International Airport Terminals and Waiting Halls

Urban Rail Transit Stations and Underground Spaces

High-Speed Rail Stations and Rail Transit Hubs

Long-Distance Bus Stations and Transportation Transfer Centers

Port Passenger Terminals and Cruise Ship Terminals
