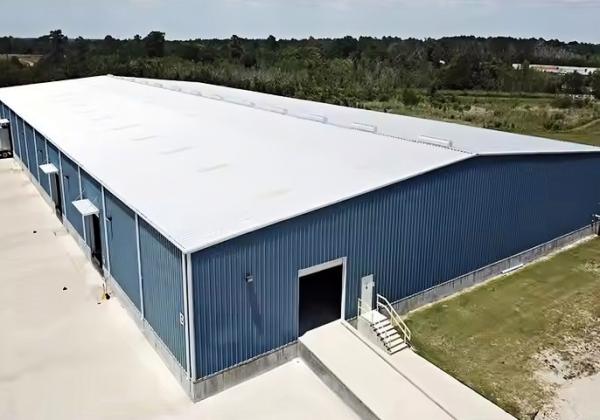

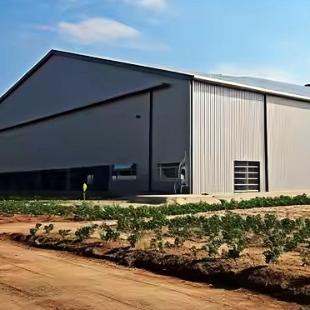

Q235B Galvanized Steel Structure Construction Warehouse Shed for Industrial Buildings

The high-strength prefabricated steel structure warehouse offers a comprehensive solution with rapid delivery and expert installation guidance. This building is designed with internal support systems and external enclosure components to ensure structural integrity.

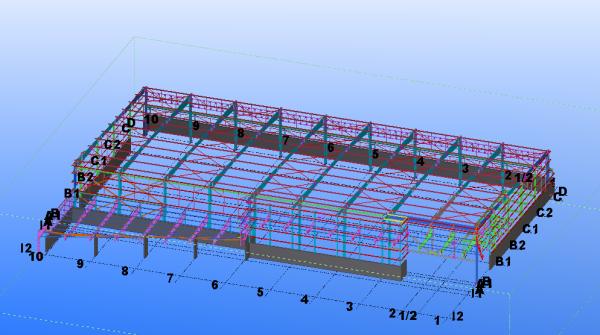

Structural Design

The steel frame features a portal design, incorporating robust steel columns, beams, and bracing. This combination creates an enclosed structure capable of withstanding severe weather conditions, including strong winds, heavy rainfall, and snow loads.

Manufacturing Process

All metal components are meticulously cut, welded, drilled, and painted in our workshop before being transported to the construction site. Each component is bolted together for convenient and efficient installation, significantly reducing labor requirements.

Core Structural Components

The steel frame consists of five main structural elements:

1. Tension Members
2. Compression Members
3. Bending Members
4. Combined Stress Members
5. Connections

These components work in harmony to ensure optimal load-bearing capacity and stability, making our warehouses a reliable choice for various applications.

The steel framework adopts a precision-engineered portal steel frame design, incorporating robust steel columns, load-bearing beams, and reinforced bracing systems. When integrated with the external enclosure structure, this portal frame configuration forms a fully sealed building envelope capable of withstanding extreme weather events, including high-velocity winds, heavy rainfall, and accumulated snow loads.

All metal components undergo meticulous prefabrication in our state-of-the-art workshop—encompassing precision cutting, welded assembly, drilled fastener points, and corrosion-resistant painting—before being transported to the construction site. Each component is secured via bolted connections, enabling streamlined, labor-efficient installation with minimal on-site work. Structurally, the steel frame comprises five core load-bearing elements: tension members, compression members, bending members, combined stress members, and their specialized connection joints, ensuring optimal structural stability and performance.

• Lightweight construction with high strength, large spans, and reduced foundation pressure
• Shorter construction period compared to concrete buildings with simple on-site assembly
• 20-30% lower investment cost than traditional buildings
• High fireproof performance and corrosion resistance
• Buildings can be disassembled, moved easily, and recycled with no pollution

We implement rigorous quality control measures throughout the project lifecycle, including:

• Material Inspections: Comprehensive inspections before and after fabrication to ensure material integrity.

• Precision Processes: Meticulous measuring, cutting, and welding to guarantee accuracy.

• Accurate Placement: Careful hole and cleat placement to ensure structural reliability.

• Proper Packaging: Efficient packaging and loading sequences to facilitate safe transportation.

• On-Site Erection: Professional support for on-site erection when required.

Company Profile

Qingdao Tsin Steel Structure Construction Technology Co., Ltd. specializes in providing integrated solutions for steel structure workshops, warehouses, and multi-storey buildings. Our services include:

• Layout Consulting: Expert advice on optimal designs and layouts.

• Structural Design: Customized structural designs tailored to client needs.

• Fabrication and Delivery: Comprehensive fabrication and delivery solutions.

• Installation Guidance: Assistance with installation to ensure seamless execution.

Our production capacity reaches 2,500 tons per month, supported by 20,000 m² of workshop space (with a total factory area of 30,000 m²). We operate complete production lines for H steel, C/Z purlins, and various steel sheet and sandwich panels, ensuring high-quality output and efficiency.
