Specifications
Brand Name :
TEYU
Model Number :
CWUP-40
Certification :
CE, REACH and RoHS
Place of Origin :
China
MOQ :
Mail Inquiry
Price :
Mail Inquiry
Packaging Details :
Mail Inquiry
Delivery Time :
Mail Inquiry
Supply Ability :
Mail Inquiry
Model :
CWUP-40
Machine Size :
67X47X89cm (L X W X H)
Warranty :
2 years
Standard :
CE, REACH and RoHS
Description

Ultrafast Precision Laser Process Cooling System CWUP-40 ±0.1°C Stability Modbus-485 Communication

Product Description:

Our expertise in high precision cooling technology translates into this small laser process water chiller CWUP-40. This chiller may be simple in design yet it delivers precise cooling featuring ±0.1°C stability with PID control technology and steady flow of chilled water for your ultrafast lasers and UV lasers. Modbus 485 communication function is designed to provide effective communication between chiller and laser system.

TEYU ultrafast precision laser chiller CWUP-40 is completely self-contained, it combines a high efficiency compressor and a durable fan-cooled condenser and is suitable for purified water, distilled water or deionised water. The water fill port and drain port are mounted on the back together with a thoughtful water level check. Intelligent digital control panel displays the temperature and built-in alarm codes. This chiller is environmentally friendly, energy-saving, high-efficiency, and certified by CE, RoHS and REACH.

Features:

Intelligent functions

* Low tank water level detecting

* Low water flow rate detecting

* Over water temperature detecting

* Heating of the coolant water at low ambient temperature

Self-check display

* 12 types of alarm codes

Easy routine maintenance

* Toolless maintenance of dustproof filter screen

* Quick-replaceable optional water filter

Communication function

* Equipped with RS485 Modbus RTU protocol

Technical Parameters:

Model CWUP-40ANTY CWUP-40BNTY CWUP-40AN5TY CWUP-40BN5TY
Voltage AC 1P 220-240V AC 1P 220-240V AC 1P 220~240V AC 1P 220~240V
Frequency 50Hz 60Hz 50Hz 60Hz
Current 2.3~11.4A 2.1~12A 3.4~21.4A 3.9~21.1A
Max. power consumption 2.14kW 2.36kW 3.83kW 4.03kW

Compressor power		 1.11kW 1.08kW 1.75kW 1.7kW
1.48HP 1.44HP 2.34HP 2.27HP


Nominal cooling capacity

 10713Btu/h 13648Btu/h
3.14kW 4kW
2699Kcal/h 3439Kcal/h
Refrigerant R-410a
Precision ±0.1℃
Reducer Capillary
Pump power 0.37kW 0.55kW 0.75kW
Tank capacity 14L
Inlet and outlet Rp1/2”
Max. pump pressure 2.7bar 4.4bar 5.3bar
Max. pump flow 75L/min
N.W 58Kg 67Kg
G.W 70Kg 79Kg
Dimension 67X47X89cm (L X W X H)
Package dimension 73X57X105cm (L X W X H)

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

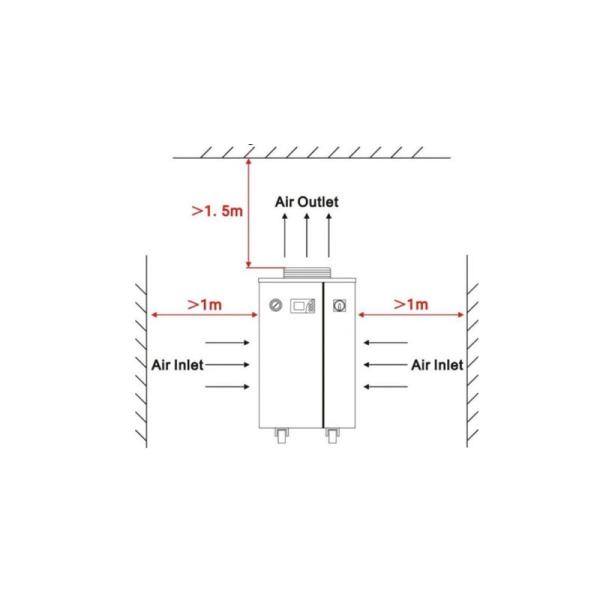

Ventilation Distance:

Ultrafast Precision UV Laser Chiller Laser Process Cooling System CWUP-40 ±0.1°C
