CWUP-20 Circulating UV Laser Chiller Circulating Water Chiller ±0.1℃ Stability RS485 Communication
CWUP-20 Circulating UV Laser Chiller Circulating Water Chiller ±0.1℃ Stability RS485 Communication
CWUP-20 Circulating UV Laser Chiller Circulating Water Chiller ±0.1℃ Stability RS485 Communication
CWUP-20 Circulating UV Laser Chiller Circulating Water Chiller ±0.1℃ Stability RS485 Communication
CWUP-20 Circulating UV Laser Chiller Circulating Water Chiller ±0.1℃ Stability RS485 Communication
CWUP-20 Circulating UV Laser Chiller Circulating Water Chiller ±0.1℃ Stability RS485 Communication
CWUP-20 Circulating UV Laser Chiller Circulating Water Chiller ±0.1℃ Stability RS485 Communication
CWUP-20 Circulating UV Laser Chiller Circulating Water Chiller ±0.1℃ Stability RS485 Communication
Specifications
Brand Name :
TEYU
Model Number :
CWUP-20
Certification :
CE, REACH and RoHS
Place of Origin :
China
MOQ :
Mail Inquiry
Price :
Mail Inquiry
Packaging Details :
Mail Inquiry
Delivery Time :
Mail Inquiry
Supply Ability :
Mail Inquiry
Model :
CWUP-20
Machine Size :
58 X29X52cm (L X W X H)
Warranty :
2 years
Standard :
CE, REACH and RoHS
Description

Circulating Water Chiller CWUP-20 for Ultrafast Laser UV Laser ±0.1℃ Stability RS485 Communication

Product Description:

TEYU circulating water chiller CWUP-20 is an active cooling portable water chiller that optimizes the operation of your ultrafast laser and UV laser system. The water temperature of this small laser chiller is PID controlled, delivering a particularly high degree of temperature stability of ±0.1°C and a cooling capacity of up to 1430W.

Portable industrial water chiller CWUP-20 supports RS485 communication to realize communication between the chiller and the laser system. Designed with multiple built-in alarm functions and an intelligent digital temperature controller. Easy-fill port is mounted on top while 4 caster wheels are easy for mobility.

Features:

Intelligent functions

* Low tank water level detecting

* Low water flow rate detecting

* Over water temperature detecting

* Heating of the coolant water at low ambient temperature

Self-check display

* 12 types of alarm codes

Easy routine maintenance

* Toolless maintenance of dustproof filter screen

* Quick-replaceable optional water filter

Communication function

* Equipped with RS485 Modbus RTU protocol

Technical Parameters:

Model CWUP-20AI CWUP-20BI
Voltage AC 1P 220-240V AC 1P 220~240V
Frequency 50Hz 60Hz
Current 0.8~5.6A 0.6~7.7A
Max. power consumption 1.28kW 1.37kW

Compressor power		 0.59kW 0.7kW
0.8HP 0.95HP


Nominal cooling capacity

 4879Btu/h
1.43kW
1229Kcal/h
Refrigerant R-410a R-407c
Precision ±0.1℃
Reducer Capillary
Pump power 0.11kW 0.09kW
Tank capacity 6L
Inlet and outlet Rp1/2"
Max. pump pressure 2.5bar
Max. pump flow 19L/min 15L/min
N.W 25Kg
G.W 28Kg
Dimension 58X29X52cm (L X W X H)
Package dimension 65X36X56cm (L X W X H)

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

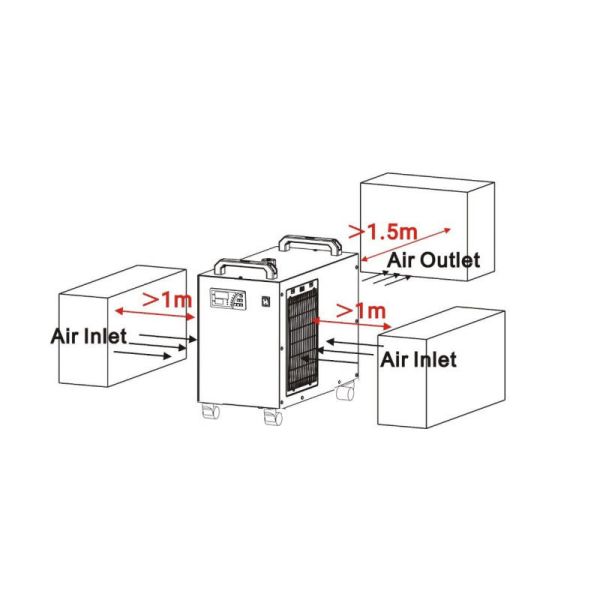

Ventilation Distance:

CWUP-20 Circulating UV Laser Chiller Circulating Water Chiller ±0.1℃ Stability RS485 Communication
