Magnetic Spirit Level Portable Magnetic Bubble Level V-Groove Working Surface Industrial Measuring Gauge

Description:

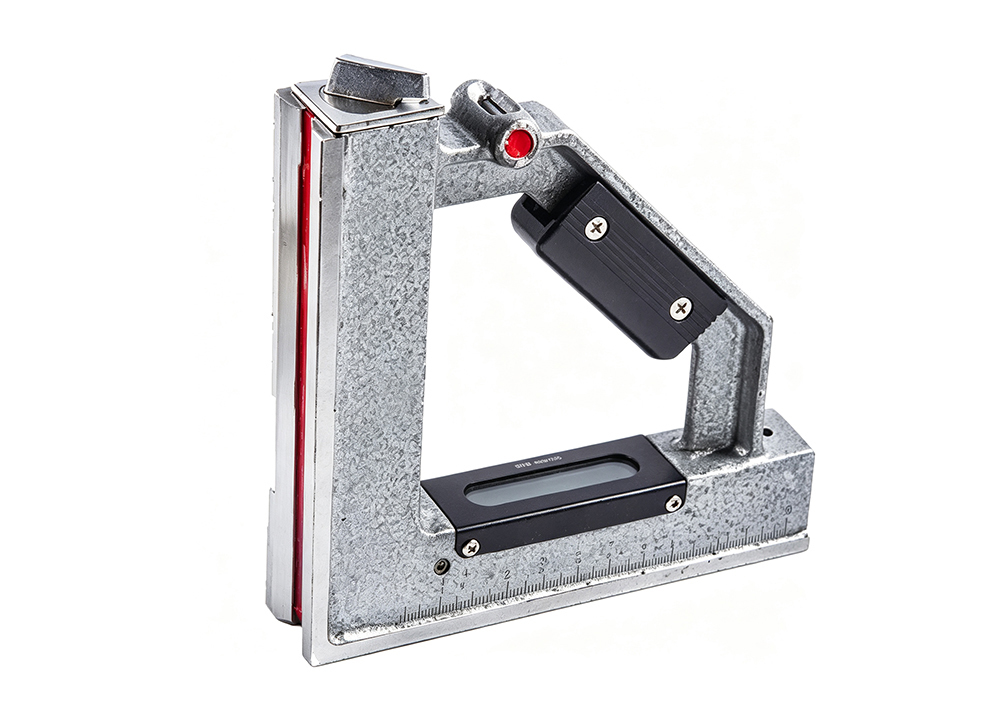

Magnetic frame level, also known as magnetic machinist level, is a precision bubble spirit level designed for machinery alignment work. Widely used to inspect the straightness of machine tool guide rails and verify the precision of horizontal and vertical installation positions for industrial equipment.

Precision level consists of sturdy cast body, main level vial, auxiliary vial, magnetic assembly and zero adjustment mechanism. The built-in zero adjustment device allows flexible, convenient calibration of the zero position to maintain consistent measuring accuracy during long-term workshop use.

Equipped with a switchable magnetic function, the magnet can be turned ON or OFF via control switch. It can be firmly adsorbed onto vertical metal planes as well as cylindrical surfaces without slipping during measurement. We supply two types: square magnetic frame level and right-angle magnetic level to satisfy different on-site measurement requirements. Available sizes: 100mm and 200mm with graduation of 0.02-0.05mm/m.

Quick Detail:

1.The level is mainly used to inspect the straightness of guide rails of various machine tools and other equipment,

as well as the accuracy of horizontal and vertical installation positions.

2.This instrument is mainly composed of the main body, main level vial, auxiliary level vial, magnet and zero adjustment

device, featuring an adjustable structure. The zero position of the level can be adjusted flexibly and conveniently via the

zero adjustment device.​

3. Compared with ordinary frame levels, the side working surface of the right-angle magnetic level is magnetic, and

the magnetic function can be switched on or off via a control switch. It can be freely adsorbed on vertical planes or

cylindrical surfaces for measurement, staying firmly fixed without slipping. It delivers accurate measurement

and is easy to operate.

Specification:

Product Highlights:

1.Switchable Magnetic Adsorption Base

Built-in controllable magnet, magnetic force can be switched ON/OFF freely. It firmly adheres to vertical metal planes and cylindrical surfaces without slipping during measurement.

2.Convenient Zero Adjustment Mechanism

Comes with zero adjustment device. Operators can flexibly calibrate the zero position easily to sustain stable measuring accuracy over long-term usage.

3.Dual Level Vial Structure

Equipped with main level vial and auxiliary level vial, supporting reliable horizontal and vertical alignment inspection on site.

4.Two Types & Multiple Sizes Optional

Available in square frame magnetic level and right-angle magnetic level. Specifications include 100mm and 200mm with graduation of 0.02~0.05mm/m.

5.Ideal Precision Alignment Tool

Specially designed for checking guide rail straightness, horizontal and vertical installation precision of machine tools, molds and various industrial equipment.

Applications:

Frame spirit has a wide range of applications in construction, roads, machinery manufacturing, libraries, stadiums

and other engineering construction. The specific uses are as follows:

1. Landscape design: when designing landscapes such as gardens, parks, and squares, it is necessary to consider the

horizontality and verticality of the ground to ensure the beauty and stability of the landscape.

2. Building construction: in the process of building construction, it is necessary to measure the horizontality and

verticality of walls, floors, roofs, etc., to ensure the stability and stability of the building.

3. Road construction: during road construction, the levelness and slope of the road surface need to be measured

to ensure the smooth flow of the road.

4. Machinery manufacturing: in the machining process, the horizontality and verticality of the machine bed need to be

measured to ensure the accuracy and quality of the machining.

5. Library: when arranging bookshelves in the library, it is necessary to measure the horizontality and verticality of the

shelves to ensure that they cannot be tilted and affect the arrangement and borrowing of books.

6. Stadiums: in the construction of stadiums, it is necessary to measure the horizontality and verticality of the courts,

running tracks, and equipment to ensure the safety of athletes and the fairness of the competition.

FAQ:

Q1: What vials are equipped on this precision level?
A: Dual‑vial design: main level vial and auxiliary level vial. It supports both horizontal and vertical alignment inspection to meet multi‑direction on‑site measuring demands.

Q2: What types and sizes are available?
A: Two types are offered: square magnetic frame level and right‑angle magnetic frame level. Available sizes: 100 mm and 200 mm. Graduation options: 0.02 mm/m and 0.05 mm/m for different precision requirements.

Q3: What is the difference between square type and right‑angle magnetic frame level?
A: The right‑angle model features magnetic side working surfaces for vertical plane measurement. The square‑frame version is for general‑purpose alignment. You may select according to your actual on‑site measuring scenarios.
