Specifications
Brand Name :
Chitwing
Model Number :
VR Products
Certification :
ISO 9001:2015
Place of Origin :
Vietnam
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
180 set/month
Delivery Time :
30 day(s)
Packaging Details :
The mold is packaged with a wooden box and placed on a wood pallet.
Size :
300*300*306mm
IMM Tonnage :
80（T）
Mold Weight :
166（kg）
Standard :
LKM
Injection type :
Cold runner
runner type :
Cold runner
Steel of cavity :
Harden (1*2/S136)
Steel of core :
Harden (1*2/S136)
Type :
Three-plates mold
Tool life :
500k shots
Part weight :
1.5g
Description

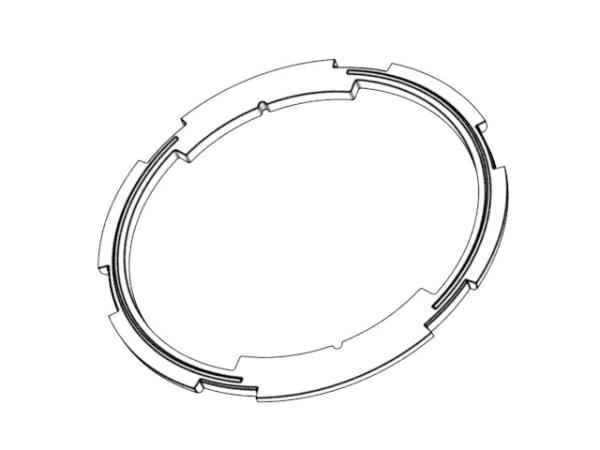

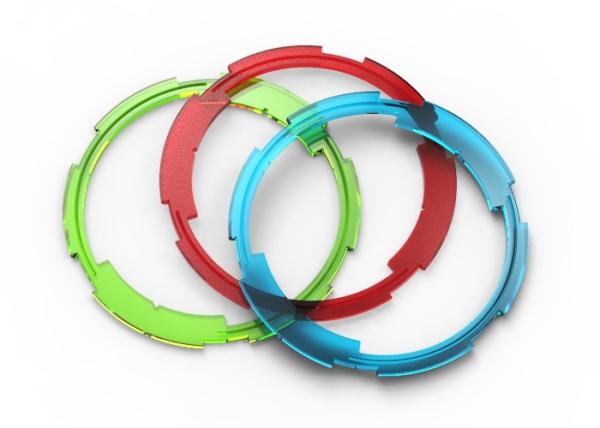

Transparent VR Rear Shell Ring (1*2)

No.22731-B

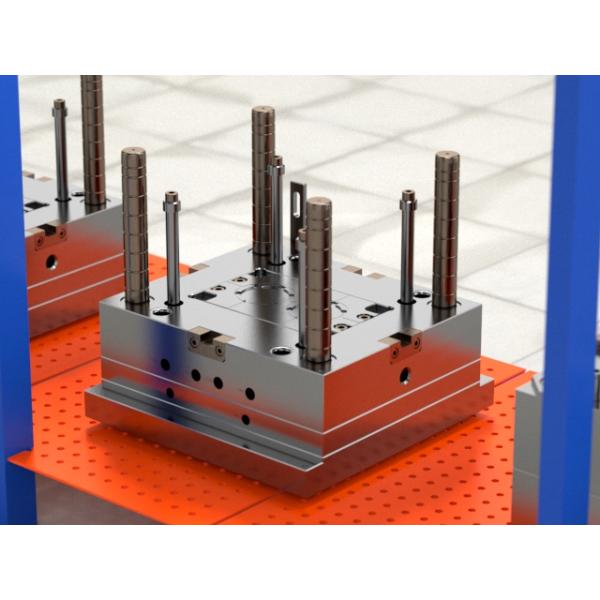

The mold base used is the standard mold base with part number FCI2530.608080. It has a length of 300mm, a width of 300mm, and a height of 306mm. The mold weighs 166kg and has a tool life of 500,000 shots.

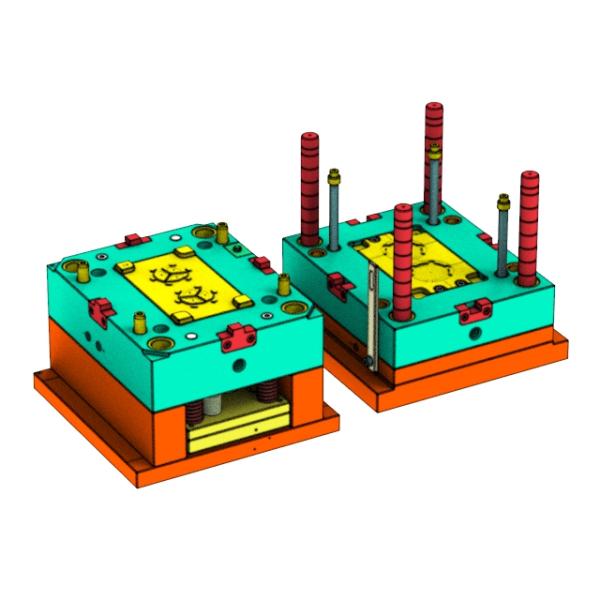

This mold is a three-plates mold, which does not require any post-processing and allows for automatic demolding. The injection/runner type is a cold runner, and the gate is a side gate, where the pin point gate is turned to the side gate.

OEM / ODM ： ABS Injection Molding & Transparent VR Rear Shell Ring 1*2 No 22731-B

The cavity and core of the mold are made of hardened steel (1*2/S136). The surface finish of the mold has two options: 1) A surface with MT11010 etch, and 2) Other surfaces EDM with VDI18# (Makino).

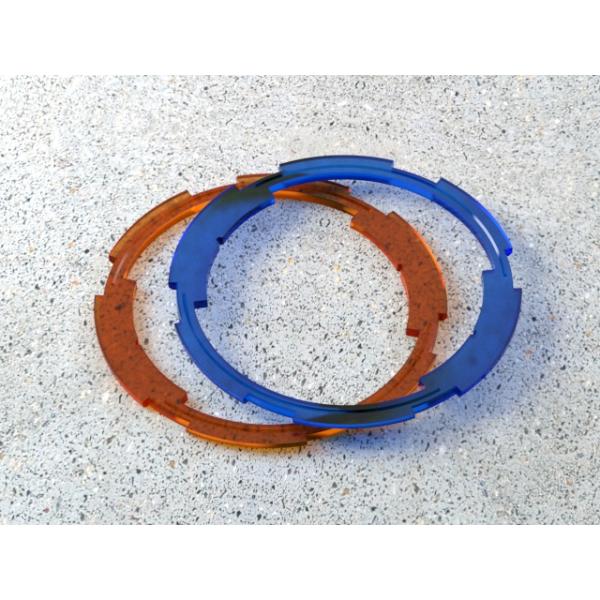

For the injection part, the material used is PC+ABS. It has a weight of 1.5g and a size of 49.16mm x 49.16mm x 2.0mm.

OEM / ODM ： ABS Injection Molding & Transparent VR Rear Shell Ring 1*2 No 22731-B

OEM / ODM ： ABS Injection Molding & Transparent VR Rear Shell Ring 1*2 No 22731-B

Display diagram
