Specifications
Brand Name :
Chitwing
Model Number :
VR Products
Certification :
ISO 9001:2015
Place of Origin :
Vietnam
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
180 set/month
Delivery Time :
30 day(s)
Packaging Details :
The mold is packaged with a wooden box and placed on a wood pallet.
Size :
300*300*306mm
IMM Tonnage :
80（T）
Mold Weight :
166（kg）
Standard :
LKM
Injection type :
Cold runner
runner type :
Cold runner
Steel of cavity :
Harden (1*2/S136)
Steel of core :
Harden (1*2/S136)
Type :
Three-plates mold
Tool life :
500k shots
Part weight :
1.5g
Description

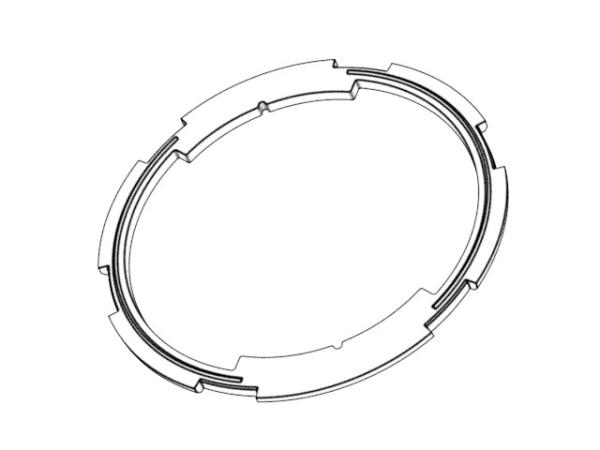

Transparent VR Rear Shell Ring (1*2)

No.22731

Standard mold base P/N: FCI2530.608080
Length Standard: LKM
300
Width Three-plates mold
300
Height Cold runner
306

The mold is designed with side gate, the pin point gate turns to the side gate.

It is flexible in position, and has uniform feeding

Transparent VR Rear Shell Ring (1*2) / Cold runner /Three-plates mold No.22731

[Mold weight]: 166kg
[Tool life]: 500k shots
[Part material]: PC+ABS
[Part weight]: 1.5g
[Part size]: 49.16 X49.16 X2.0mm

Transparent VR Rear Shell Ring (1*2) / Cold runner /Three-plates mold No.22731

☆ Surface finish ① A surface with MT11010 etch
② Partial surfaces EDM with VDI18# (Makino)
☆ Steel of cavity and core Harden (1*2/S136)

Transparent VR Rear Shell Ring (1*2) / Cold runner /Three-plates mold No.22731

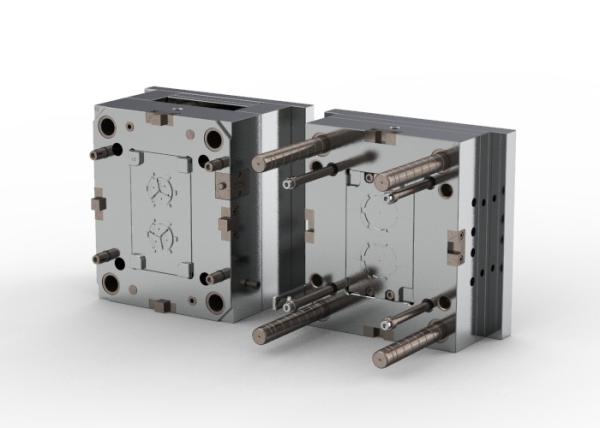

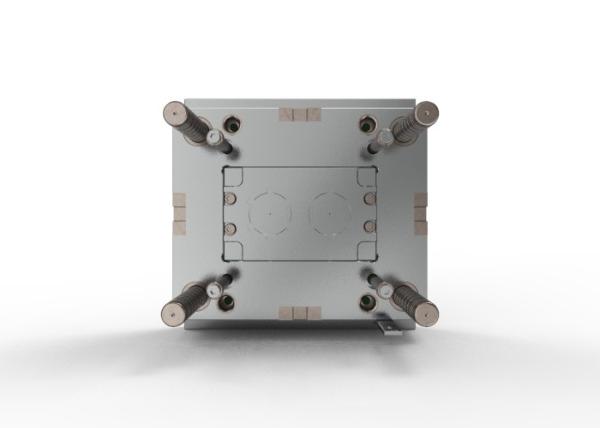

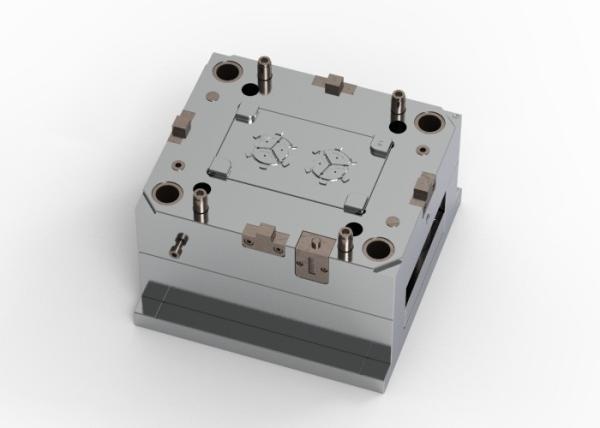

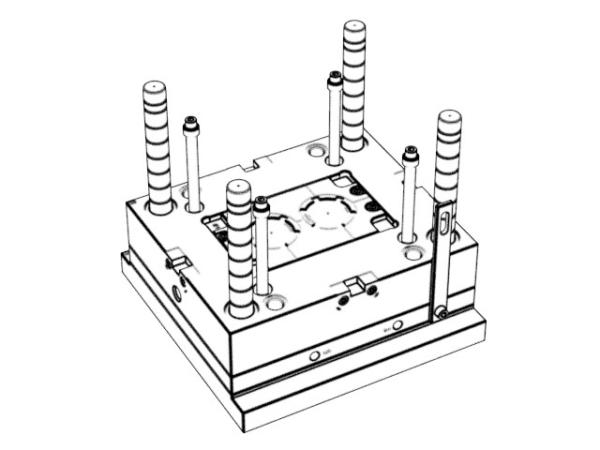

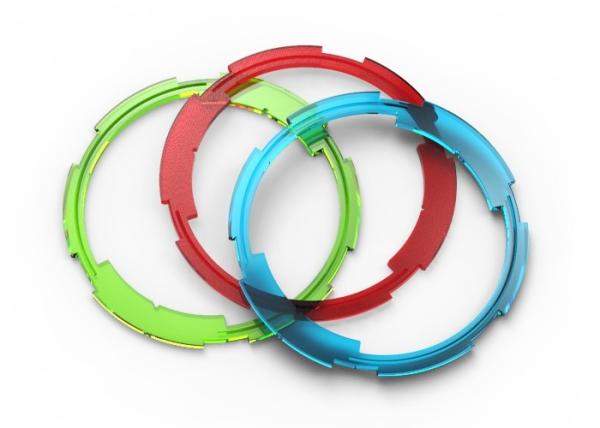

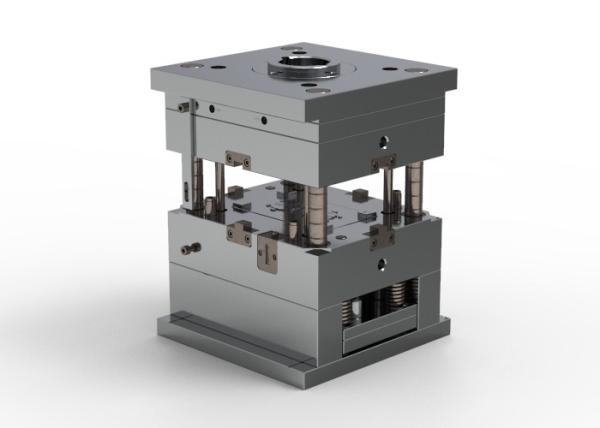

Display diagram

Transparent VR Rear Shell Ring (1*2) / Cold runner /Three-plates mold No.22731Transparent VR Rear Shell Ring (1*2) / Cold runner /Three-plates mold No.22731Transparent VR Rear Shell Ring (1*2) / Cold runner /Three-plates mold No.22731Transparent VR Rear Shell Ring (1*2) / Cold runner /Three-plates mold No.22731
