HS602 Digital Pressure Gauge Calibrating for Pressure Transmitter and Pressure Switch

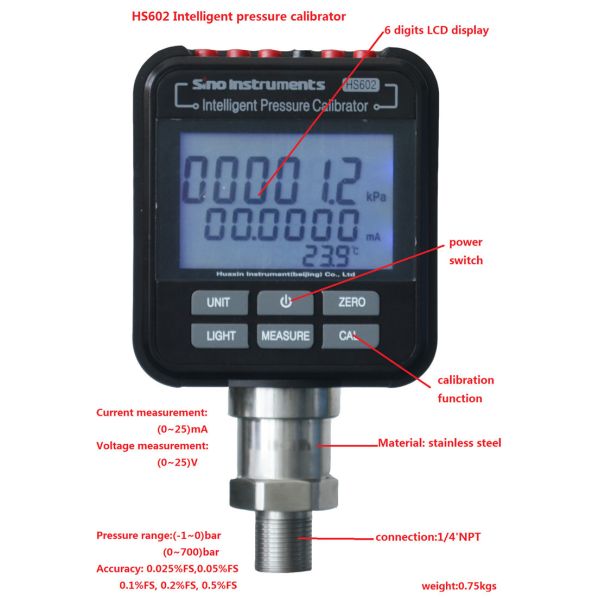

HS602 Digital Pressure Gauge Calibrating for Pressure Transmitter and Pressure Switch has the double-line large screen with backlight function. It can meet customers' requirement in the 6-digit display and 9 pressure units. It provides pressure measurement for calibrating pressure (differential pressure) transmitters, precision (general) pressure gauges and other pressure instruments. It has been used in the industries of power, chemical, petrol, metallurgy, metering, etc.

Technical specification

Range(-1-0)bar,(0-2500)bar(any range within this two range)
Accuracy:±0.025%F.S,±0.05%F.S,±0.1%F.S,±0.2%F.S,±0.5%F.S
Current measurement: (0-25)mA
Accuracy:±(0.02%R.D+0.005%F.S)
Voltage measurement: (0-25)V
Accuracy:±(0.02%R.D+0.005%F.S)
Temperature compensating range:(0-50)℃
DC output:DC24V(≤30mA) Accuracy: ±1%F.S
Power supply:7.4Vdc Lithium battery power supply and special charger
Connection:M20×1.5 or 1/4"NPT male thread(or customized)
Dimensions:Φ95mmx49mm. Total Height:166mm
Weight:0.75kg

Features
Equipped with rugged ABS plastic
Pressure-transmitting medium including air, oil, and water
6-digit LCD screen with backlight
Nine Pressure Units Selectable: kPa, Pa, psi, kgf/cm2, bar, mbar,mmH2O, mmHg, MPa
Zero point, full scale calibration function
7.4Vdc Lithium battery and special charger
Overload and short circuit protection
Light weight, small size, easy operation
Rapid in operation, compatible with computer software
Support Hart Version 5
With max/min Values functions
CE&EX approved

HUAXIN INSTRUMENT (BEIJING) CO., LTD. is a highly reputed organization dedicated to manufacturing high-quality pressure and temperature calibrator products. During considerable development, our products have already been widely used in the industries of power, chemical, petrol, metallurgy, metering, etc and part products have got CE&EX approved
