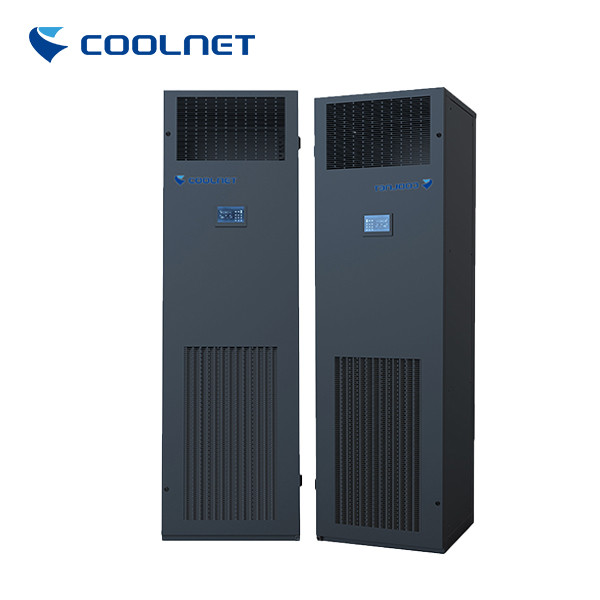

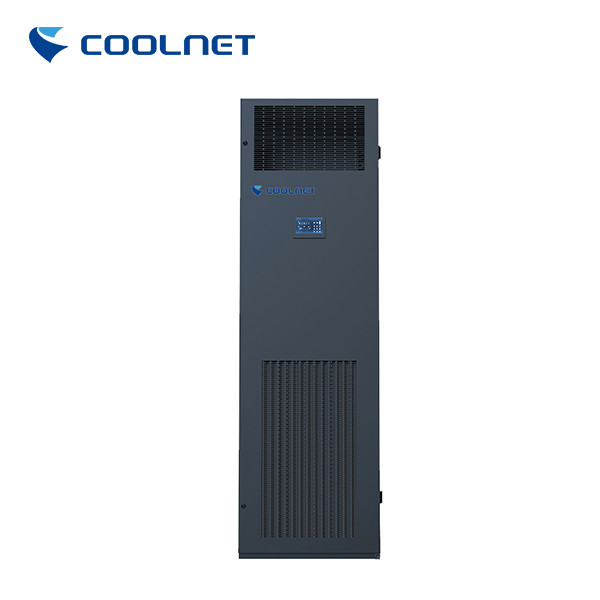

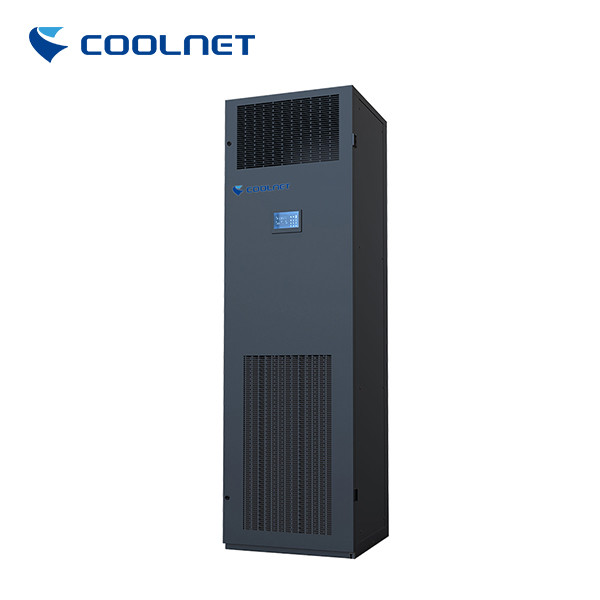

20kW Cooling Capacity Floor Standing Precision Air Conditioning Unit for High Energy Efficiency Data Centers
20kW Cooling Capacity Floor Standing Precision Air Conditioning Unit for High Energy Efficiency Data Centers
20kW Cooling Capacity Floor Standing Precision Air Conditioning Unit for High Energy Efficiency Data Centers
20kW Cooling Capacity Floor Standing Precision Air Conditioning Unit for High Energy Efficiency Data Centers
20kW Cooling Capacity Floor Standing Precision Air Conditioning Unit for High Energy Efficiency Data Centers
20kW Cooling Capacity Floor Standing Precision Air Conditioning Unit for High Energy Efficiency Data Centers
20kW Cooling Capacity Floor Standing Precision Air Conditioning Unit for High Energy Efficiency Data Centers
20kW Cooling Capacity Floor Standing Precision Air Conditioning Unit for High Energy Efficiency Data Centers
Specifications
Brand Name :
Coolnet
Model Number :
CYA,M08,CR012
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
4W
Packaging Details :
WOODED
Cooling capacity :
20kw
Condition :
New
Mounting :
Floor Standing
Type :
precision air conditioning unit(chilled water) 3ton 5ton 10ton
After-sales service provided :
Engineers available to service machinery overseas
Operating voltage :
380/400 VAC,230 VAC,220V
Precision Air Conditioning :
R22(R407C/R410A)
Application :
Computer Room,Printing factory/cinema/supper marekt/restaurant/Offfice/Kindergarten,Industrial,Heat recovery,adjust cold/heat/humidity
Airflow :
2000~50000 m3/h
Description

Computer Room Precision Cooling System For Data Center 20KW

Product Introduction

The Cool-Smart Series computer room air conditioner is designed for small and medium-sized computer rooms, base stations, equipment rooms, etc., Cool-Smart has the characteristics of high air volume and small enthalpy with high reliablity , high efficiency, long working life and energy saving advantages .

Technical Features

High reliability

  • Provide Constant temperature & humidity, cleanness precision environment to ensure the main equipment in good running condition
  • 24-hour running design guarantee main equipment operation safety
  • All units had passed a severe running test before delivery, which can ensure units’ high reliability.

High energy efficiency

  • SHR (sensible heat ratio) is larger than 90%.
  • Compressor EER is larger than 3.1
  • Optimal and high efficiency compressor and fan in CRAC industry.
  • Maximum evaporator in CRAC industry ensures the highest heat exchange efficiency.
  • Optimal CFD air duct design: minimum air duct resistance & minimumfan power
  • Inverter IDU: high efficiency & long working life
  • Advanced control logic: avoid competitive running and output cooling capacity according to actual cooling capacity demand.

Easy maintenance

  • Front panel maintenance: all maintenance operation can be finished
  • from the front panel
  • Air filter with metal frame: cleanable repeatedly with low maintenance cost.
  • Auto-clean function: lower maintenance work
  • Metal frame with marine protection grade: durable and less maintenance work.
  • All metal fans of ODU & IDU: durable & high end
  • Remote control: convenient management & maintenance
 20kW Cooling Capacity Floor Standing Precision Air Conditioning Unit for High Energy Efficiency Data Centers

Scope of Application

  • Small-Medium size computer room
  • Communication base
  • Rail road, Army, Broadcast base
  • Power room, substation
  • Monitoring room, Power distribution room, Battery room
  • High precision lab, Test room, Inspection room, Measuring room
  • Industrial control room, Precision workshop
  • Archives,Store room, Museum, Wine cellar
 20kW Cooling Capacity Floor Standing Precision Air Conditioning Unit for High Energy Efficiency Data Centers

Air Supply Method

20kW Cooling Capacity Floor Standing Precision Air Conditioning Unit for High Energy Efficiency Data Centers

Technical Parameter

Model M04 M06 M08 M13 M16 M20
Power Supply 220V1Ph-50Hz 380V3Ph-50Hz
Air discharge Up Front/Down
Technical Data Sheet
AC Fan Total cooling capacity-KW 4.2 6.4 7.5 12.5 16.8 20.2
Sensible cooling capacity-KW 3.9 5.8 6.9 11.3 15.3 18.3
Unit FLA-A(heating, humidifying type) 20.0 25.0 16.8 22.0 23.5 28.6
Compressor Quantity 1
Fan Quantity 1
Air Volume-m3/h 1600 1900 2300 3600 5100 6500
Heater Capacity-KW 3.0 3.0 6.0 6.0 6.0 6.0
Humidification-kg/h 3 3 3 3 6 6
Power of humidifier-KW 2.3 2.3 2.3 2.3 4.5 4.5
Outdoor Condenser
Model SCA020 SCA020 SCA030 SCA030 SCA050 SCA050
Standard unit operating temperature range-℃ -15-45℃
Low Temperature Components Operating Temperature Range-℃ -40-45℃

Certificates

20kW Cooling Capacity Floor Standing Precision Air Conditioning Unit for High Energy Efficiency Data Centers

Factory Details

20kW Cooling Capacity Floor Standing Precision Air Conditioning Unit for High Energy Efficiency Data Centers

Packing & Delivery

20kW Cooling Capacity Floor Standing Precision Air Conditioning Unit for High Energy Efficiency Data Centers

Cases

20kW Cooling Capacity Floor Standing Precision Air Conditioning Unit for High Energy Efficiency Data Centers
