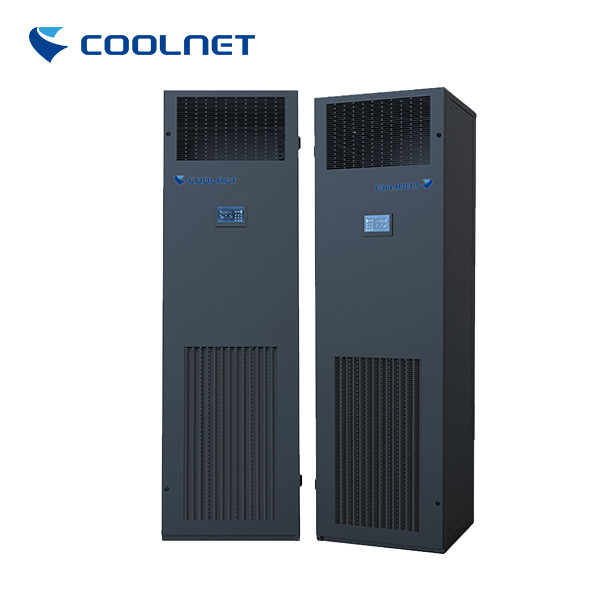

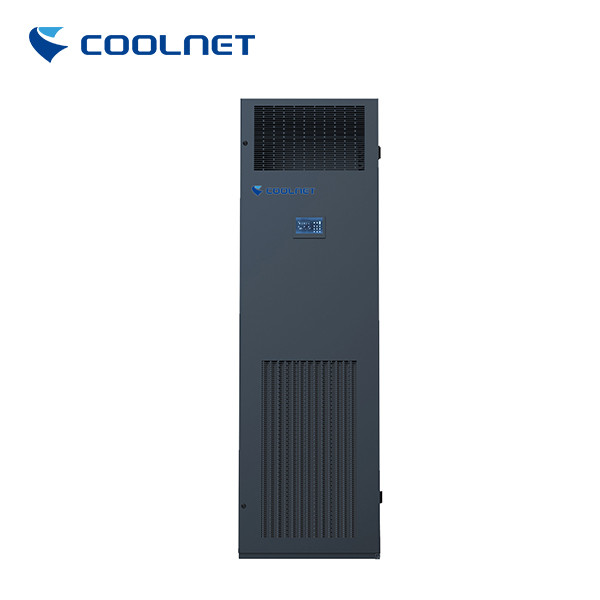

8KW Cooling Capacity Floor Standing Computer Room Air Conditioning Unit with High Intelligent Control
8KW Cooling Capacity Floor Standing Computer Room Air Conditioning Unit with High Intelligent Control
8KW Cooling Capacity Floor Standing Computer Room Air Conditioning Unit with High Intelligent Control
8KW Cooling Capacity Floor Standing Computer Room Air Conditioning Unit with High Intelligent Control
8KW Cooling Capacity Floor Standing Computer Room Air Conditioning Unit with High Intelligent Control
8KW Cooling Capacity Floor Standing Computer Room Air Conditioning Unit with High Intelligent Control
Specifications
Brand Name :
Coolent
Model Number :
CYAS23D/U
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1
Price :
to be Negotiated
Payment Terms :
T/T
Supply Ability :
1000/Month
Delivery Time :
4W
Packaging Details :
WOODEN
cooling capacity :
8KW
Mounting :
Floor Standing
Condition :
New
Type :
precision air conditioning unit( air cooled )
Operating voltage :
380/400 VAC,230 VAC,220V
Product name :
close control unit
Application :
Computer Room,Printing factory/cinema/supper marekt/restaurant/Offfice/Kindergarten,Industrial,Heat recovery,adjust cold/heat/humidity
Color :
Black/Grey white/other custom colors
Airflow :
2000~50000 m3/h
Description

8KW Computer Room Air Conditioning Unit , Close Control Air Conditioning Unit

Product Introduction

The Cool-Smart Series computer room air conditioner is designed for small and medium-sized computer rooms, base stations, equipment rooms, etc., Cool-Smart has the characteristics of high air volume and small enthalpy with high reliablity , high efficiency, long working life and energy saving advantages .

Feature & Benefits

High intelligent
• Adopting a new generation intelligent PLC microcomputer controller, large LCD screen, with background light, modular menu, English display
• Record data such as various status, alarms of the unit and historical data sharing
• Power-o仔 data protection and power recovery automatic start-up design
• Powerful group control system of 32 sets units, energy efficiency management, timing rotation and fault braking switching, automatic implementation of group adaptive energy saving
• Standard RS485 communication interface, optional internet interface, support ModBus/TCP and other customized protocols.
High reliability
• 365 days, 24 hours continuous operation design
• High-quality parts from worId-famous brands that have been rigorously designed, manufactured, tested and certified.
• Advanced self-diagnosis and fault warning control system
• Unique self－balancing software to improve the
trouble-free running time and prolong the actual service life of key components of system

 8KW Cooling Capacity Floor Standing Computer Room Air Conditioning Unit with High Intelligent Control

Applications

8KW Cooling Capacity Floor Standing Computer Room Air Conditioning Unit with High Intelligent Control
  • IT Equipment Room
  • Small Data Center
  • Industrial Clean Room
  • Constant Temperature and Humidity Process Workshop
  • Laboratory
  • Electric Power Equipment Room
  • Railway Subway Machine Room
  • Base Station and Small Telecom Switch Room
  • Medium&Small Telecom Switch Room

Air Supply Method

8KW Cooling Capacity Floor Standing Computer Room Air Conditioning Unit with High Intelligent Control

Technical Parameter

Model M04 M06 M08 M13 M16 M20
Power Supply 220V1Ph-50Hz 380V3Ph-50Hz
Air discharge Up Front/Down
Technical Data Sheet
AC Fan Total cooling capacity-KW 4.2 6.4 7.5 12.5 16.8 20.2
Sensible cooling capacity-KW 3.9 5.8 6.9 11.3 15.3 18.3
Unit FLA-A(heating, humidifying type) 20.0 25.0 16.8 22.0 23.5 28.6
Compressor Quantity 1
Fan Quantity 1
Air Volume-m3/h 1600 1900 2300 3600 5100 6500
Heater Capacity-KW 3.0 3.0 6.0 6.0 6.0 6.0
Humidification-kg/h 3 3 3 3 6 6
Power of humidifier-KW 2.3 2.3 2.3 2.3 4.5 4.5
Outdoor Condenser
Model SCA020 SCA020 SCA030 SCA030 SCA050 SCA050
Standard unit operating temperature range-℃ -15-45℃
Low Temperature Components Operating Temperature Range-℃ -40-45℃

Certificates

8KW Cooling Capacity Floor Standing Computer Room Air Conditioning Unit with High Intelligent Control

Factory Details

8KW Cooling Capacity Floor Standing Computer Room Air Conditioning Unit with High Intelligent Control

Delivery & Packing

8KW Cooling Capacity Floor Standing Computer Room Air Conditioning Unit with High Intelligent Control

Case

8KW Cooling Capacity Floor Standing Computer Room Air Conditioning Unit with High Intelligent Control
