87.2kW Packaged Air Cooled Chiller BMS Control 50 Ton For Server Room Cooling
87.2kW Packaged Air Cooled Chiller BMS Control 50 Ton For Server Room Cooling
87.2kW Packaged Air Cooled Chiller BMS Control 50 Ton For Server Room Cooling
87.2kW Packaged Air Cooled Chiller BMS Control 50 Ton For Server Room Cooling
87.2kW Packaged Air Cooled Chiller BMS Control 50 Ton For Server Room Cooling
87.2kW Packaged Air Cooled Chiller BMS Control 50 Ton For Server Room Cooling
87.2kW Packaged Air Cooled Chiller BMS Control 50 Ton For Server Room Cooling
87.2kW Packaged Air Cooled Chiller BMS Control 50 Ton For Server Room Cooling
Specifications
Model Number :
Air Cooled Chiller
Power supply :
380V-50Hz
MOQ :
1
Delivery Time :
5-8 weeks
Compressor power :
7.5*3
Head (kPa) :
240
Payment Terms :
T/T
Chilled water volume m³/h :
15.1
Refrigerant :
R410a
Price :
$5000~$50000
Water tank L :
250
Chilled water :
Water tank type
Compressor :
inverter frequency, fully enclosed vortex type
Supply Ability :
100 sets /month
Pipe diameter :
2-1/2"
Unit weight :
1100
Certification :
ISO、CE
Cooling air volume m³/h :
32000
Place of Origin :
China
Cooling capacity/kW :
87.20
Packaging Details :
wooden cartons
External dimensions :
2580*910*2020
Brand Name :
Hailos
Model :
HLS-30A
Description

Inverter Variable Capacity Air Cooled Chiller 87.2kW Intelligent BMS Control Chiller For Server Room Cooling

Product Introduction

Safeguard your critical IT infrastructure with our 87.2kW Inverter Variable Capacity Air Cooled Chiller. Engineered specifically for medium to large server rooms and data centers, this unit utilizes advanced DC inverter technology to deliver precision cooling with unmatched energy efficiency. Unlike traditional fixed-speed chillers that cycle on and off, our system modulates its cooling output seamlessly from 10% to 100%, matching the exact thermal load of your IT equipment in real-time. Integrated with an intelligent BMS (Building Management System) interface, it provides centralized control and monitoring, ensuring stable inlet temperatures, preventing thermal throttling, and significantly lowering your PUE (Power Usage Effectiveness).

Technical Parameters
Parameter Model HLS-10A HLS-12A HLS-15A HLS-20A HLS-25A HLS-30A HLS-40A HLS-50A
Cooling capacity KW
50HZ/60HZ		 28.01
32.78		 33.79

39.53		 44.15

51.65		 59.08
69.12		 71.72

83.91		 87.20
102.02		 113.58
132.89		 135.49
158.52
Kcal/h
50HZ/60HZ		 24089
28184		 29059

33999		 37965

44419		 50805
59442		 61683
72169		 74992
87741		 97675
11428		 116521

136330
Power Supply Volt 3N-380V/415V-50HZ/60HZ
Refrigerant Name R22/R404a/R407c
Fill
(kg)		 4.3*2 5*2 6.5*2 4.3*4 10.5*2 8*3 8*4 10.5*4
Control Method External equalizer thermal expansion valve
Compressor Type Scroll or Piston
Power
(KW)		 3.75*2 4.5*2 5.5*2 3.75*4 9.4*2 7.5*3 7.5*4 9.4*4

Cooling air flow		 m³/h 10600 12600 15800 21000 26000 32000 42000 52800
Chilled Water water flow
m³/h		 4.82 5.81 7.6 10.16 12.34 15.1 19.53 23.3
water tank
(L)		 80 80 100 200 200 250 400 400
Pipe diameter 1-1/2" 1-1/2" 2" 2" 2-1/2" 2-1/2" 3" 3"
Waterpump Power
(KW)		 1.5 1.5 1.5 2.2 2.2 3 3.75 3.75
Head
( kpa)		 205 205 205 220 220 240 240 240
Dimension Length
(mm)		 1540 1600 1780 2030 2580 2580 2030 2180
Width
( mm)		 780 820 830 910 910 910 1800 2000
Height
(mm)		 1690 1770 1750 1925 2020 2020 2000 2100
Weight kg 370 520 590 790 880 1100 1280 1420

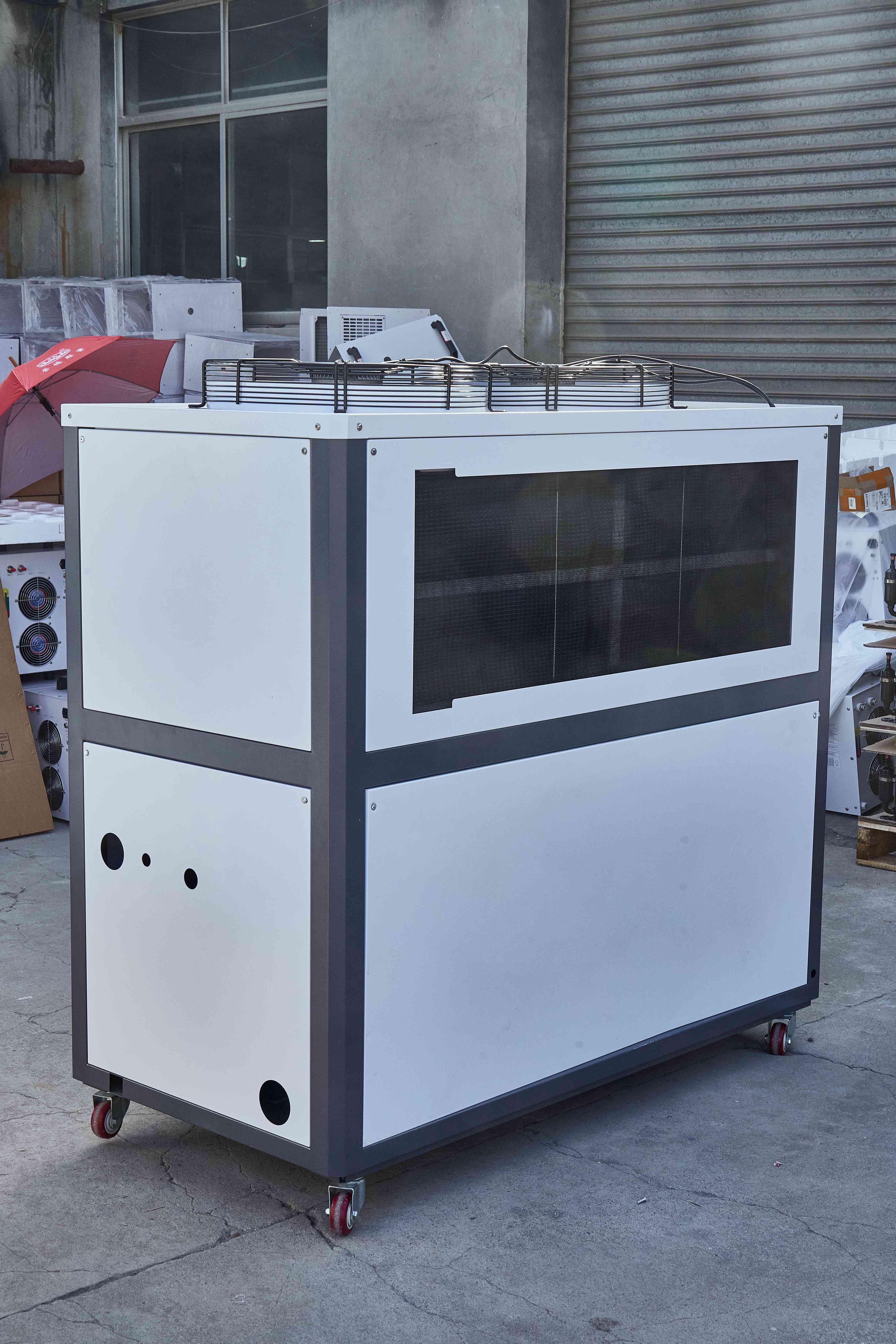

Product Photo

87.2kW Packaged Air Cooled Chiller BMS Control 50 Ton For Server Room Cooling

87.2kW Packaged Air Cooled Chiller BMS Control 50 Ton For Server Room Cooling

87.2kW Packaged Air Cooled Chiller BMS Control 50 Ton For Server Room Cooling

87.2kW Packaged Air Cooled Chiller BMS Control 50 Ton For Server Room Cooling

Certificate ( CE /ISO )

87.2kW Packaged Air Cooled Chiller BMS Control 50 Ton For Server Room Cooling

Packing

87.2kW Packaged Air Cooled Chiller BMS Control 50 Ton For Server Room Cooling

Project Case

87.2kW Packaged Air Cooled Chiller BMS Control 50 Ton For Server Room Cooling

FAQ
Q1: Who is Zhengzhou Hailos Refrigeration Equipment Co.,ltd?
A1: We are a professional factory specializing in R&D, production and export of precision air conditioners and industrial chillers, located in Zhengzhou, China. We focus on high-precision cooling equipment for data centers, laboratories, laser processing, electroplating, battery factories, medical rooms and industrial production lines. All units are strictly tested before delivery, with complete international certifications for global market sales.
Q2: What is your MOQ (Minimum Order Quantity)?
A2: 1 unit for standard models is acceptable; for customized non-standard machines, MOQ depends on configuration. Distributors with bulk orders get extra factory discount.
Q3: Do you accept factory inspection?

A3: Yes, warm welcome customers to visit our workshop and test equipment on site. We support live video factory tour if you cannot come to China temporarily.

Q4: Where are Hailos precision air conditioners widely used?
A4: Server data room, communication base station, medical lab, testing laboratory, battery workshop, optical equipment room, clean room, electronic manufacturing workshop, industrial control cabinet cooling.
Q5: Can precision air conditioner work all year round without shutdown?
A5: Yes. Our precision cooling units adopt heavy-duty scroll compressor, EC energy-saving fan and independent control system, designed for 24-hour non-stop operation all year long, low failure rate.
Q6: Can I adjust temperature and humidity remotely?
A6: Standard models support Modbus communication to connect with monitoring system; optional WiFi remote control module for mobile phone real-time parameter checking, alarm reminder and parameter modification.
Q7: What refrigerants do you use for precision AC?
A7: Mainly eco-friendly R410A, R134a; we can replace with R32, R290 low-GWP refrigerants to meet local environmental regulations in your country.
Q8: Do you support OEM / ODM customized service?
A8: Yes, full OEM & ODM service available: custom unit size, voltage (380V/220V/415V 50/60Hz), brand logo, control panel language (English, Spanish, Russian, Vietnamese), special refrigerant, remote monitoring system, cabinet color. We can design new model drawing based on your working conditions.
Q9: Do you provide technical drawing and parameter sheet?
A9: Yes. After confirming the model, we supply dimension drawing, technical datasheet, wiring diagram, installation manual in English PDF files for your project design.
Q10: Can you supply spare parts separately?
A10: Yes, we offer all replacement spare parts: compressor, fan motor, controller, filter, expansion valve, sensor.
