Specifications
Supply Ability :
100 sets /month
Head (kPa) :
205
Unit weight :
370
Model Number :
Air Cooled Chiller
Cooling air volume m³/h :
10600
Compressor :
inverter frequency, fully enclosed vortex type
MOQ :
1
Delivery Time :
5-8 weeks
Water tank L :
80
External dimensions :
1540*780*1690
Payment Terms :
T/T
Pipe diameter :
1-1/2"
Refrigerant :
R410a
Total power :
10.2
Price :
$5000~$50000
Chilled water volume m³/h :
4.82
Chilled water :
Water tank type
Certification :
ISO、CE
Cooling capacity/kW :
28.01
Place of Origin :
China
Compressor power :
3.75*2
Packaging Details :
wooden cartons
Model :
HLS-10A
Brand Name :
Hailos
Power supply :
380V-50Hz
Description

Top Air Blowing Air Cooled Chiller Scroll Compressor Water Chiller For Electroplating Process Cooling

Product Introduction

Ensure flawless finishes and process stability with our Top Air Blowing Air Cooled Chiller. Specifically engineered for the aggressive environment of electroplating and metal finishing, this unit utilizes a high-efficiency scroll compressor to deliver precise, constant-temperature cooling water. Its distinctive top-discharge design expels hot air vertically, making it perfect for installation in tight plating lines or low-clearance bays. By maintaining strict temperature control over your plating baths, this chiller optimizes chemical reactions, improves deposit uniformity, reduces rejects, and extends the life of your rectifiers and pumps.

Technical Parameters
Parameter Model HLS-10A HLS-12A HLS-15A HLS-20A HLS-25A HLS-30A HLS-40A HLS-50A
Cooling capacity KW
50HZ/60HZ		 28.01
32.78		 33.79

39.53		 44.15

51.65		 59.08
69.12		 71.72

83.91		 87.20
102.02		 113.58
132.89		 135.49
158.52
Kcal/h
50HZ/60HZ		 24089
28184		 29059

33999		 37965

44419		 50805
59442		 61683
72169		 74992
87741		 97675
11428		 116521

136330
Power Supply Volt 3N-380V/415V-50HZ/60HZ
Refrigerant Name R22/R404a/R407c
Fill
(kg)		 4.3*2 5*2 6.5*2 4.3*4 10.5*2 8*3 8*4 10.5*4
Control Method External equalizer thermal expansion valve
Compressor Type Scroll or Piston
Power
(KW)		 3.75*2 4.5*2 5.5*2 3.75*4 9.4*2 7.5*3 7.5*4 9.4*4

Cooling air flow		 m³/h 10600 12600 15800 21000 26000 32000 42000 52800
Chilled Water water flow
m³/h		 4.82 5.81 7.6 10.16 12.34 15.1 19.53 23.3
water tank
(L)		 80 80 100 200 200 250 400 400
Pipe diameter 1-1/2" 1-1/2" 2" 2" 2-1/2" 2-1/2" 3" 3"
Waterpump Power
(KW)		 1.5 1.5 1.5 2.2 2.2 3 3.75 3.75
Head
( kpa)		 205 205 205 220 220 240 240 240
Dimension Length
(mm)		 1540 1600 1780 2030 2580 2580 2030 2180
Width
( mm)		 780 820 830 910 910 910 1800 2000
Height
(mm)		 1690 1770 1750 1925 2020 2020 2000 2100
Weight kg 370 520 590 790 880 1100 1280 1420

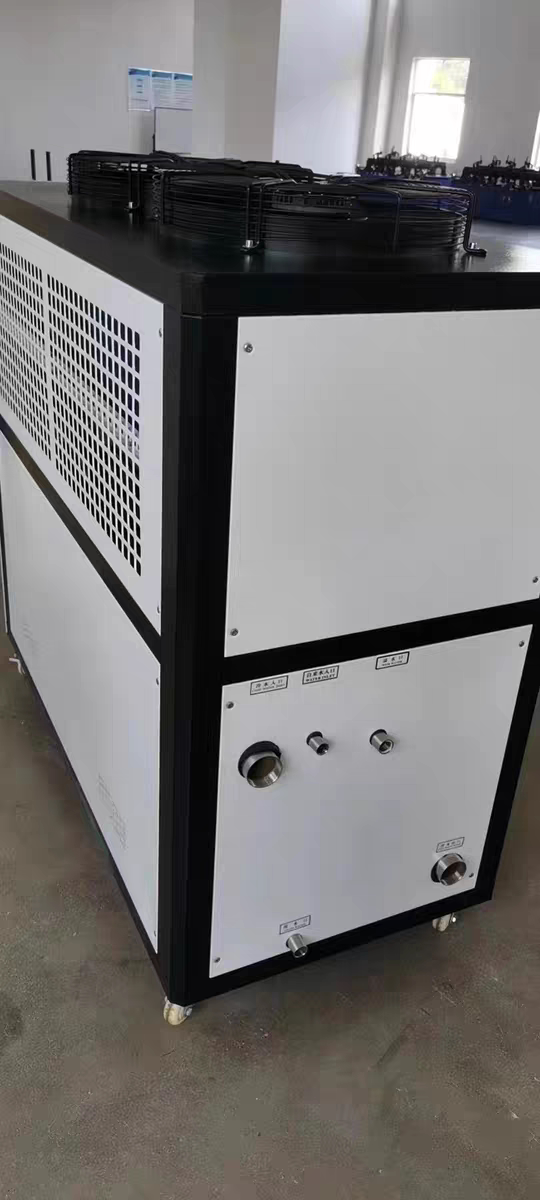

Product Photo

OEM Air Cooled Water Chiller Packaged Unit Scroll Compressor For Electroplating Process Cooling

OEM Air Cooled Water Chiller Packaged Unit Scroll Compressor For Electroplating Process Cooling

OEM Air Cooled Water Chiller Packaged Unit Scroll Compressor For Electroplating Process Cooling

OEM Air Cooled Water Chiller Packaged Unit Scroll Compressor For Electroplating Process Cooling

Certificate ( CE /ISO )

OEM Air Cooled Water Chiller Packaged Unit Scroll Compressor For Electroplating Process Cooling

Packing

OEM Air Cooled Water Chiller Packaged Unit Scroll Compressor For Electroplating Process Cooling

Project Case

OEM Air Cooled Water Chiller Packaged Unit Scroll Compressor For Electroplating Process Cooling

FAQ
Q1: Who is Zhengzhou Hailos Refrigeration Equipment Co.,ltd?
A1: We are a professional factory specializing in R&D, production and export of precision air conditioners and industrial chillers, located in Zhengzhou, China. We focus on high-precision cooling equipment for data centers, laboratories, laser processing, electroplating, battery factories, medical rooms and industrial production lines. All units are strictly tested before delivery, with complete international certifications for global market sales.
Q2: What is your MOQ (Minimum Order Quantity)?
A2: 1 unit for standard models is acceptable; for customized non-standard machines, MOQ depends on configuration. Distributors with bulk orders get extra factory discount.
Q3: Do you accept factory inspection?

A3: Yes, warm welcome customers to visit our workshop and test equipment on site. We support live video factory tour if you cannot come to China temporarily.

Q4: Where are Hailos precision air conditioners widely used?
A4: Server data room, communication base station, medical lab, testing laboratory, battery workshop, optical equipment room, clean room, electronic manufacturing workshop, industrial control cabinet cooling.
Q5: Can precision air conditioner work all year round without shutdown?
A5: Yes. Our precision cooling units adopt heavy-duty scroll compressor, EC energy-saving fan and independent control system, designed for 24-hour non-stop operation all year long, low failure rate.
Q6: Can I adjust temperature and humidity remotely?
A6: Standard models support Modbus communication to connect with monitoring system; optional WiFi remote control module for mobile phone real-time parameter checking, alarm reminder and parameter modification.
Q7: What refrigerants do you use for precision AC?
A7: Mainly eco-friendly R410A, R134a; we can replace with R32, R290 low-GWP refrigerants to meet local environmental regulations in your country.
Q8: Do you support OEM / ODM customized service?
A8: Yes, full OEM & ODM service available: custom unit size, voltage (380V/220V/415V 50/60Hz), brand logo, control panel language (English, Spanish, Russian, Vietnamese), special refrigerant, remote monitoring system, cabinet color. We can design new model drawing based on your working conditions.
Q9: Do you provide technical drawing and parameter sheet?
A9: Yes. After confirming the model, we supply dimension drawing, technical datasheet, wiring diagram, installation manual in English PDF files for your project design.
Q10: Can you supply spare parts separately?
A10: Yes, we offer all replacement spare parts: compressor, fan motor, controller, filter, expansion valve, sensor.
