5500 CFM Cooling Water Server Room CRAC Unit PAC Aircond Precision Air Conditioner
5500 CFM Cooling Water Server Room CRAC Unit PAC Aircond Precision Air Conditioner
5500 CFM Cooling Water Server Room CRAC Unit PAC Aircond Precision Air Conditioner
5500 CFM Cooling Water Server Room CRAC Unit PAC Aircond Precision Air Conditioner
5500 CFM Cooling Water Server Room CRAC Unit PAC Aircond Precision Air Conditioner
5500 CFM Cooling Water Server Room CRAC Unit PAC Aircond Precision Air Conditioner
5500 CFM Cooling Water Server Room CRAC Unit PAC Aircond Precision Air Conditioner
5500 CFM Cooling Water Server Room CRAC Unit PAC Aircond Precision Air Conditioner
Specifications
External dimensions (mm) :
600*1200*2000
Power supply (V) :
380/50HZ
Price :
$3000~$8000
Air volume (m³/h) :
5500
Electric heating power (kW) :
3
Refrigerant :
R410A
Humidity control range (RH%) :
45-75
Electric heating type :
PTC
Humidifier type :
wet film
MOQ :
1
Supply Ability :
10 sets /month
Temperature control range (°C) :
17-30
Compressor type :
Scroll compressor
Unit weight (Kg) :
290
Brand Name :
Hailos
Delivery Time :
5-8 weeks
Certification :
ISO、CE
Model Number :
Cooling water
Packaging Details :
wooden cartons
Cooling capacity (kW) :
26
Operating mode :
Constant temperature and humidity type
Payment Terms :
T/T
Remote control system interface :
RS485
Indoor unit model :
S25
Description

Downflow Cooling Water Precision Air Conditioner EC Fan Design for Equipment Room

Product Introduction

This water-cooled downflow precision air conditioner is specially developed for equipment rooms and server rooms with EC fans. Adopting underfloor downflow air supply, it sends cool air straight to IT racks to remove local hotspots. Its EC brushless fan supports stepless speed adjustment per actual heat load, greatly saving energy and reducing operating noise. Optimized cooling coil ensures precise ±1℃ temperature and ±5%RH humidity control. With Modbus/BACnet communication available for centralized monitoring, the unit reliably protects sensitive electronic equipment running continuously.

Custom- Made Welcome

Support 220V/380V 60Hz customization for Peru, Chile, and Mexico markets.

Technical Parameters
No. name Model parameters
1 Unit performance Indoor unit model S25
2 Air volume (m³/h) 5500
3 Cooling capacity (kW) 26
4 Number of compressors (units) 1
5 Operating mode Constant temperature and humidity type
6 Compressor type Scroll compressor
7 External static pressure (Pa) 30
8 Power supply (V) 380/50HZ
9 refrigerant R410A
10 Expansion valve Thermostatic expansion valve
11 Electric heating type PTC
12 Electric heating power (kW) 3
13 Humidifier type wet film
14 Humidification rate (kg/h) 3
15 Humidification power (kW) 0.5
16 Temperature control range (°C) 17-30
17 Humidity control range (RH%) 45-75
18 Temperature control accuracy (°C) ±2
19 Humidity control accuracy (RH%) ±5
20 Indoor unit Evaporator type Copper tube with aluminum fins
21 air filter Primary effect
22 Indoor fan type AC
23 External dimensions (mm) Width 600
24 deep 1200
25 high 2000
26 Unit weight (Kg) 290

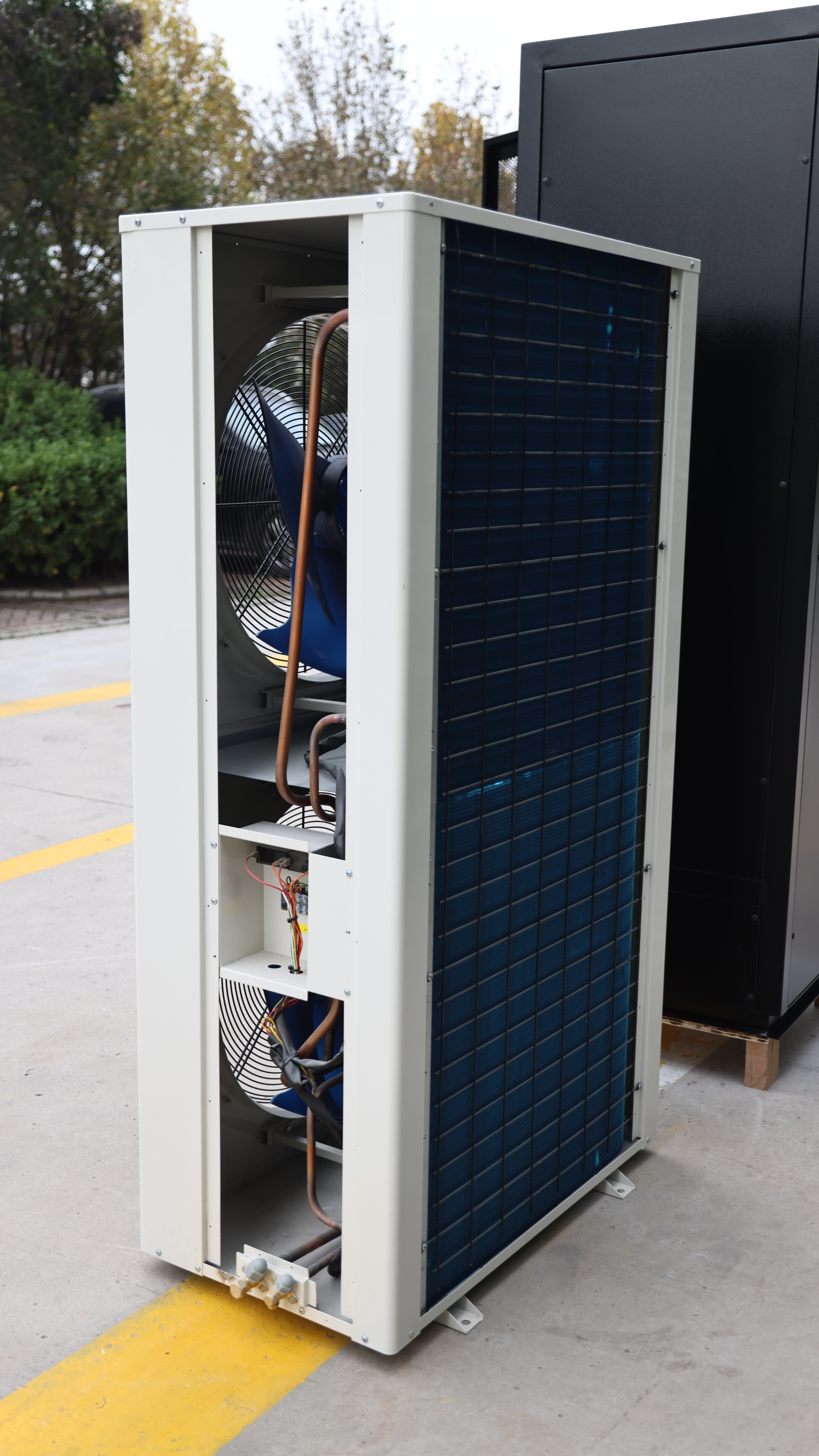

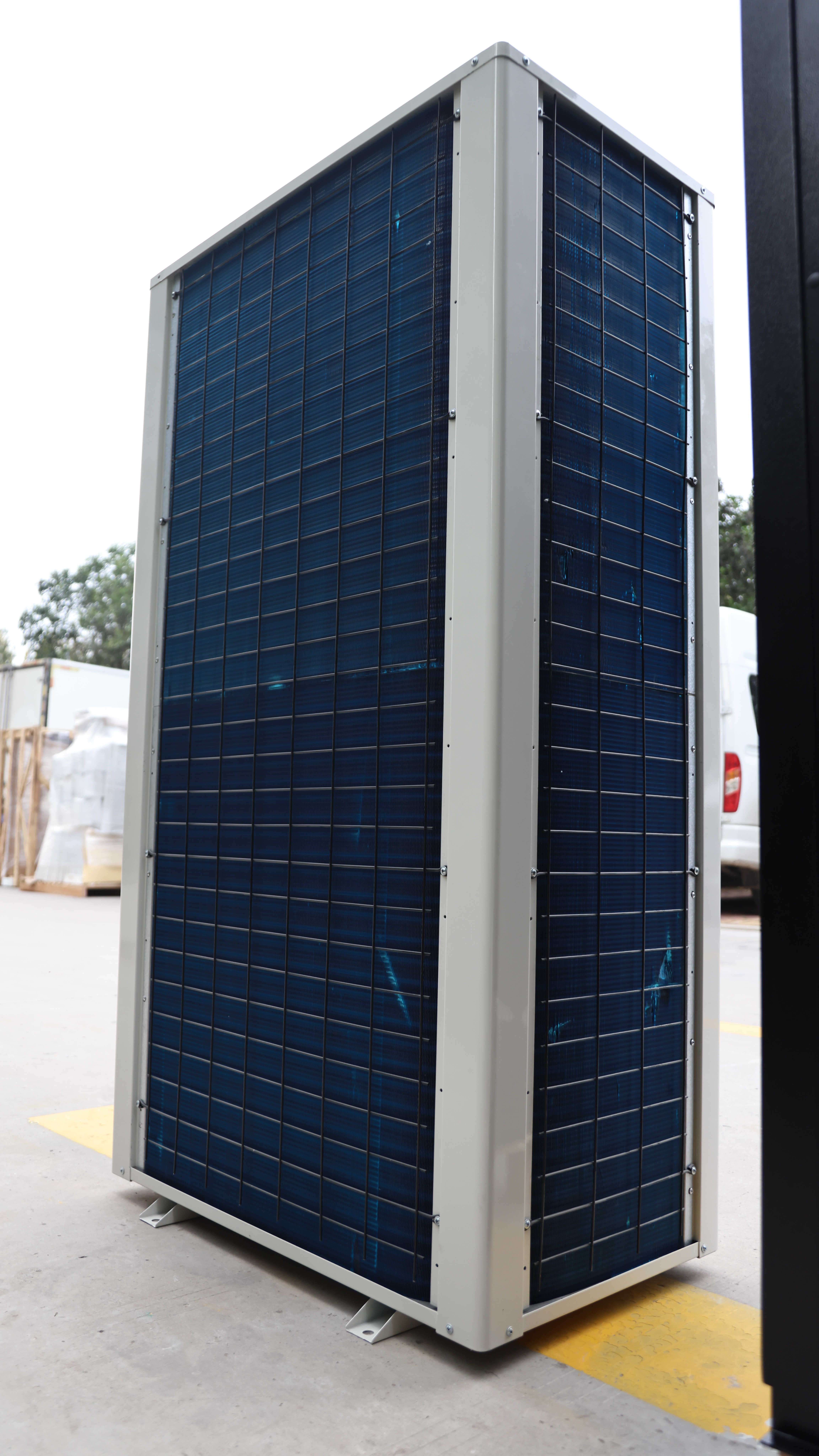

Product Photo

5500 CFM Cooling Water Server Room CRAC Unit PAC Aircond Precision Air Conditioner

5500 CFM Cooling Water Server Room CRAC Unit PAC Aircond Precision Air Conditioner

5500 CFM Cooling Water Server Room CRAC Unit PAC Aircond Precision Air Conditioner

5500 CFM Cooling Water Server Room CRAC Unit PAC Aircond Precision Air Conditioner

Certificate ( CE /ISO )

5500 CFM Cooling Water Server Room CRAC Unit PAC Aircond Precision Air Conditioner

Packing

5500 CFM Cooling Water Server Room CRAC Unit PAC Aircond Precision Air Conditioner

Project Case

5500 CFM Cooling Water Server Room CRAC Unit PAC Aircond Precision Air Conditioner

FAQ
Q1: Who is Zhengzhou Hailos Refrigeration Equipment Co.,ltd?
A1: We are a professional factory specializing in R&D, production and export of precision air conditioners and industrial chillers, located in Zhengzhou, China. We focus on high-precision cooling equipment for data centers, laboratories, laser processing, electroplating, battery factories, medical rooms and industrial production lines. All units are strictly tested before delivery, with complete international certifications for global market sales.
Q2: What is your MOQ (Minimum Order Quantity)?
A2: 1 unit for standard models is acceptable; for customized non-standard machines, MOQ depends on configuration. Distributors with bulk orders get extra factory discount.
Q3: Do you accept factory inspection?

A3: Yes, warm welcome customers to visit our workshop and test equipment on site. We support live video factory tour if you cannot come to China temporarily.

Q4: Where are Hailos precision air conditioners widely used?
A4: Server data room, communication base station, medical lab, testing laboratory, battery workshop, optical equipment room, clean room, electronic manufacturing workshop, industrial control cabinet cooling.
Q5: Can precision air conditioner work all year round without shutdown?
A5: Yes. Our precision cooling units adopt heavy-duty scroll compressor, EC energy-saving fan and independent control system, designed for 24-hour non-stop operation all year long, low failure rate.
Q6: Can I adjust temperature and humidity remotely?
A6: Standard models support Modbus communication to connect with monitoring system; optional WiFi remote control module for mobile phone real-time parameter checking, alarm reminder and parameter modification.
Q7: What refrigerants do you use for precision AC?
A7: Mainly eco-friendly R410A, R134a; we can replace with R32, R290 low-GWP refrigerants to meet local environmental regulations in your country.
Q8: Do you support OEM / ODM customized service?
A8: Yes, full OEM & ODM service available: custom unit size, voltage (380V/220V/415V 50/60Hz), brand logo, control panel language (English, Spanish, Russian, Vietnamese), special refrigerant, remote monitoring system, cabinet color. We can design new model drawing based on your working conditions.
Q9: Do you provide technical drawing and parameter sheet?
A9: Yes. After confirming the model, we supply dimension drawing, technical datasheet, wiring diagram, installation manual in English PDF files for your project design.
Q10: Can you supply spare parts separately?
A10: Yes, we offer all replacement spare parts: compressor, fan motor, controller, filter, expansion valve, sensor.
