Rackmount Computer Room Air Handling Precision Cooling Unit AC For Colocation Data Center
Rackmount Computer Room Air Handling Precision Cooling Unit AC For Colocation Data Center
Rackmount Computer Room Air Handling Precision Cooling Unit AC For Colocation Data Center
Rackmount Computer Room Air Handling Precision Cooling Unit AC For Colocation Data Center
Rackmount Computer Room Air Handling Precision Cooling Unit AC For Colocation Data Center
Rackmount Computer Room Air Handling Precision Cooling Unit AC For Colocation Data Center
Rackmount Computer Room Air Handling Precision Cooling Unit AC For Colocation Data Center
Rackmount Computer Room Air Handling Precision Cooling Unit AC For Colocation Data Center
Specifications
Delivery Time :
5-8 weeks
External dimensions (mm) :
2000*1000*1900
Power supply (V) :
380/50HZ
Model Number :
S99
Air volume (m³/h) :
24000
Price :
$3000~$8000
Packaging Details :
wooden cartons
Compressor type :
Scroll compressor
Unit weight (Kg) :
1000
Supply Ability :
10 sets /month
Electric heating power (kW) :
30
Refrigerant :
R410A
Humidity control range (RH%) :
45-75
Payment Terms :
T/T
Electric heating type :
PTC
Humidifier type :
wet film
Temperature control range (°C) :
17-30
Certification :
ISO、CE
Cooling capacity (kW) :
104.6
MOQ :
1
Operating mode :
Constant temperature and humidity type
Remote control system interface :
RS485
Brand Name :
Hailos
Indoor unit model :
S99
Description

Compact Rack Mount Precision AC Unit Front Blowing Cooling For Micro Module Colocation Data Center

Product Introduction
Facing the heat dissipation points of large and high-density equipment rooms, our room-level precision air conditioning series provides professional and efficient cooling solutions. Compatible with air-cooled direct expansion and chilled water refrigeration methods, the product can be freely combined with various functional configurations to adapt to different load rates and environmental conditions of data centers. With excellent heat exchange performance and systematic air circulation design, it fully meets the continuous high-load cooling demands of data centers and realizes efficient energy utilization to reduce PUE indicators.

Applications

Large Enterprise Data Centers (Non-Raised Floor)

Co-location Facilities (Colocation)

Private Cloud Infrastructure

Disaster Recovery & Backup Sites

High-Performance Computing (HPC) Centers

Custom- Made Welcome

Support 220V/380V 60Hz customization for Peru, Chile, and Mexico markets.

Technical Parameters
No. name Model parameters
1 Unit performance Indoor unit model S99
2 Air volume (m³/h) 24000
3 Cooling capacity (kW) 104.6
4 Number of compressors (units) 2
5 Operating mode Constant temperature and humidity type
6 Compressor type Scroll compressor
7 External static pressure (Pa) 30
8 Power supply (V) 380/50HZ
9 refrigerant R410A
10 Expansion valve Thermostatic expansion valve
11 Electric heating type PTC
12 Electric heating power (kW) 30
13 Humidifier type wet film
14 Humidification rate (kg/h) 13
15 Humidification power (kW) 0.5
16 Temperature control range (°C) 17-30
17 Humidity control range (RH%) 45-75
18 Temperature control accuracy (°C) ±2
19 Humidity control accuracy (RH%) ±5
20 Indoor unit Evaporator type Copper tube with aluminum fins
21 air filter Primary effect
22 Indoor fan type AC
23 External dimensions (mm) Width 2000
24 deep 1000
25 high 1900
26 Unit weight (Kg) 1000

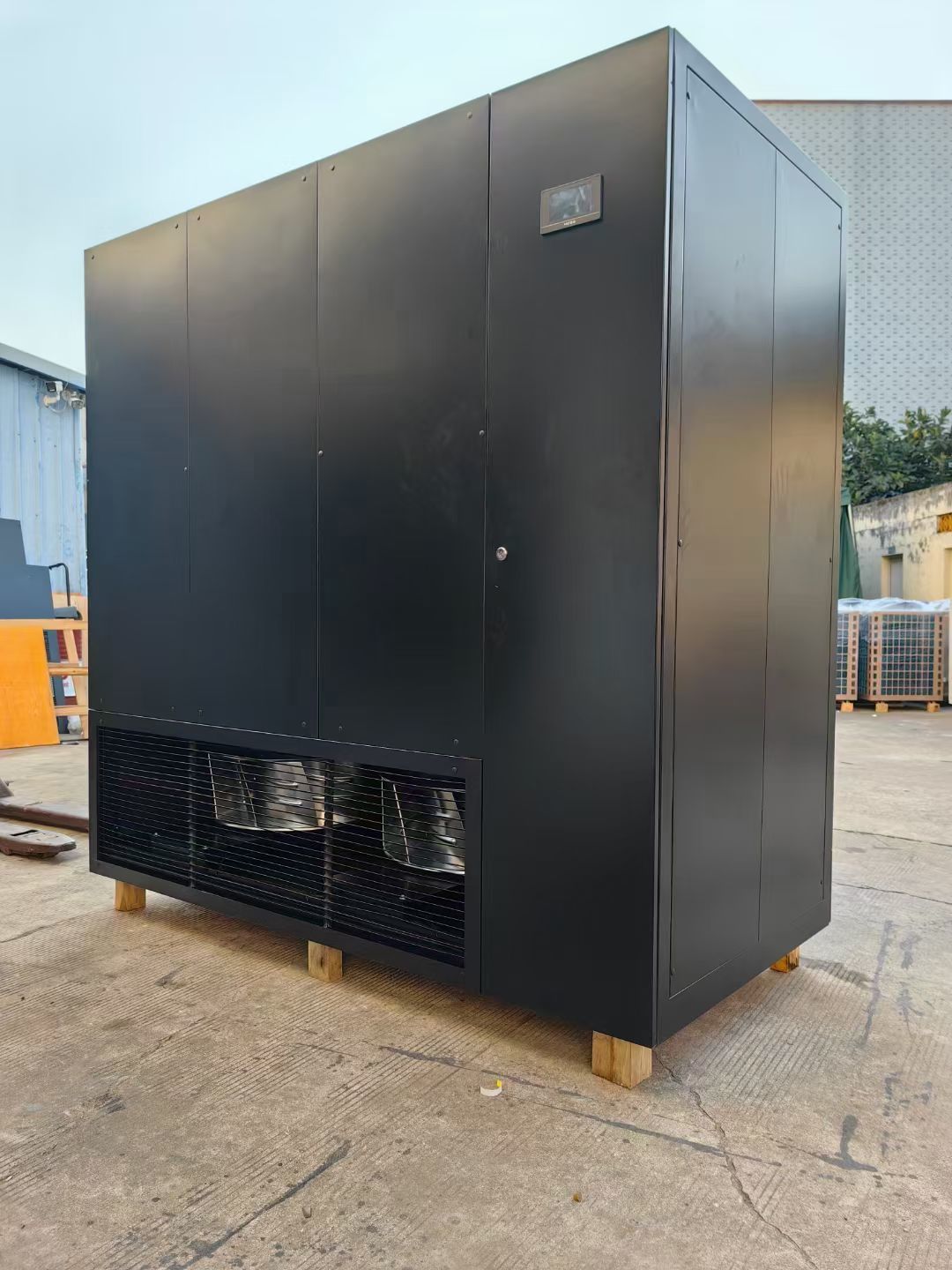

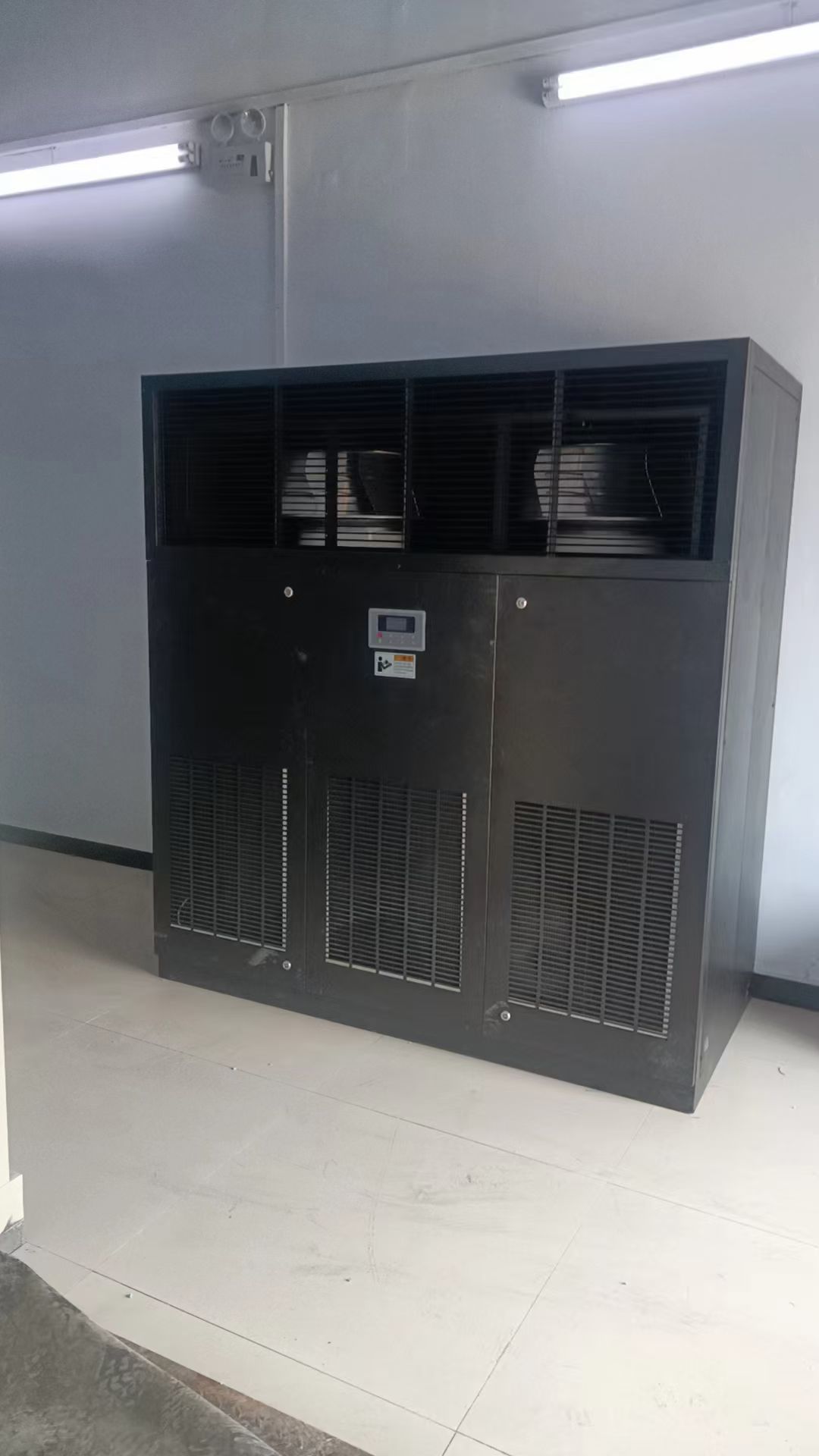

Product Photo

Rackmount Computer Room Air Handling Precision Cooling Unit AC For Colocation Data Center

Rackmount Computer Room Air Handling Precision Cooling Unit AC For Colocation Data Center

Rackmount Computer Room Air Handling Precision Cooling Unit AC For Colocation Data Center

Rackmount Computer Room Air Handling Precision Cooling Unit AC For Colocation Data Center

Certificate ( CE /ISO )

Rackmount Computer Room Air Handling Precision Cooling Unit AC For Colocation Data Center

Packing

Rackmount Computer Room Air Handling Precision Cooling Unit AC For Colocation Data Center

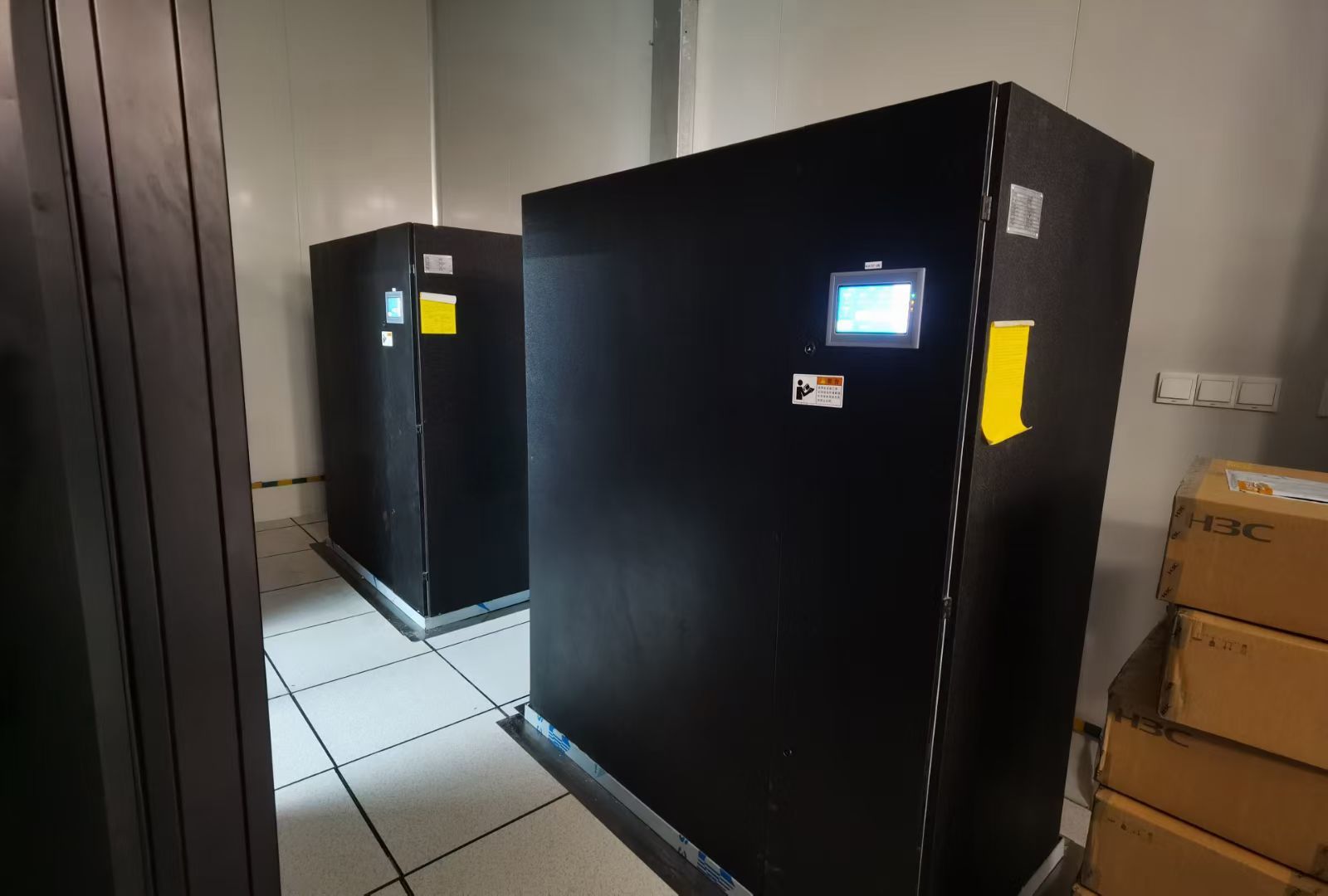

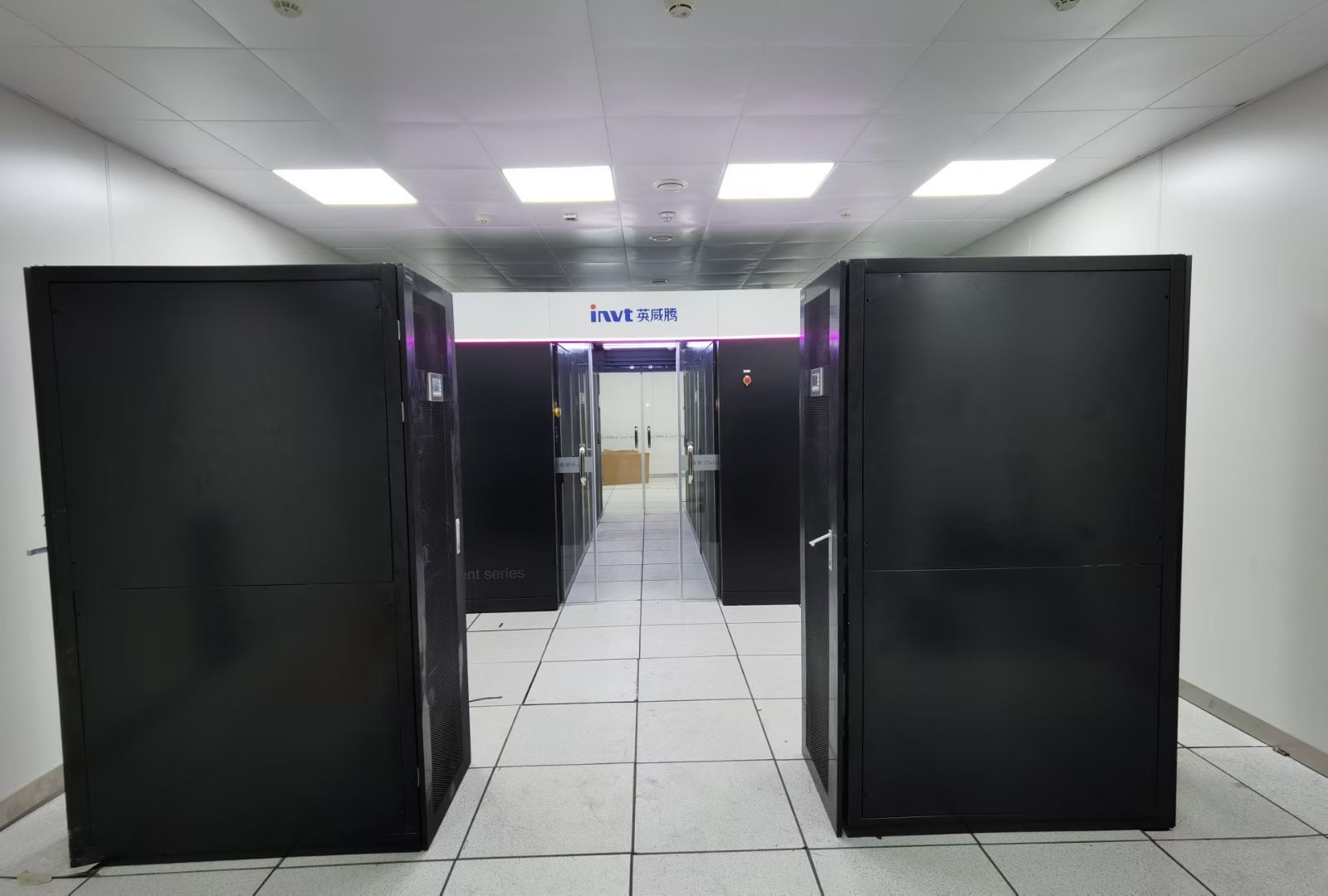

Project Case

Rackmount Computer Room Air Handling Precision Cooling Unit AC For Colocation Data Center

FAQ
Q1: Who is Zhengzhou Hailos Refrigeration Equipment Co.,ltd?
A1: We are a professional factory specializing in R&D, production and export of precision air conditioners and industrial chillers, located in Zhengzhou, China. We focus on high-precision cooling equipment for data centers, laboratories, laser processing, electroplating, battery factories, medical rooms and industrial production lines. All units are strictly tested before delivery, with complete international certifications for global market sales.
Q2: What is your MOQ (Minimum Order Quantity)?
A2: 1 unit for standard models is acceptable; for customized non-standard machines, MOQ depends on configuration. Distributors with bulk orders get extra factory discount.
Q3: Do you accept factory inspection?

A3: Yes, warm welcome customers to visit our workshop and test equipment on site. We support live video factory tour if you cannot come to China temporarily.

Q4: Where are Hailos precision air conditioners widely used?
A4: Server data room, communication base station, medical lab, testing laboratory, battery workshop, optical equipment room, clean room, electronic manufacturing workshop, industrial control cabinet cooling.
Q5: Can precision air conditioner work all year round without shutdown?
A5: Yes. Our precision cooling units adopt heavy-duty scroll compressor, EC energy-saving fan and independent control system, designed for 24-hour non-stop operation all year long, low failure rate.
Q6: Can I adjust temperature and humidity remotely?
A6: Standard models support Modbus communication to connect with monitoring system; optional WiFi remote control module for mobile phone real-time parameter checking, alarm reminder and parameter modification.
Q7: What refrigerants do you use for precision AC?
A7: Mainly eco-friendly R410A, R134a; we can replace with R32, R290 low-GWP refrigerants to meet local environmental regulations in your country.
Q8: Do you support OEM / ODM customized service?
A8: Yes, full OEM & ODM service available: custom unit size, voltage (380V/220V/415V 50/60Hz), brand logo, control panel language (English, Spanish, Russian, Vietnamese), special refrigerant, remote monitoring system, cabinet color. We can design new model drawing based on your working conditions.
Q9: Do you provide technical drawing and parameter sheet?
A9: Yes. After confirming the model, we supply dimension drawing, technical datasheet, wiring diagram, installation manual in English PDF files for your project design.
Q10: Can you supply spare parts separately?
A10: Yes, we offer all replacement spare parts: compressor, fan motor, controller, filter, expansion valve, sensor.
