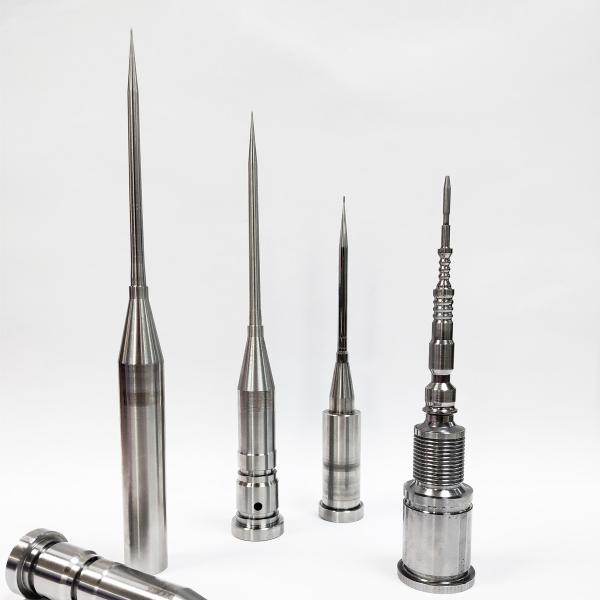

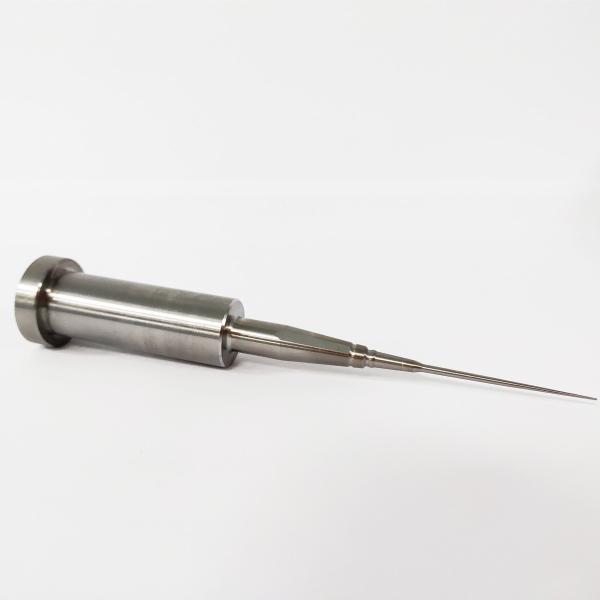

HRC 60 Bohler M330 Mold Core Pin with Customized Dimension for Plastic Injection Mould
HRC 60 Bohler M330 Mold Core Pin with Customized Dimension for Plastic Injection Mould
HRC 60 Bohler M330 Mold Core Pin with Customized Dimension for Plastic Injection Mould
HRC 60 Bohler M330 Mold Core Pin with Customized Dimension for Plastic Injection Mould
HRC 60 Bohler M330 Mold Core Pin with Customized Dimension for Plastic Injection Mould
HRC 60 Bohler M330 Mold Core Pin with Customized Dimension for Plastic Injection Mould
HRC 60 Bohler M330 Mold Core Pin with Customized Dimension for Plastic Injection Mould
HRC 60 Bohler M330 Mold Core Pin with Customized Dimension for Plastic Injection Mould
Specifications
Brand Name :
SENLAN
Certification :
ISO 9000
Place of Origin :
China
MOQ :
1Pcs
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
20000Pcs/Week
Delivery Time :
15Days
Packaging Details :
Coated with Anticorrosive Oil, Packed in Carton Box
Material :
Bohler M330
Hardness :
HRC60
Accuracy :
+/-0.002mm
Surface Treatment :
Polished, Tin, Ticn, Crn, DlC etc
Parts Name :
Mold Core Pin
Application :
Plastic Injection Mould
Standard :
JIS, DIN, En, ASTM, AISI
Design Software :
Auto Cad, Autocad/Ug/Solidworks, CAD
Dimension :
Customized
Processing :
CNC lathe, Grinding etc
Description
HRC 60 Bohler M330 Mold Core Pins For Pipetee Plastic Parts
High Temperature Resistance Bohler M330 Material Mold Core Pin

We offer a complete line of standard Mold Core Pins and have the engineering expertise to provide special and custom Mold Core Pins for both existing and new applications. Our custom tooling solutions help customers achieve improved productivity, enhanced quality performance, and reduced manufacturing costs.

Mold Core Pins used for creating holes in parts should be through-hardened rather than nitrided. While most pins and sprue-puller pins are nitrided with an exterior case hardness of 65 to 74 Rockwell C, Mold Core Pins typically have a hardness ranging from 40 to 55 Rc. The case hardening is typically only 0.001 to 0.007 inches deep and can be extremely brittle, potentially causing edge chipping during production.

Product Specifications
Place of Origin Dongguan, China
Product Name Mold Core Pin
Product Material 1.2344, 1.2312, Stavax, Bohler, SKD61, S136 etc
Size Customize
Machining Process WEDM, Grinding, EDM, QC
Accuracy +/-0.003mm
Brand Name Senlan
MOQ 1Pcs
OEM/ODM/Customized Available
Pricing Varies according to order quantity. Negotiable.
Packaging Details
  • Each piece wrapped with PE film
  • Placed into plastic box with foam pads
  • Locked and labeled
  • Heavily wrapped box
  • Carton or wooden case packaging
Our Advantages
  • Instant shipment & samples available for standard parts
  • Best quality materials & various sizes
  • Skilled engineers & advanced technology
  • Precise inspection processes
  • Favorable pricing
Frequently Asked Questions
Q1: What should we do if we receive defective products?
If you receive defective products, please send us photos. We will immediately report to our engineers and QC departments to resolve the issue as quickly as possible.
Q2: How do you pack the plastic mold parts?
For mold parts, we first coat them with anti-corrosive oil, then cover them with thin protective films, and finally pack them into fumigated wooden cases.
Q3: Is it possible to know the operation status of my products without visiting your company?
Yes, we provide detailed production schedules and send weekly reports with digital pictures and videos showing the machining progress.
Q4: How can you guarantee quality?
Our quality is ensured by advanced machine equipment, mature technology, and skilled workers. Our QC Department thoroughly checks each piece before every shipment.
