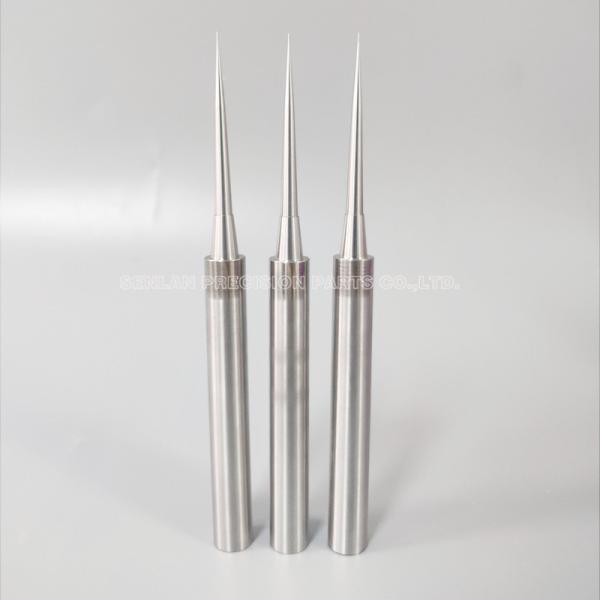

SS420 Mold Core Pins High Polished Mould Parts For Medical With 0.005 Tolerance

Senlan capabilities include but are not limited to:

• Special and custom mold core pins with high-strength and high-accuracy
• Hardened, tempered and grinded to tolerance m6, peak and chamfer turned
• Special and custom nitrided ejector pins & core pins with internal hardness: 40-45 HRC and surface hardness 900HV above
• High-speed steel ejector pins & core pins with minimum diameter of Φ0.4mm and maximum precision up to 0.002mm

• Sample Order and Small Order are acceptable
• Delivery methods: DHL, EMS, UPS or Fedex
• Located in manufacturing base of China - Dongguan city
• Custom design services available according to customer requirements

Tolerance: ±0.002mm (Depends on customer's requirements)

Drawing Format: PDF/DWG/DXF/IGS/STEP, etc

Packaging: Inner packing with recycle plastic box and anticorrosive oil, outer with sponge and PE bags, or as customer's requirements

Automobile parts, medical, daily necessities packaging, cosmetic packaging, etc.

Custom Mold Core Pin is made from the finest grade of SKD-61 hotwork die steel. The heads are hot forged and stress relieved for uniform grain flow and high tensile strength. The surface could be ion nitride coated to a hardness of HV 1000°±100°. The core of vacuumed pin could be hardened to HRC 52°±2°. Other steel options available. Our coating process produces an ideal combination of toughness and long life. The high surface finish reduces friction and increases pin service life. Tolerance can reach 0.005mm.

Website: www.precision-mouldparts.com

Main Products: SENLAN manufactures a full line of standard and customized ejector pins, punches, insert pins, cavity pins, core pins, mold core, and other mould accessories and die parts.

Senlan Precision Mould Parts Co., Ltd is a professional OEM die casting parts manufacturer providing tooling design, tooling fabrication, die casting, secondary process, precision machining, T6 treatment, finish treatment and assembling.
