Precision Core Pin for Pipette Tips Molds with Mirror Polish, High Precision, and M340 Material
Precision Core Pin for Pipette Tips Molds with Mirror Polish, High Precision, and M340 Material
Precision Core Pin for Pipette Tips Molds with Mirror Polish, High Precision, and M340 Material
Precision Core Pin for Pipette Tips Molds with Mirror Polish, High Precision, and M340 Material
Precision Core Pin for Pipette Tips Molds with Mirror Polish, High Precision, and M340 Material
Precision Core Pin for Pipette Tips Molds with Mirror Polish, High Precision, and M340 Material
Precision Core Pin for Pipette Tips Molds with Mirror Polish, High Precision, and M340 Material
Precision Core Pin for Pipette Tips Molds with Mirror Polish, High Precision, and M340 Material
Specifications
Brand Name :
SENLAN
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
1pcs
Price :
100-200USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
100pcs/week
Delivery Time :
12-15 work days
Packaging Details :
carton and plastic box
Material :
M340,1.2083
tolerance :
+/-0.003
Surface treatment :
Mirror Polish
Application :
Pipette Tips mold
Design software :
Pro-E, CAD, UG etc
Quality :
High Precision, Mirror Polish
Description

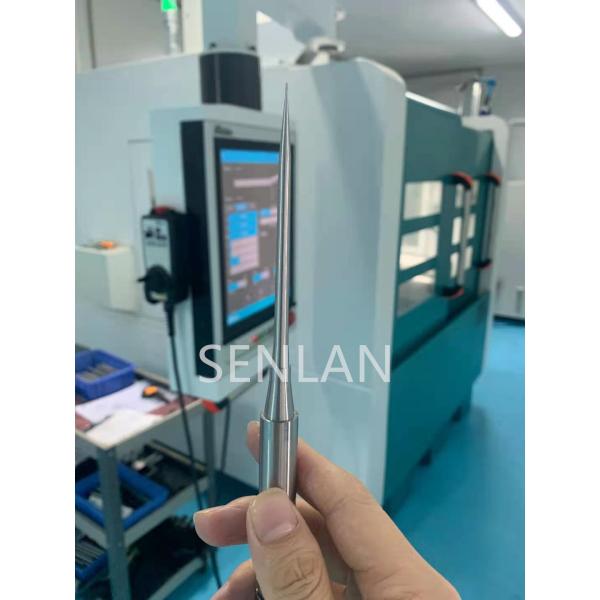

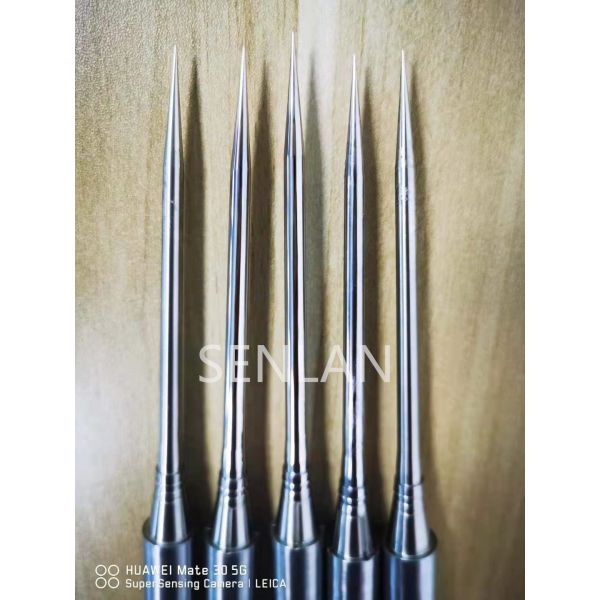

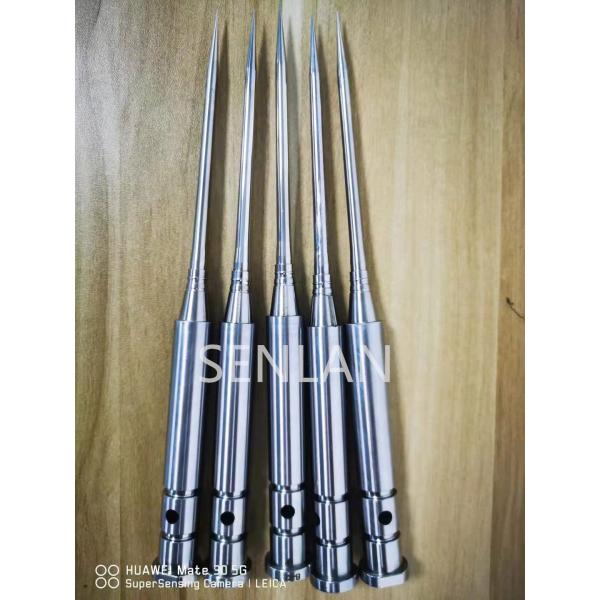

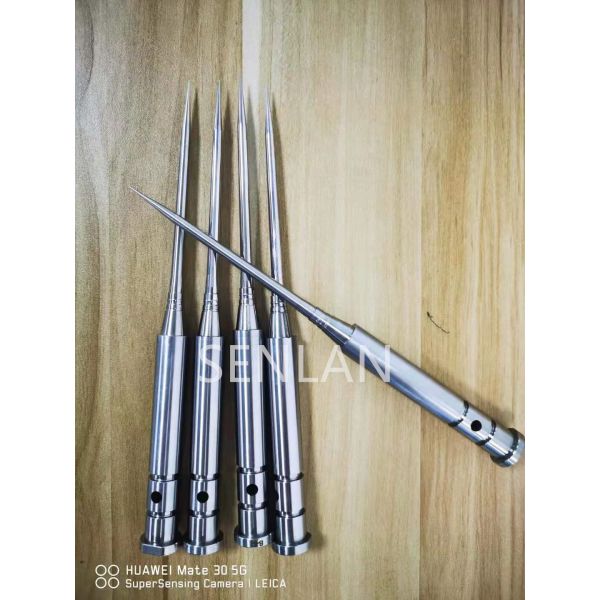

Precision Core Pin For Pipette Tips Molds Injection Molding Pins
Precision Core Pin For Pipette Tips TANNER Molds Injection Molding Pins with excellent surface finish and concentricity.
Medical Core Pins Specifications
Material: M340.STAVAX, 1.2083
Hardness: HRC54-56
Concentricity: 0.005mm
Tolerance: ±0.002mm
Surface Finish: Mirror Polishing
Cooling Hole: Above 2.0mm
Precision Core Pin for Pipette Tips Molds with Mirror Polish, High Precision, and M340 Material
Manufacturing Equipment List
Equipment Brand Model Tolerance Quantity Origin
CNC grinder ROLLOMATIC NP5 0.002MM 1 Switzerland
CNC Milling BISEN V-8 0.005mm 1 Taiwan
TCKEN TC-650 0.005mm 1 Taiwan
CNC Lathe TAKISAWA NEX-108 0.002mm 6 Japan
W/EDM SODICK AQ400LS 0.003mm 2 Japan
CHMER G435 0.005mm 1 Taiwan
EDM CREATOR CJ-235 0.005mm 4 Taiwan
Mirror EDM SODICK Sodick-AM30LS 0.003mm 2 Japan
MAKINO EDGE2 0.002mm 1 Japan
Desktop Lathe JINGCHENG YB-15 0.05mm 4 China
YB-25 0.05mm 2
OD Grinder HOTMAN FX-03 0.002mm 5 China
ID Grinder HOTMAN FX-05 0.002mm 3
CNC Grinder 0.002mm 3 China
Centeless Grinder HOTMAN FX-12S 0.001mm 2
Surface Grinder SHUGUANG 614 0.001mm 4 China
618 0.001mm 2
EDM Drilling ZENBANG ZB-03 0.01mm 1 Taiwan
Miller TOPINR AVA 0.01mm 2 Taiwan
Precision Core Pin for Pipette Tips Molds with Mirror Polish, High Precision, and M340 Material
Frequently Asked Questions
Where is your factory located? How can I visit there?
Our factory is located in NO.27, ShangLang Road, XiaBian District, Chang'an town, Dongguan China. All our clients from home or abroad are warmly welcomed to visit us at any time.
When can I get the quotation or the reply on your side?
The swift response will usually be taken within 4 hours after we got your inquiry or email. If you are very urgent, please let us know so that we will regard your inquiry priority.
Do you provide free samples?
Yes, we could offer some samples for free, but freight collect.
How can you ensure the quality of the parts that we ordered?
Firstly, the pre-testing will be done before every step. Secondly, we'll have the final checking for all the parts before the shipment. So believe that a strict quality control system will ensure you the high quality parts.
What will you do after sales?
We have after-sales service. When you receive our products, we will follow up and await your feedback. Any question related to our products, our experienced engineers are ready to help.
If you are interested, please do not hesitate to contact with us! Thank you!
