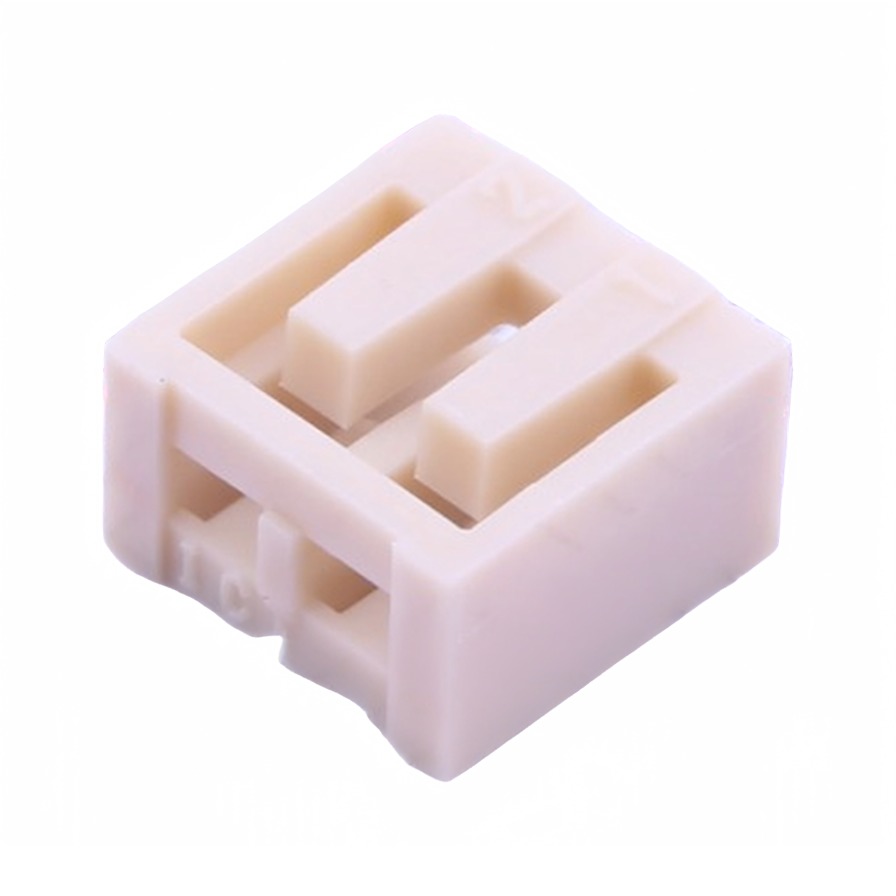

JST 2P-SCN
JST 2P-SCN
Specifications
Description :
Connector Housing 2 Position 2.5mm Pitch Single Row
Number of Rows :
1
Pitch :
2.5mm
Flame Retardant Rating :
UL94V-0
Number of PINs Per Row :
2
Delivery Time :
1 working day
Stock :
59994
Plastic Material :
PA66
Model Number :
2P-SCN
Holes Structure :
1x2P
Color :
Beige
Packaging Details :
P=2.5mm
Operating Temperature :
-25℃~+85℃
MOQ :
20
Brand Name :
2P-SCN
With Wings :
Without Fins
With Locker :
Non-Latching
Description

Product Overview

This 2.5 mm pitch multi-circuit board-in connector meets the needs for high-density mounting on printed circuit boards efficiently and economically. The connector can be used for VCRs, car stereo systems, audio products, and many other consumer-oriented electronic products.

Features:

  • Easy inserting contacts into housing
  • Secure mounting on printed circuit boards
  • Two types of contacts
Brand JST
Product Name SCN connector
Pitch 2.5 mm
Style Board-in Crimp style
RoHS Compliance RoHS2 compliance
Certifications UL Recognized E60389
Material PA 66, UL94V-0, ivory
Specification Value
Current rating 3 A AC/DC (AWG #22)
Voltage rating 250 V AC/DC
Temperature range -25C to +85C (including temperature rise in applying electrical current)
Insulation resistance 1,000 M min.
Withstanding voltage 800 VAC/minute
Applicable wire AWG #28 to #22
Applicable PC board thickness 1.2 mm, 1.6 mm
Dimensional unit mm
Contact Type Model No. Applicable Wire (AWG#) Insulation O.D. (mm) Finish RoHS Compliance
Type A SCN-001T-P1.0 28 to 22 0.91 - 1.70 Tin-plated (reflow treatment) Yes
Type B SCN-001T-1.0K 28 to 22 0.91 - 1.70 Tin-plated (reflow treatment) Yes
Circuits Model No. Dimension A (mm) Dimension B (mm) Qty / bag
2 2P-SCN 2.5 6.5 1,000
3 3P-SCN 5.0 9.0 1,000
4 4P-SCN 7.5 11.5 1,000
5 5P-SCN 10.0 14.0 1,000
6 6P-SCN 12.5 16.5 1,000
7 7P-SCN 15.0 19.0 1,000
8 8P-SCN 17.5 21.5 1,000
9 9P-SCN 20.0 24.0 1,000
10 10P-SCN 22.5 26.5 1,000
11 11P-SCN 25.0 29.0 1,000
12 12P-SCN 27.5 31.5 1,000
13 13P-SCN 30.0 34.0 1,000
14 14P-SCN 32.5 36.5 1,000
15 15P-SCN 35.0 39.0 1,000
16 16P-SCN 37.5 41.5 1,000
