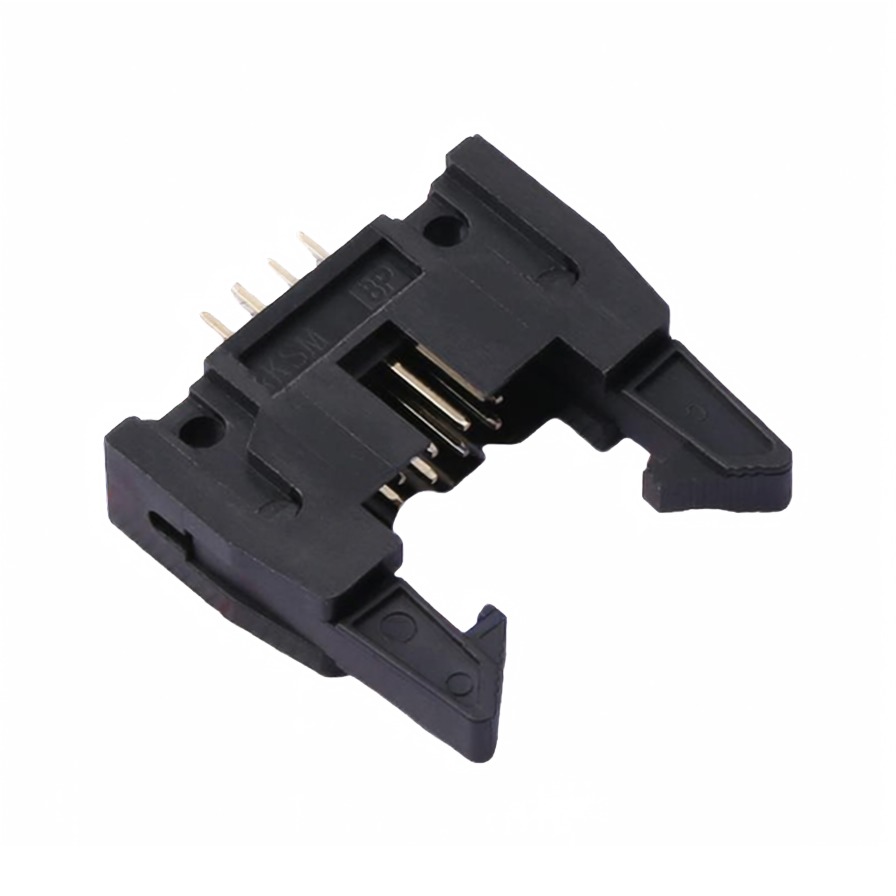

ZHOURI DC2-2.54-8PAS
ZHOURI DC2-2.54-8PAS
Specifications
Mounting Type :
Through Hole
Contact Plating :
Gold
Connector Type :
IDC Header
Description :
Connector Through Hole 8 position 2.54mm
MOQ :
168
Number of PINs Per Row :
4
Brand Name :
ZHOURI
Stock :
840
Contact Material :
Brass
Model Number :
DC2-2.54-8PAS
Number of Rows :
2
Color :
Black
Packaging Details :
Through Hole,P=2.54mm
Pitch :
2.54mm
Delivery Time :
7-12 working days
Row Spacing :
2.54mm
Current Rating :
1.5A
Operating Temperature :
-40℃~+105℃
Description

Product Overview

This product is a connector with a 2.54mm pitch, designed for various electronic applications. It features a PBT insulator with 25% glass filling and brass contacts with gold plating, ensuring reliable electrical performance and durability.

Product Attributes

  • Brand: KSM
  • Origin: Shanghai
  • Material (Insulator): 25% Glass filled PBT (UL 94V-0)
  • Material (Contact): Brass
  • Surface Coating: GOLD
  • Certifications: UL 94V-0, ROHS

Technical Specifications

Number of ContactsDimension A (mm)Dimension B (mm)Dimension C (mm)Current Rating (Amps)Dielectric Withstanding Voltage (AC 1000V for 1 Minute)Insulator Resistance (M Min)Contact Resistance (m Max)Operating Temperature (C)
65.0813.026.921.5AC 1000V for 1 Minute1000 M Min50 m Max -40 ~ +105
87.6215.529.46
1010.1618.032.0
1415.2423.137.0
1617.7825.639.4
2022.8630.744.5
2427.8635.7850.58
2630.4838.452.2
3035.5643.457.28
3440.6448.5562.4
4048.2656.2570.0
5060.9668.882.0
6073.6681.895.6
6478.7486.8100.58
