36v 48v 500w 18 Wheel Hub Motor Kit For Electric Bike / Scooter
36v 48v 500w 18 Wheel Hub Motor Kit For Electric Bike / Scooter
36v 48v 500w 18 Wheel Hub Motor Kit For Electric Bike / Scooter
36v 48v 500w 18 Wheel Hub Motor Kit For Electric Bike / Scooter
36v 48v 500w 18 Wheel Hub Motor Kit For Electric Bike / Scooter
36v 48v 500w 18 Wheel Hub Motor Kit For Electric Bike / Scooter
36v 48v 500w 18 Wheel Hub Motor Kit For Electric Bike / Scooter
36v 48v 500w 18 Wheel Hub Motor Kit For Electric Bike / Scooter
36v 48v 500w 18 Wheel Hub Motor Kit For Electric Bike / Scooter
36v 48v 500w 18 Wheel Hub Motor Kit For Electric Bike / Scooter
36v 48v 500w 18 Wheel Hub Motor Kit For Electric Bike / Scooter
36v 48v 500w 18 Wheel Hub Motor Kit For Electric Bike / Scooter
36v 48v 500w 18 Wheel Hub Motor Kit For Electric Bike / Scooter
36v 48v 500w 18 Wheel Hub Motor Kit For Electric Bike / Scooter
Specifications
Brand Name :
NC
Model Number :
nc2003
Certification :
CE
Place of Origin :
CHINA , JIANGSU CHANGZHOU
MOQ :
5
Price :
usd 105 /pc
Delivery Time :
7 working days afterpayment
Packaging Details :
carton with foma
Stator Material :
Aluminium alloy
Power :
500w/1000w
lithium battery :
48v 10.4 ah , 12ah , 15ah ,17 ah , 20ah
throttle :
twist or thumb
wheel size :
18inch
speed :
35-55km/h
voltage :
48v
warranty :
two years
Description

36v 48v 500w 18" Electric Bicycle Scooter Wheel Hub Motor kit for Electric bike

This 18inch rim can be make 500w/1000w hub motor .

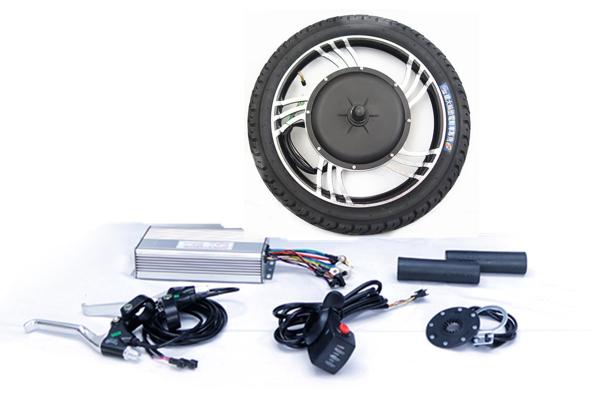

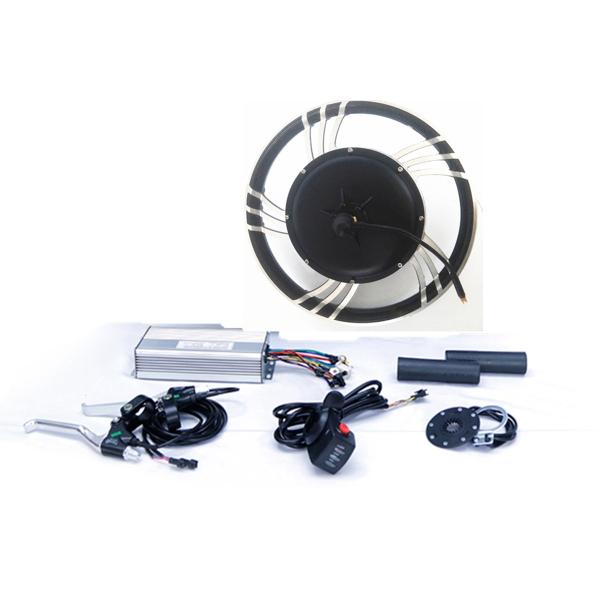

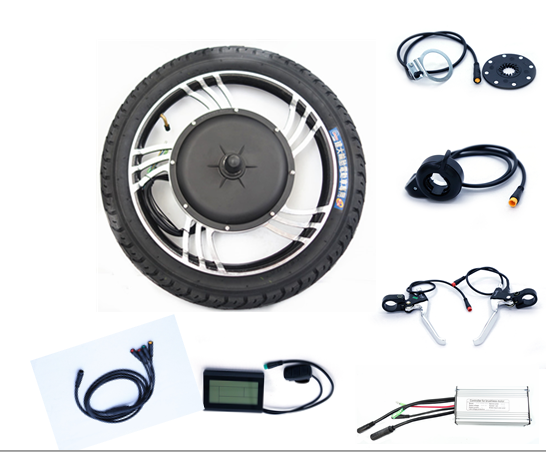

1. Detail show for 36v 48v 500w 18" Electric Bicycle Scooter Wheel Hub Motor kit for Electric bike

nomal 18inch hub motor ebike kit

36v 48v 500w 18

water proof cable 18inch 500w /1000w electric bicycle hub motor wheel kit

36v 48v 500w 18

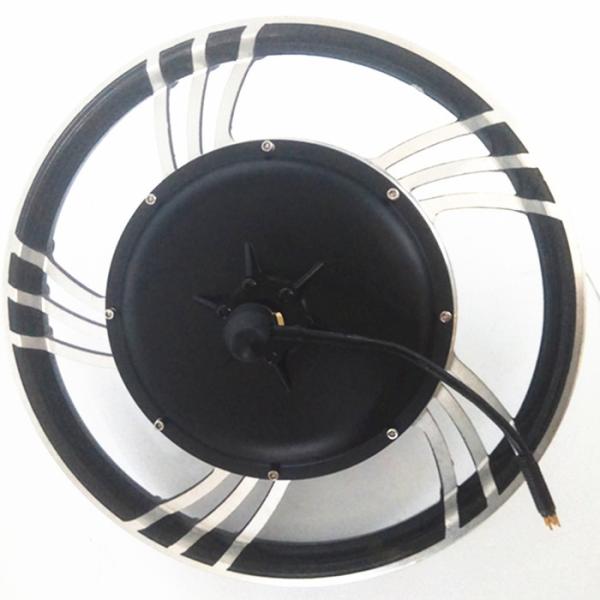

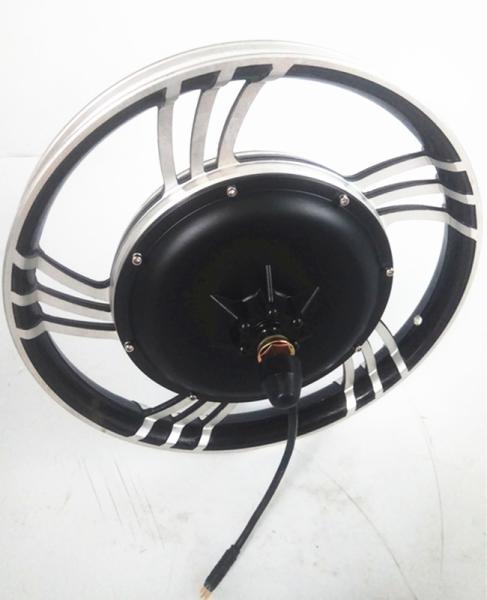

2. 48v 500w/ 1000w brushless gearless hub motor

36v 48v 500w 18

3. detail specification for 48v 500w hub motor

Motor power 500w
Axle 10mm* 14mm
Type Front or rear motor to choose
Voltage 48v
Magnet Height 24mm
Design Brushless gearless dc
Windings 8*7
Waterproof grade IP54
RPM 470
Cable size 1.5mm2
Max torque 30N.M
Max Efficiency >=86%
Open size 100mm for front motor, 135mm for rear motor
Wheel size 16-28inch
Hall sensor Optional
Hall sensor angle 120 degrees
Integrate speed sensor Optional
Brake Disc brake
Surface color Dark black/ sliver white
N.W 5.6kgs
Warranty 2 years

4. Application for 18inch hub motor electric bike /scooter motor

36v 48v 500w 18

6.Packing size of the 18inch hub motor wheel kit

36v 48v 500w 18
