Brushless Electric Bike Front Wheel Hub Motor 5000W 48v-96v , 190N.M Max Torque
Brushless Electric Bike Front Wheel Hub Motor 5000W 48v-96v , 190N.M Max Torque
Brushless Electric Bike Front Wheel Hub Motor 5000W 48v-96v , 190N.M Max Torque
Brushless Electric Bike Front Wheel Hub Motor 5000W 48v-96v , 190N.M Max Torque
Brushless Electric Bike Front Wheel Hub Motor 5000W 48v-96v , 190N.M Max Torque
Brushless Electric Bike Front Wheel Hub Motor 5000W 48v-96v , 190N.M Max Torque
Specifications
Brand Name :
OEM
Model Number :
NC5000
Certification :
CE
Place of Origin :
CHINA
MOQ :
10
Price :
Negotiable
Payment Terms :
T/T, Paypal , Alibaba Trade assurance
Supply Ability :
2,000pcs per month
Delivery Time :
15 working days after received your payment
Packaging Details :
carton box with foam, package size : two motors in one box, the size is48cm x 28cm x 28cm
motor power :
5000watts
voltage :
48v-96v
max phase current :
300Amp
pack weight :
12.75kgs
magnet height :
50mm
max torque :
190N.M
drop out :
149mm
temperature :
KTY82/122
Description

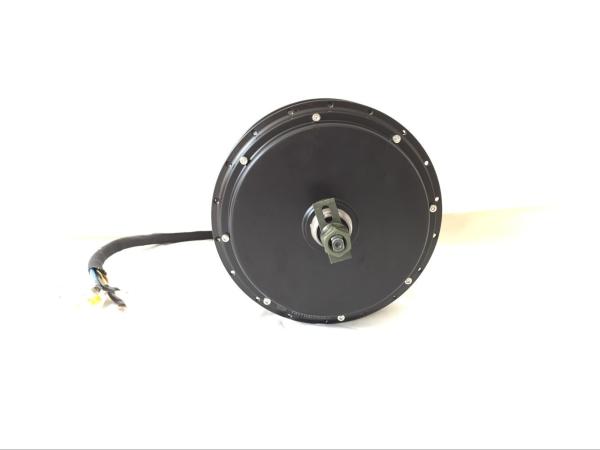

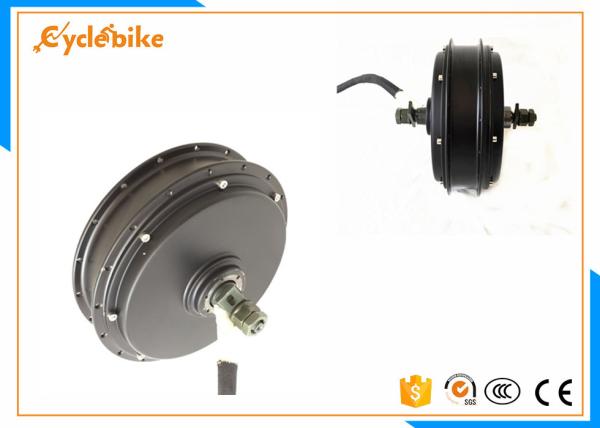

NC5000 100km/h speed high torque 48v-96v 5000W electric bike hub motor details :

Model NC5000
Motor power 5000w
Axle 10mm* 16mm

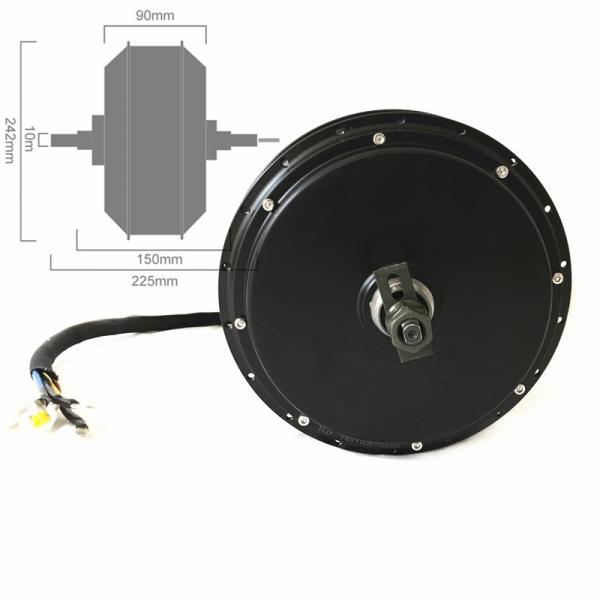

motor diameter 244mm
Voltage 48v-96v
Magnet Height 50mm
stator aluminum alloy
windings 700rpm @72v, 4Tx20
waterproof grade IP54
KV 3T motor is 12.5KV , 4T motor is 9KV.
numbers of pole pairs 16
peak phase current 300amp
Max torque > 190N.m
Max Efficiency 89.80%
drop out 149mm
Numbers of Motor phase 3 pcs
Hall sensor 2 sets, one is for spare
hall sensor phasing 120 degrees
cross section of phase wire 10mm2
temperature sensor KTY82/122
color dark black
N.W 12.75kgs

Brushless Electric Bike Front Wheel Hub Motor 5000W 48v-96v , 190N.M Max TorqueBrushless Electric Bike Front Wheel Hub Motor 5000W 48v-96v , 190N.M Max Torque

Description:

5000w electric bike hub motor

  • Low noise
  • Electricity saving, 89%
  • High torque, 190N.M
  • High strength
  • High safety coefficient, high efficiency
  • Long service life
  • Not easy to be hot
  • Big power
  • Warranty : 2 years
  • OEM

Brushless Electric Bike Front Wheel Hub Motor 5000W 48v-96v , 190N.M Max Torque

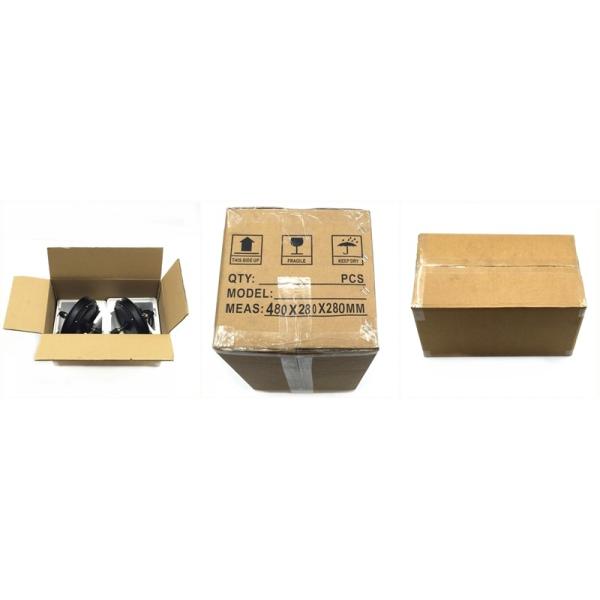

l PRODUCT PACKING

  • Material : carton with foam
  • package size : two motors in one box, the size is48cm x 28cm x 28cm
  • gross weight : 27kgs.

Brushless Electric Bike Front Wheel Hub Motor 5000W 48v-96v , 190N.M Max Torque

Brushless Electric Bike Front Wheel Hub Motor 5000W 48v-96v , 190N.M Max TorqueBrushless Electric Bike Front Wheel Hub Motor 5000W 48v-96v , 190N.M Max Torque
