High Speed Bicycle Electric Hub Motor 36v 500w 100mm / 135mm Drop Out
High Speed Bicycle Electric Hub Motor 36v 500w 100mm / 135mm Drop Out
High Speed Bicycle Electric Hub Motor 36v 500w 100mm / 135mm Drop Out
High Speed Bicycle Electric Hub Motor 36v 500w 100mm / 135mm Drop Out
High Speed Bicycle Electric Hub Motor 36v 500w 100mm / 135mm Drop Out
High Speed Bicycle Electric Hub Motor 36v 500w 100mm / 135mm Drop Out
Specifications
Brand Name :
OEM
Model Number :
NC36500
Certification :
CE
Place of Origin :
CHINA
MOQ :
10
Price :
Negotiable
Payment Terms :
T/T, Paypal , Alibaba Trade assurance
Supply Ability :
5,000pcs per month
Delivery Time :
15 working days after received your payment
Packaging Details :
carton box with foam, package size : two motors in one box, the size is48cm x 28cm x 28cm
motor power :
500watts
voltage :
36v
pack weight :
6.2kgs
magnet height :
24mm
windings :
9*6T
drop out :
100mm or 135mm
color :
sliver white or black
speed :
350rpm
Description

NC36500 35km/h speed 36v 500w e-bike hub motor brushless gearless dc motor design

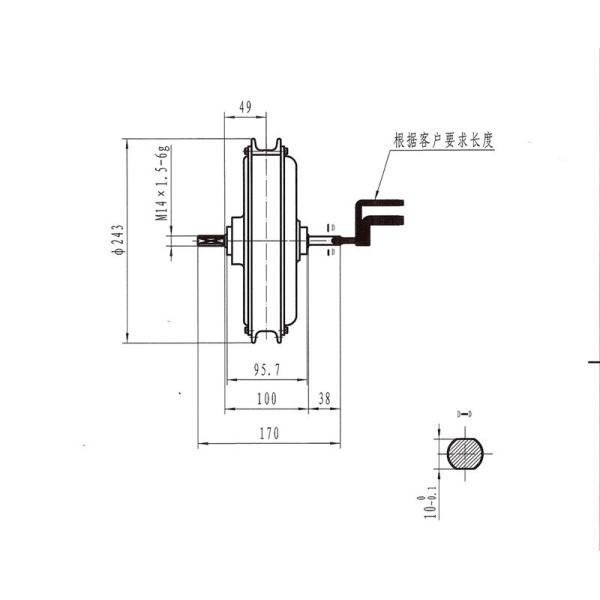

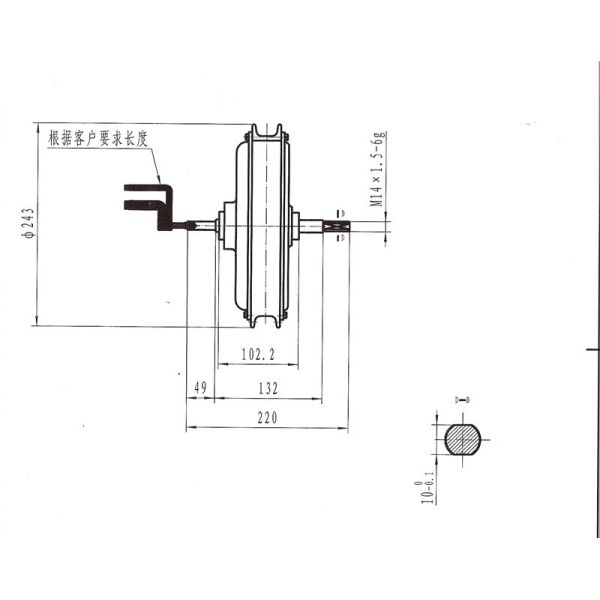

The 36v 500w front and rear motor drawing photos :

High Speed Bicycle Electric Hub Motor 36v 500w 100mm / 135mm Drop OutHigh Speed Bicycle Electric Hub Motor 36v 500w 100mm / 135mm Drop Out

The 36v 500w electirc bike hub motor spec. details :

Model NC36500
Motor power 500w
Axle 10mm* 14mm
Type Front or rear motor to choose
Voltage 36v
Magnet Height 27mm
Design Brushless gearless dc
Windings 9*6
Waterproof grade IP54
RPM/min 360
Cable size 1.5mm2
Max torque 28N.M
Max Efficiency >=88%
Open size 100mm for front motor, 135mm for rear motor
Wheel size 16-28inch
Hall sensor Optional
Hall sensor angle 120 degrees
Integrate speed sensor Optional
Brake Disc brake
Surface color dark black/ sliver white
N.W 5.6kgs

High Speed Bicycle Electric Hub Motor 36v 500w 100mm / 135mm Drop Out

Description for 36v 500w ebike hub motor:

  • cheaper price
  • brushless gearless design
  • Electricity saving, 88%
  • High torque, 35 N.M
  • Long service life
  • suitable for 20"-29" wheels
  • Warranty : 2 years
  • OEM

l PRODUCT PACKING

  • Material : carton with foam
  • package size : two motors in one box, the size is 48cm x 28cm x 28cm
  • gross weight : 13kgs.

High Speed Bicycle Electric Hub Motor 36v 500w 100mm / 135mm Drop Out
