Powerful Electric Bike Hub Motor / 36v 750w Battery Powered Dc Motor
Powerful Electric Bike Hub Motor / 36v 750w Battery Powered Dc Motor
Powerful Electric Bike Hub Motor / 36v 750w Battery Powered Dc Motor
Powerful Electric Bike Hub Motor / 36v 750w Battery Powered Dc Motor
Powerful Electric Bike Hub Motor / 36v 750w Battery Powered Dc Motor
Powerful Electric Bike Hub Motor / 36v 750w Battery Powered Dc Motor
Specifications
Brand Name :
OEM
Model Number :
NC36750
Certification :
CE
Place of Origin :
CHINA
MOQ :
10
Price :
Negotiable
Payment Terms :
T/T, Paypal , Alibaba Trade assurance
Supply Ability :
5,000pcs per month
Delivery Time :
15 working days after received your payment
Packaging Details :
carton box with foam, package size : two motors in one box, the size is48cm x 28cm x 28cm
motor power :
750watts
voltage :
36v
pack weight :
6.2kgs
magnet height :
27mm
windings :
8*7T
drop out :
100mm or 135mm
Description

NC36750 electric mountain bike motor 36v 750w powerful ebike motor 40km/h speed 27mm magnet

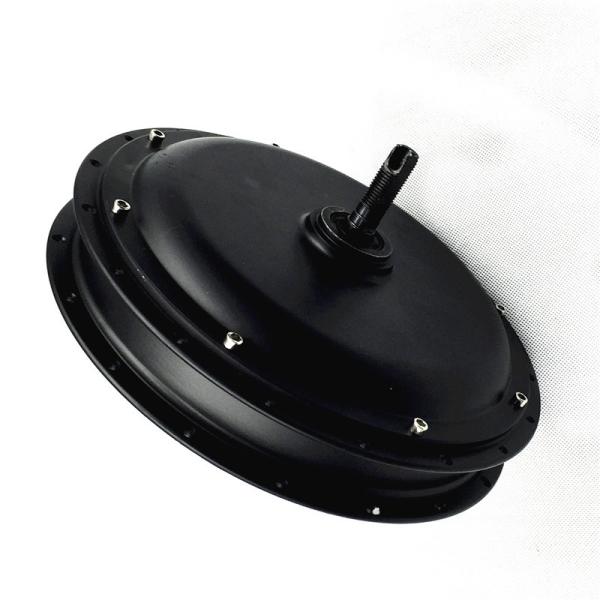

The 36v 750w front and rear motor drawing photos :

Powerful Electric Bike Hub Motor / 36v 750w Battery Powered Dc MotorPowerful Electric Bike Hub Motor / 36v 750w Battery Powered Dc Motor

The 36v 750w electirc mountain bike motor spec. details :

Model NC36750
Motor power 750w
Axle 10mm* 14mm
Type Front or rear motor to choose
Voltage 36v
Magnet Height 27mm
Design Brushless gearless dc
Windings 8*7
Waterproof grade IP54
RPM/min 470
Cable size 1.5mm2
Max torque 35N.M
Max Efficiency >=86%
Open size 100mm for front motor, 135mm for rear motor
Wheel size 16-28inch
Hall sensor Optional
Hall sensor angle 120 degrees
Integrate speed sensor Optional
Brake Disc brake
Surface color dark black/ sliver white
N.W 5.6kgs

Powerful Electric Bike Hub Motor / 36v 750w Battery Powered Dc Motor

Powerful Electric Bike Hub Motor / 36v 750w Battery Powered Dc Motor

Description for 36v 750w ebike hub motor:

  • cheaper price
  • brushless gearless design
  • Electricity saving, 88%
  • High torque, 35 N.M
  • Long service life
  • suitable for 20"-29" wheels
  • Warranty : 2 years
  • OEM

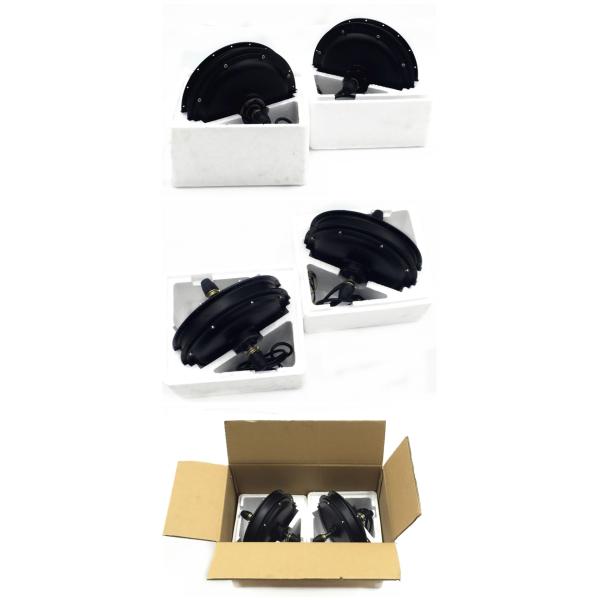

l PRODUCT PACKING

  • Material : carton with foam
  • package size : two motors in one box, the size is 48cm x 28cm x 28cm
  • gross weight : 13kgs.

Powerful Electric Bike Hub Motor / 36v 750w Battery Powered Dc Motor
