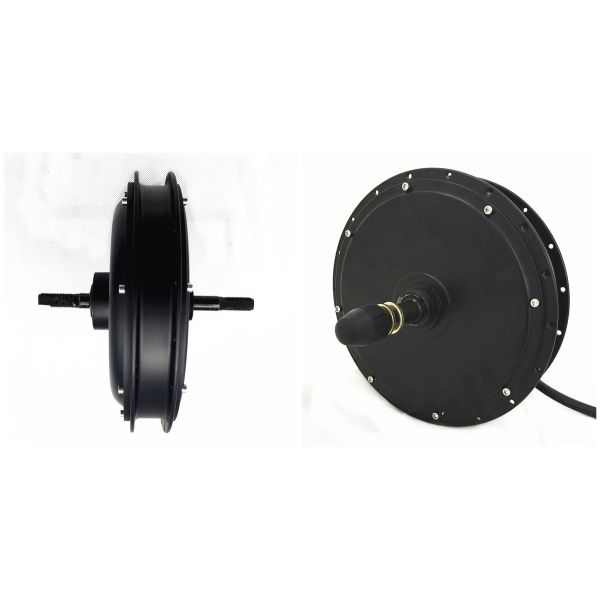

48v 1500w E Bike Brushless Motor For Electric Motor Bicycle Kits
48v 1500w E Bike Brushless Motor For Electric Motor Bicycle Kits
48v 1500w E Bike Brushless Motor For Electric Motor Bicycle Kits
48v 1500w E Bike Brushless Motor For Electric Motor Bicycle Kits
Specifications
Brand Name :
OEM
Model Number :
NC481500
Certification :
CE
Place of Origin :
CHINA
MOQ :
10
Price :
Negotiable
Payment Terms :
T/T, Paypal , Alibaba Trade assurance
Supply Ability :
2,000pcs per month
Delivery Time :
15 working days after received your payment
Packaging Details :
carton box with foam, package size : two motors in one box, the size is48cm x 28cm x 28cm
motor power :
1500watts
voltage :
48v
pack weight :
7kgs
magnet height :
35mm
windings :
14*4T
drop out :
137mm
speed :
550rpm
temperature sensor :
yes
Description

NC481500 e-bike motor 48v 1500w electric bike hub motor 60km/h speed 7speed freewheel

48v 1500w E Bike Brushless Motor For Electric Motor Bicycle Kits

Description for 48v 1500w ebike hub motor:

  • Low noise
  • Electricity saving, 89%
  • High torque, 50 N.M
  • High strength
  • High safety coefficient, high efficiency
  • Long service life
  • Not easy to be hot
  • Big power
  • Warranty : 2 years
  • OEM

The spec. details for the 48v 1500w electric bike hub motor :

Model NC481500
Motor power 1500w
Axle 10mm* 14mm
Type Front or rear motor to choose
Voltage 48v
Magnet Height 35mm
Design Brushless gearless dc
Windings 14*4
Waterproof grade IP54
RPM/min 550
Cable size 2.5mm2
Max torque 50N.M
Max Efficiency >=88%
Open size 137mm rear motor only
Wheel size 16-28inch
Hall sensor Optional
Hall sensor angle 120 degrees
Integrate speed sensor Optional
Brake Disc brake
Surface color dark black/ sliver white
Temperature sensor Yes
N.W 7kgs

l PRODUCT PACKING

  • Material : carton with foam
  • package size : two motors in one box, the size is 48cm x 28cm x 28cm
  • gross weight : 13kgs.

48v 1500w E Bike Brushless Motor For Electric Motor Bicycle Kits

48v 1500w E Bike Brushless Motor For Electric Motor Bicycle Kits
