Specifications
Place of Origin :
Henan, China
Brand Name :
Aobest
Model Number :
Cu/rubber
Insulation Material :
Rubber
Type :
LOW VOLTAGE
Application :
Construction
Conductor Material :
Copper
Jacket :
Rubber

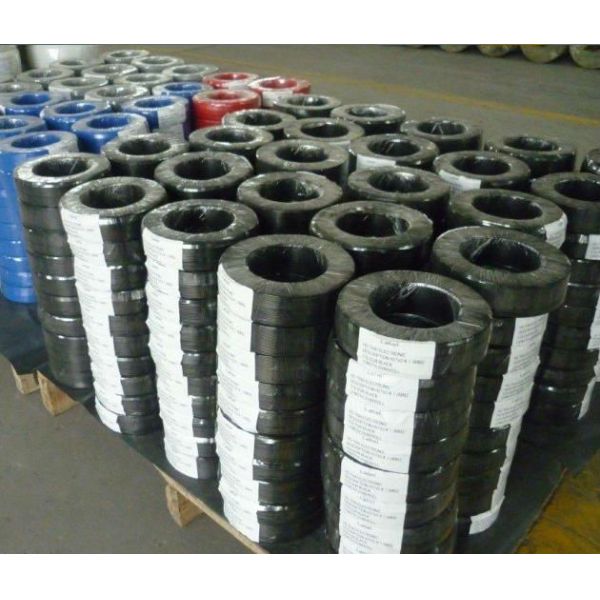

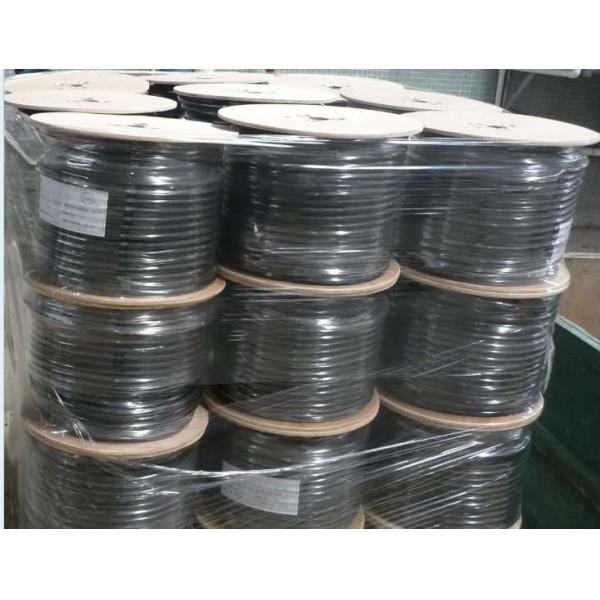

packing way :
roll or reel
quality guarantee :
10years
keywords :
rubber cable
usage :
general use
certificate :
CCC ISO
export market :
150countries
Color :
Requirement
Conductor :
Pure Copper
Voltage :
300/500V 450/750V
Certificate :
ISO9001:2008 CCC
MOQ :
1000 meters
Price :
$0.25/meters
Description

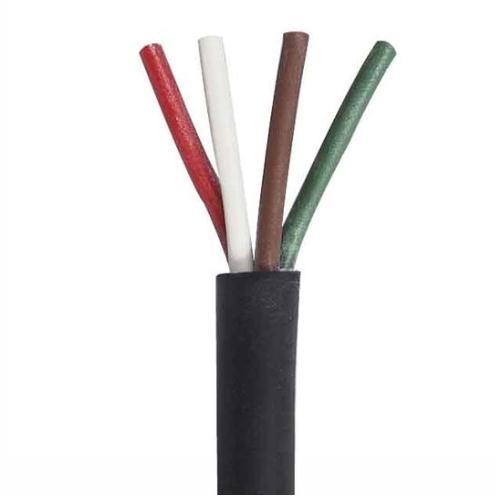

trs rubber cable

Rubber Sheathed Flexible Cable/Rubber Cables

1. Standard:

The product fits to GB 5013.4 1997 (equals to IEC 245 1997), JB 8735.2 1998.

3. Scope of Cable Specification Table 2

Construction Requirement Low Voltage Flexible TRS Cable with Pure Copper Insulation

Table 2: Scope of The Specification

type

Rated voltage

Number of cores

Normal section (main core) area

245 IEC 53(YZ)

245 IEC 57(YZW)

300/500

2,3,4,5,6

3+1

0.75~6

1.5~6

YC

245 IEC 66(YCW)

450/750

1

2

3,4

3+1

5

1.5~400

1~95

1~150

2.5~150

1~25

Construction Requirement Low Voltage Flexible TRS Cable with Pure Copper Insulation

4. speciality

Rated voltage U0/U 300/500V and 450/750V.

Long allowable operating temperature 60.

The Wderiving cable has the advantage of weather-proof and oil-resistant, fits to the situation of outer door and connecting oily dirt.

5. We can produce special structure and function cable according to the requirement of the customers.

6. main technical parameter

structure

a. conductor the conductor is annealed copper, the max. Outer diameter of the single wire in the conductor fits to the fifth conductor rule of GB/T3956. the DC resistance conforms to the rule in table 3.

Table 3 DC resistance

Construction Requirement Low Voltage Flexible TRS Cable with Pure Copper Insulation

Normal section

20 DC resistance not more than

Normal areas

20 DC resistance not more than

tinning

Not tinning

tinning

Not tinning

0.5

40.1

39.0

50

0.393

0.386

0.75

26.7

26.0

70

0.277

0.272

1.0

20.0

19.5

95

0.210

0.206

1.5

13.7

13.3

120

0.164

0.161

2.5

8.21

7.98

150

0.132

0.129

4

5.09

4.95

185

0.108

0.106

6

3.39

3.30

240

0.0817

0.081

10

1.95

1.91

300

0.0654

0.0641

16

1.24

1.21

400

0.0495

0.0486

25

0.795

0.78

35

0.565

0.554

Construction Requirement Low Voltage Flexible TRS Cable with Pure Copper Insulation

Table 4: 300/500V YZ, YZW medium rubber-sheath size

Number of cores ×normal area

Average outer diameter

Calculated weight

lower limit

upper limit

2*0.75

2*1

2*1.5

2*2.5

2*4

2*6

6.0

6.6

8.0

9.5

10.6

11.8

8.2

8.8

10.5

12.5

13.7

15.1

64

77

112

167

234

325

3*0.75

3*1

3*1.5

3*2.5

3*4

3*6

6.5

7.0

8.6

10.0

11.3

12.6

8.8

9.2

11.0

13.0

14.5

16.1

81

93

136

198

297

423

Construction Requirement Low Voltage Flexible TRS Cable with Pure Copper Insulation

welcome email us: aobest (at) aobest.cn
