Saudi Arabia Compatible Rubber Power Cable with Copper Conductor Low Voltage for Construction Applications
Saudi Arabia Compatible Rubber Power Cable with Copper Conductor Low Voltage for Construction Applications
Saudi Arabia Compatible Rubber Power Cable with Copper Conductor Low Voltage for Construction Applications
Saudi Arabia Compatible Rubber Power Cable with Copper Conductor Low Voltage for Construction Applications
Saudi Arabia Compatible Rubber Power Cable with Copper Conductor Low Voltage for Construction Applications
Saudi Arabia Compatible Rubber Power Cable with Copper Conductor Low Voltage for Construction Applications
Saudi Arabia Compatible Rubber Power Cable with Copper Conductor Low Voltage for Construction Applications
Saudi Arabia Compatible Rubber Power Cable with Copper Conductor Low Voltage for Construction Applications
Saudi Arabia Compatible Rubber Power Cable with Copper Conductor Low Voltage for Construction Applications
Saudi Arabia Compatible Rubber Power Cable with Copper Conductor Low Voltage for Construction Applications
Saudi Arabia Compatible Rubber Power Cable with Copper Conductor Low Voltage for Construction Applications
Saudi Arabia Compatible Rubber Power Cable with Copper Conductor Low Voltage for Construction Applications
Specifications
Place of Origin :
Henan, China
Brand Name :
Aobest
Model Number :
YZ YC
Insulation Material :
Rubber
Type :
LOW VOLTAGE
Application :
Construction
Conductor Material :
Copper
Jacket :
rubber or pvc
Product name :
Rubber Welding Cable
Certificate :
ISO9001, ISO14001, OHSAS18001, CCC
Standard :
BS IEC ASTM DIN
Conductor :
Copper Core
Insulation :
Rubber Insulation
Keywords :
Rubber cable
Package :
Wooden Drum
MOQ :
1000 meters
Price :
$2.00/meters >=1000 meters
Description

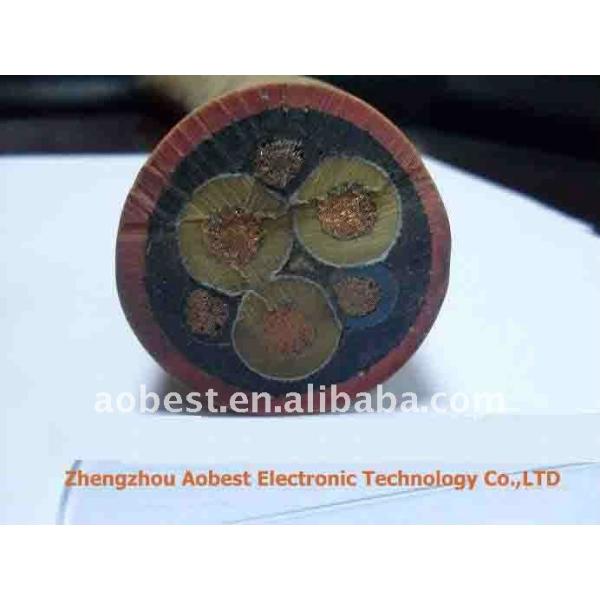

Rubber Power Cable

1. Standard: According to GB5013-85(Equal to IEC245),also can do by standard of ASTM,BS,DIN and AS/NZS or other standards.

2. Rated Voltage:450/750V ;300/500V ;300/300V

3. Construction:

Conductor:Copper;

Insulation: Rubber

Inner sheath:Rubber

NO. of cable cross: 1 core(Single core),2cores(Double cores),3cores, 4cores(4 equal-section-area cores OR 3 equal-section-area+1 small section area neutral core),5cores(5 3 equal-section-area cores+2 small area neutral cores OR 4 equal-section-area +1 small area neutral cores).We provide armored type and non-armored type for the cables stated above.

Also can do according to the customer's request.

4. Characters:

a.Max long-time operating temperature of conductor :65°C

b.Light-duty/Medium-duty/Heavy-duty rubber sheathed flexible cable optional

c.Insulation resistance within the insulated cores of the cable converted to 20°C.Section 35mm2 and below should be not less than 50MΩ.KM,50~150 mm2 not less than 30 MΩ.KM.185~400 mm2 not less than 20 MΩ.KM.

5.Type & Description & Application:

Type

Name

Rated Voltage(V)

Section Area(mm2)

No. of Core

Main Application

245 IEC 53 YZ

Common Rubber Sheated
Flexible Cable

300/500

0.75-2.5

2,3,4,5

Used for various
mov able electrical
equipments and tools

245 IEC 57 YZW

Common Chlorop rene Rubber
Sheathed Flexible Cable

0.75-2.5

2,3,4,5

4-6

2,3,4,5

YZ YZW

Medium Type Rubber
Sheated Flexible Cable

300/500

1.5-6

4(three and half cores)

Used for various
movable electrical
equipments and be
able to stronger
outer mechanical
force

0.75-6

6

245 IEC 66 YCW

Heavy Type Rubber
sheathed Flexible Cable
For Using Outdoor

450/750

1.5-400

1

1.0-25

2

1.0-95

3

1.0-150

4

1.0-25

5

YC

Heavy Type Rubber
Sheated Flexible Cable

450/750

1.5-400

1

1.5-95

2

1.5-150

3,4

1.5-25

5

2.5-150

4(three and half cores)

YCW

Heavy Type Rubber
Sheated Flexible Cable
for Using Outdoor

450/750

35-95

2

120-150

3

2.5-150

4(three and half cores)

6. Advantages:

a. Excellent electric and mechanical characteristics and wear-resisting.

b. Good properties of oil and weather resistance.

c. Simple in structure,Convenient to use

NO. Of Cores

Rated voltage

Nominal thickness of insulation

Thickness of sheath

Diameter of conductor

Approx. Overall diameter

Max cable weight

Nominal cross sectional area of conductor etc.

All above can do as every different standards OR as your special request
