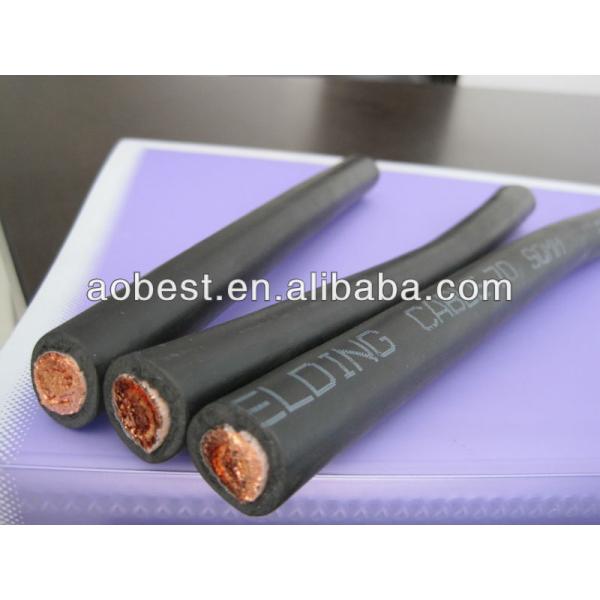

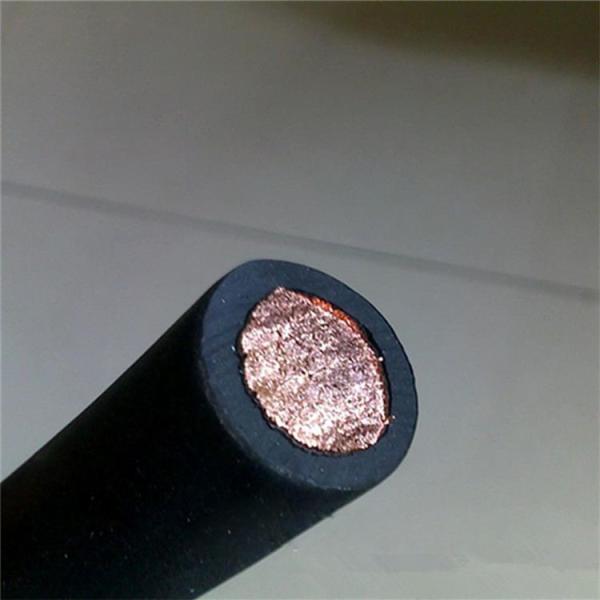

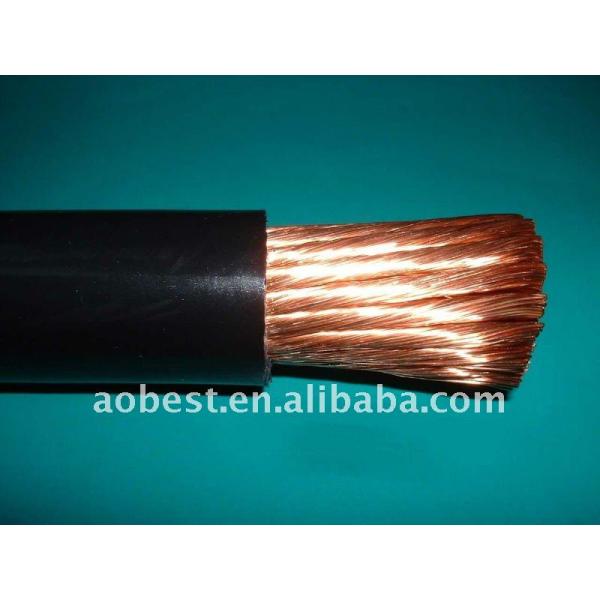

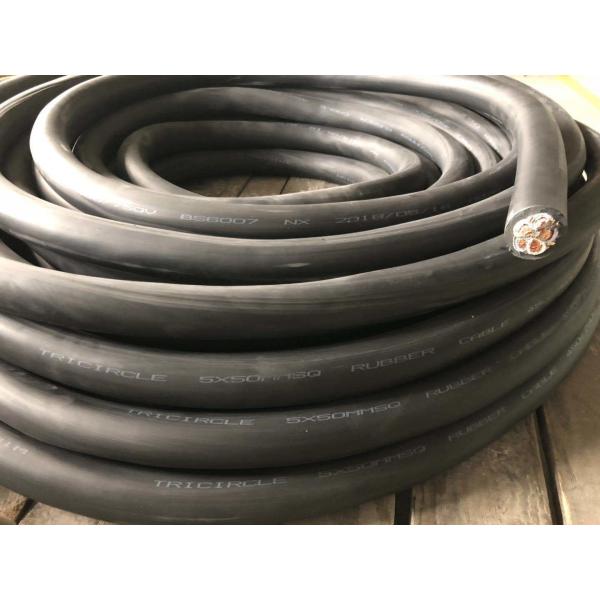

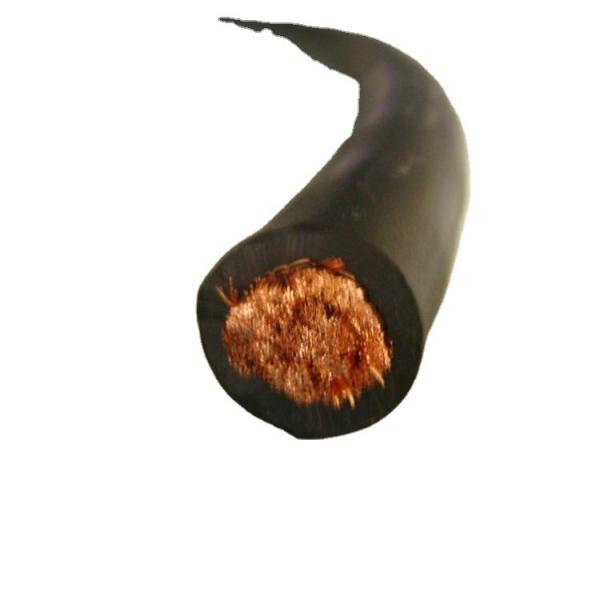

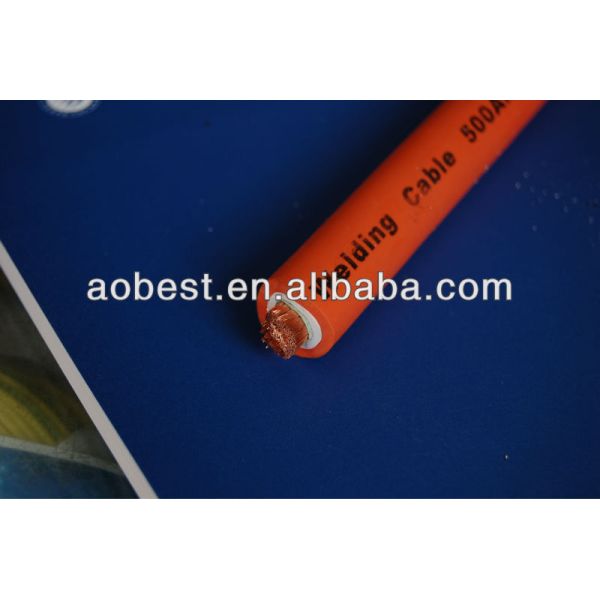

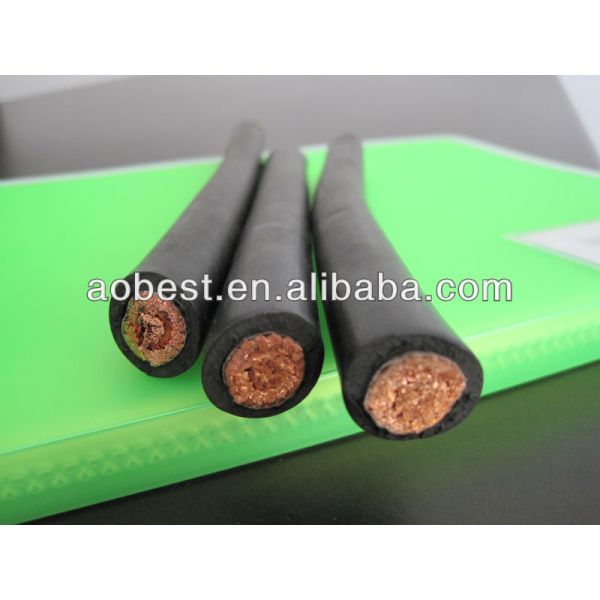

2022 Large Export Stranded Copper Conductor 70mm2 Rubber Insulated Cable for Welding Applications
2022 Large Export Stranded Copper Conductor 70mm2 Rubber Insulated Cable for Welding Applications
2022 Large Export Stranded Copper Conductor 70mm2 Rubber Insulated Cable for Welding Applications
2022 Large Export Stranded Copper Conductor 70mm2 Rubber Insulated Cable for Welding Applications
2022 Large Export Stranded Copper Conductor 70mm2 Rubber Insulated Cable for Welding Applications
2022 Large Export Stranded Copper Conductor 70mm2 Rubber Insulated Cable for Welding Applications
2022 Large Export Stranded Copper Conductor 70mm2 Rubber Insulated Cable for Welding Applications
2022 Large Export Stranded Copper Conductor 70mm2 Rubber Insulated Cable for Welding Applications
2022 Large Export Stranded Copper Conductor 70mm2 Rubber Insulated Cable for Welding Applications
2022 Large Export Stranded Copper Conductor 70mm2 Rubber Insulated Cable for Welding Applications
2022 Large Export Stranded Copper Conductor 70mm2 Rubber Insulated Cable for Welding Applications
2022 Large Export Stranded Copper Conductor 70mm2 Rubber Insulated Cable for Welding Applications
Specifications
Place of Origin :
Henan, China
Brand Name :
Aobest
Model Number :
rubber cable
Type :
insulated
Application :
industry
Conductor Material :
Copper
Conductor Type :
Stranded
Insulation Material :
Rubber
Product name :
Rubber cable
size :
70mm2
Certification :
ISO9001/ISO14001 /OHSAS18001/CCC
Standard :
IEC NEMA GB JIS

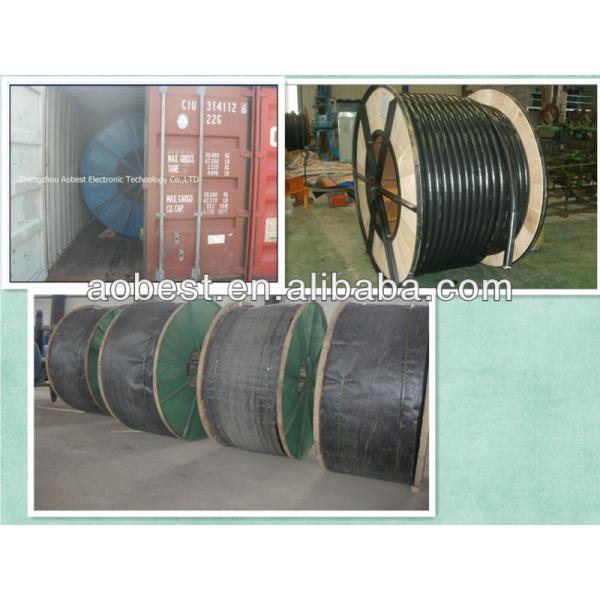

Packing :
Wooden Drum
Price :
$6.00/meters
Description

2020year large export copper conductor welding cable 70mm2 rubber cable

good resistance to:oil,agilg, heat,corrosion,soft

competitive price
fast delivery
ccc iso9001:2008approved

The rubber cable are flexible and can be used in the oil proof ,

made comple with national standards and have passed the CCC.

1.Applications

Mobile appliances, lighting, electrical equipment cable boxes

Mining, construction, shipyards, oil,steel,industry,

electrical equipment in construction field work

2.Model type:

YZ YZW :Middle modle rubber sheath flexible cable

used for various domestic appliance portable equipment and

moving machinery in oil or damp environment.

YC YCW :Heavy modle rubber sheath flexible cable which can bear larger

machenical force effect.

3.Rated voltage

YZ 300V/500V

YC 450V/750V

4.Specifications

2, 3 , 3+1, 3+2 ,and so on .We can also customize electrical wire and

cable as your request.

you can choose line core number of conductor or cross section of conductor

as well as the insulation and sheath material.

5. long-term allowable working temperature does not exceed 65 degrees
6. Main Technical Performance:
 Insulated core insulation resistance between the conversion to a

temperature of 20 , not less than 50MΩ/KM.
Between the cable core insulation should withstand voltage test AC

50Hz2000V 5 min, without breakdown.

Many other PVC/XLPE power cables, AAC/AAAC/ACSR conductors, control cables etc. can be provided. Welcome your inquiry.

More info needed, pls contact me freely.
