High tech Welding cable of awg size
High tech Welding cable of awg size
High tech Welding cable of awg size
High tech Welding cable of awg size
Specifications
Place of Origin :
Henan, China
Brand Name :
AOBEST
Model Number :
YC
Insulation Material :
Rubber
Type :
LOW VOLTAGE
Application :
Industrial
Conductor Material :
Copper
Jacket :
Rubber
Packaging Details :
100 METERS PER COIL.
Port :
QINGDAO or SHANGHAI port
Supply Ability :
5000 Kilogram/Kilograms per Month
MOQ :
5 meters
Price :
$0.10 - $18.00/meters
Description

Rubber Insulated Welding Cable

Uses:

Apply to the secondary side wiring and connecting welding clamp dedicated cables, the exchange does not exceed the rated voltage 200 V DC and pulse of 400 V peak. Single core structure, a multi-unit complex cutter made of soft wire. Conductive wire core heat-resistant polyester film used outside insulation wrap packages, with the outermost layer of insulation made of rubber sheathing as a protective layer.

Instruction

Welding Cables are suitable for the secondary side voltage exchange does not exceed 200 V and 400 V peak pulsating DC welding machine with secondary side wiring and connecting welding clamp purposes. Cable allows long-term temperature: ≤ +65

Type:

Type

Name

YH

Welder natural rubber sheathing cables

YHF

Chloroprene or elastomer sheathe cable welder

Cable main technical performance

section

Core structure cores/mm

20 conductive wire core DC resistance Ω/km

No Tinning

Tinning

10

322/0.20

≤1.19

≤1.95

16

513/0.20

≤1.16

≤1.19

25

798/0.20

≤0.758

≤0.780

35

1121/0.20

≤0.536

≤0.552

50

1596/0.20

≤0.346

≤0.390

70

2214/0.20

≤0.268

≤0.276

95

2997/0.20

≤0.198

≤0.204

120

3702/.0.20

≤0.161

≤0.164

The advantages of our company:

1) Our company is a professional supplier of various kinds of cables for over 10 years.

2) The quality of our products are guaranteed. They are all with CCC, CE, CB and RoHS certificates.

3) The price is averagely 10%~20% lower than the other competitors. Because our factory is located

in a small town. The labor and raw materials cost are relatively low there.

4) Huge Inventory Allows Us To Ship Your Order Immediately

5) Our employees are all capable and professinal. They can offer you the Prompt Courteous Service.

6) We ship worldwide.

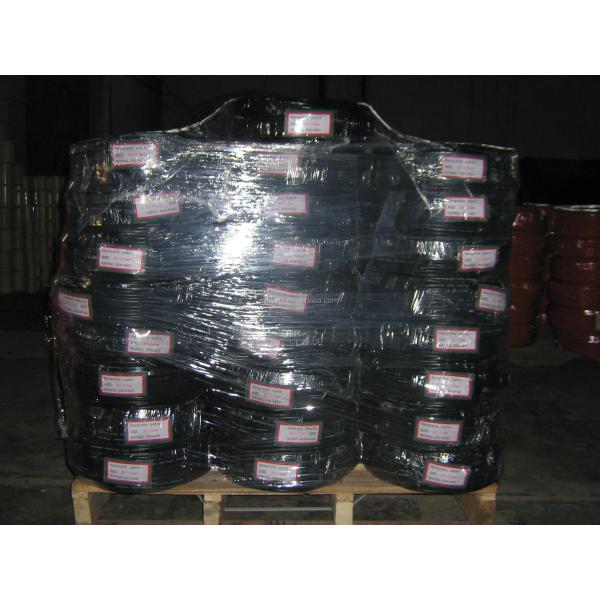

Package:

1) Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement
2) Outer packing: wooden case, carton box
3) Other packing requirement according to client's request

Note: Finished drills immersion in water 1 hour at room temperature, withstood 50Hz, 200V AC voltage of 5 min no breakdown.

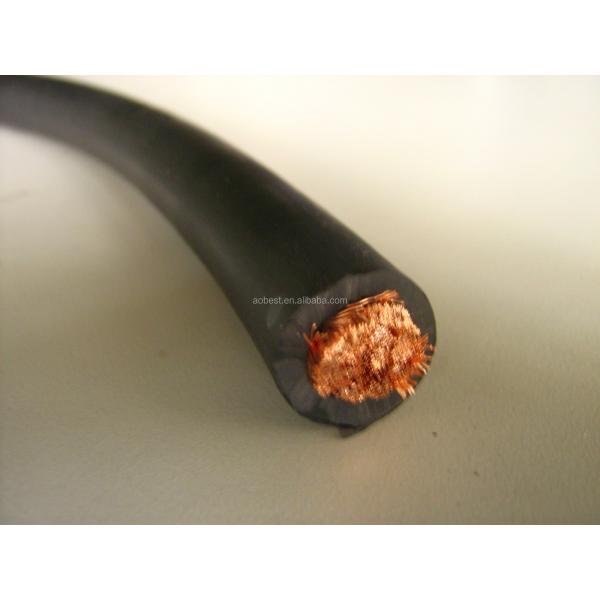

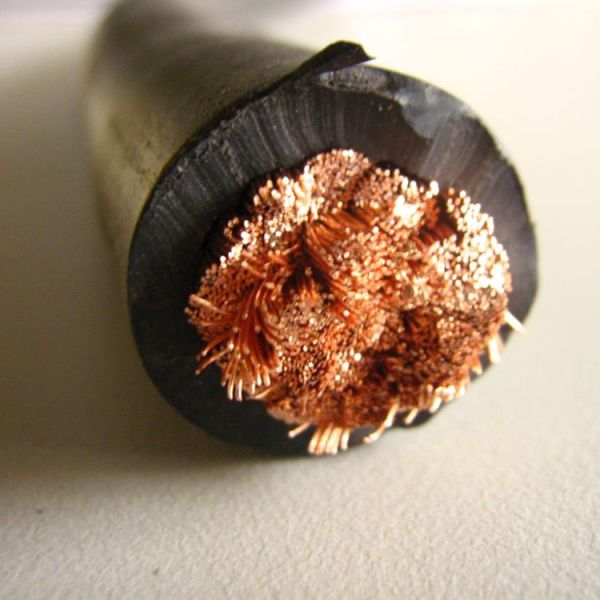

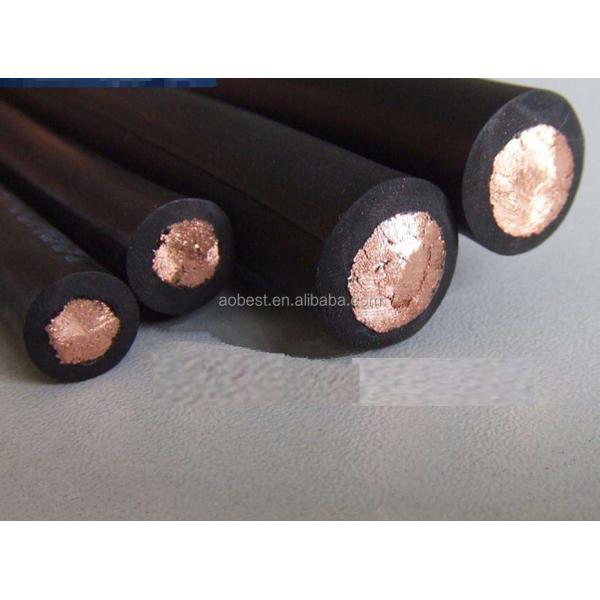

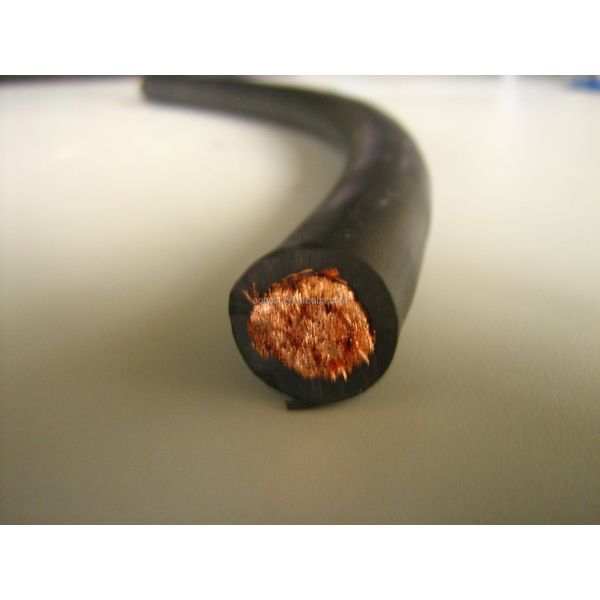

picture of welding cable

High tech Welding cable of awg sizeHigh tech Welding cable of awg sizeHigh tech Welding cable of awg sizeHigh tech Welding cable of awg size
