Specifications
Place of Origin :
Jiangsu, China
Brand Name :
XD
Model Number :
DCT-500
Certification :
CE CCC CQC ISO
Supply Ability :
10 Set/Sets per Month
Packaging Details :
WOODEN
MOQ :
1 Set/Sets
Price :
Negotiable
Type :
separator
Condition :
New
Voltage :
380V 50Hz
After-sales Service Provided :
Engineers available to service machinery overseas
Power(W) :
1.5Kw
Weight :
0.65T
Warranty :
1 year
Port :
SHANGHAI
Description

Introduction

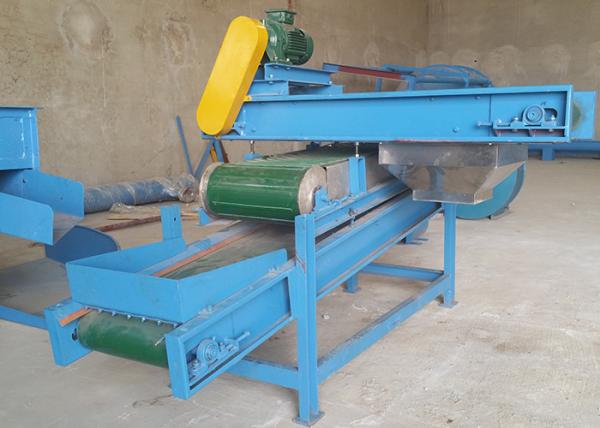

The DCT Belt Iron Separator is used toseparate iron objects mixed in the rubber granules to prepare for next processing. It mainly consists of electro-magnetic, motor, conveying belt, roller cylinder, machine frame and control cabinet, etc.

Structure and Principle

The machine use electro-magnetic which has stepless adjustable strong attraction force and depth, is 5-10 times more attractive than ordinary high performance magnetic, with such features as strong magnetic force, quick demagnetization and deep attraction;

By using heat-proof belt for conveying steel wire, the friction of the rollers is increased, even big steel wires can be separated completely;

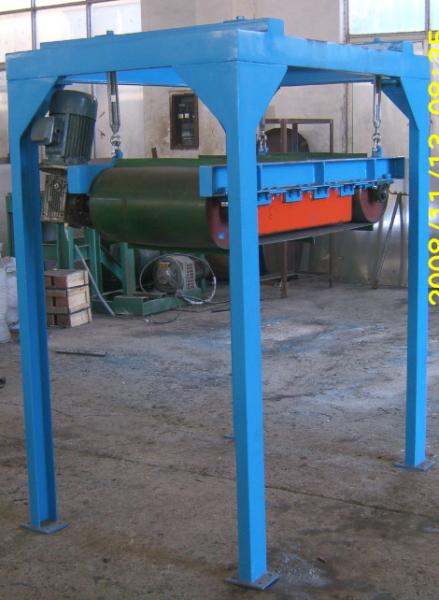

The electro-magnetic is suspended onto the machine frame, the height of which can be adjusted to get suitable attraction distance.

Model 500
Capacity(Kg/H) 400~800
Belt width(mm) 500
Separation efficiency(%)
 99
Motor power(Kw) 1.5
Adjusting height(mm)
 200
Weight(T) 0.65
