Rubber Grinder ( tire recycling )
Rubber Grinder ( tire recycling )
Rubber Grinder ( tire recycling )
Rubber Grinder ( tire recycling )
Rubber Grinder ( tire recycling )
Rubber Grinder ( tire recycling )
Rubber Grinder ( tire recycling )
Rubber Grinder ( tire recycling )
Rubber Grinder ( tire recycling )
Rubber Grinder ( tire recycling )
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
Xinda
Model Number :
CQJ-320
Certification :
CE CCC CQC ISO
Supply Ability :
20 Set/Sets per Month
Packaging Details :
plastic film/wooden case
MOQ :
1 Set/Sets
Price :
Negotiable
Type :
Tire Machine
Condition :
New
Voltage :
380V 50Hz
Warranty :
1 year
After-sales Service Provided :
Engineers available to service machinery overseas
Power(W) :
48.75Kw
Weight :
4.5T
Port :
shanghai port
Description

Introduction

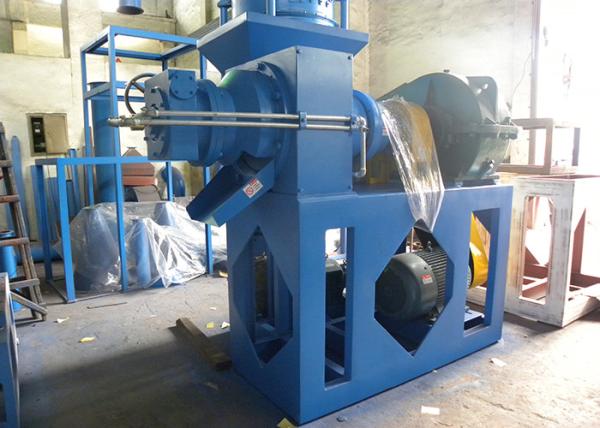

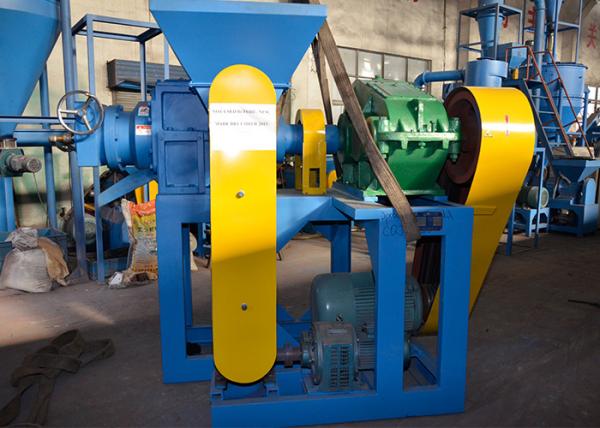

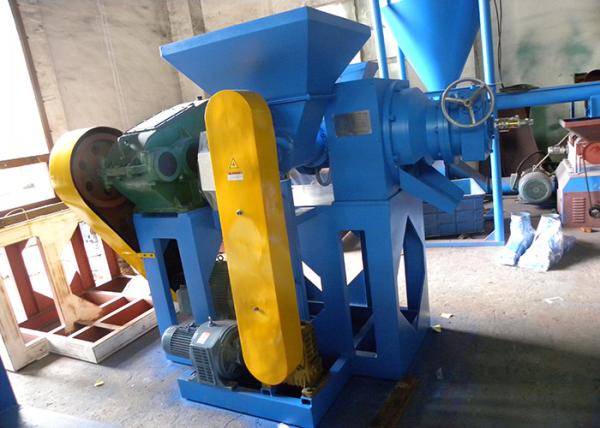

The CQJ Rubber Chip Grinder is used to coarse/fine grind various kinds of shredded rubber chips in ambient process and it will also detach the steel wire and fiber with the rubber during grinding. The machine is composed of motor, speed reducer, grinding cone, grinding sleeve, grinding spiral shaft, feeder, cooling system and machine frame, etc.
Structure and Principle

Technical data:

Diameter of roller

320

Rotate speed

30r/min

Size of input granules

≤50*80mm

Size of output granules

≤3-10mm

Capacity

200-600kg/h

Main motor power

45kw

Feeding motor power

3kw

Tempeture of cooling water

≤60

Dimension(L*W*H)

2.4*2*1.6m

Weight

6.8T
