Aluminum Rubber Sheet Car Anti Ram Vehicle Barriers Foldable
Aluminum Rubber Sheet Car Anti Ram Vehicle Barriers Foldable
Specifications
Brand Name :
RMHs
Model Number :
Parking blocker-JY
Place of Origin :
CHINA
MOQ :
500PCS
Price :
USD100~145/PCS
Payment Terms :
L/C,T/T
Supply Ability :
1000PCSper1 month
Delivery Time :
30
Packaging Details :
Carton packing 3800pcs 40-inch containers
Material :
Aluminum Rubber sheet
Weight :
13.4kg
Color :
Yellow
Structure :
Foldable
Principle :
Friction increases
Scope of application :
Low speed road
Description

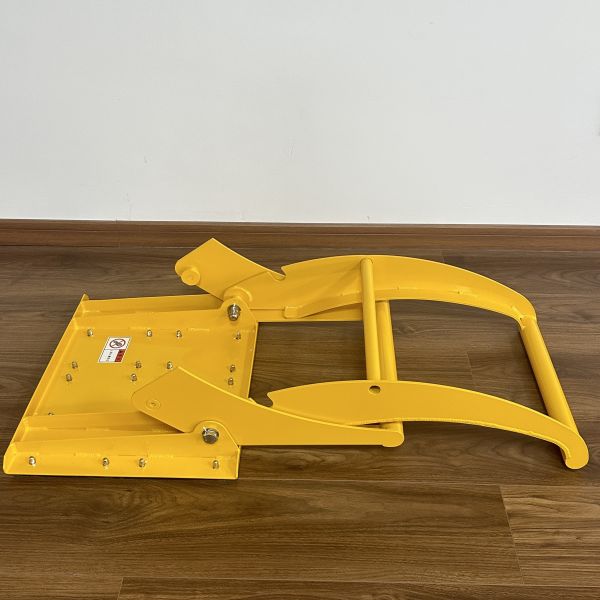

Aluminum Rubber Sheet 13.4kg Car Anti Ram Vehicle Barriers

Parking Stopper Ramp parking auxiliary


The parking blocker is designed to help stop intruding vehicles forcibly. It is an ideal device for controlling the operation of vehicles in urban areas and work areas. It can effectively control vehicles to enter restricted areas and construction sites, and force vehicles to park within a short distance to reduce injuries to people and vehicles.

Product Specifications



Item Specifications
Product Name Traffic Yellow Aluminum Portable Foldable Vehicle Barrier
Model RMHs-VB2023
Material Structure High-strength aluminum alloy frame + anti-slip rubber base
Main Color Traffic Yellow (RAL 1023 standard color)
Product Weight 13.8kg ±0.5kg
Deployed Dimensions 1380mm × 520mm × 240mm (L×W×H)
Folded Dimensions 700mm × 520mm × 120mm (L×W×H)
Storage Volume Reduction Reduced by approximately 75% compared to deployed state
Load Capacity Effectively intercepts vehicles with total weight ≤1.8 tons and speed ≤35km/h
Braking Distance 1.5-3.5 meters (depending on vehicle speed and road conditions)


The main material of the device is aluminum, which is environmentally friendly and recyclable. The incombustibility of this material can reduce secondary disasters caused by splashes and protect the lives of drivers and workers.


It is very light and easy to carry. It can be folded and stored in the trunk when not in use.

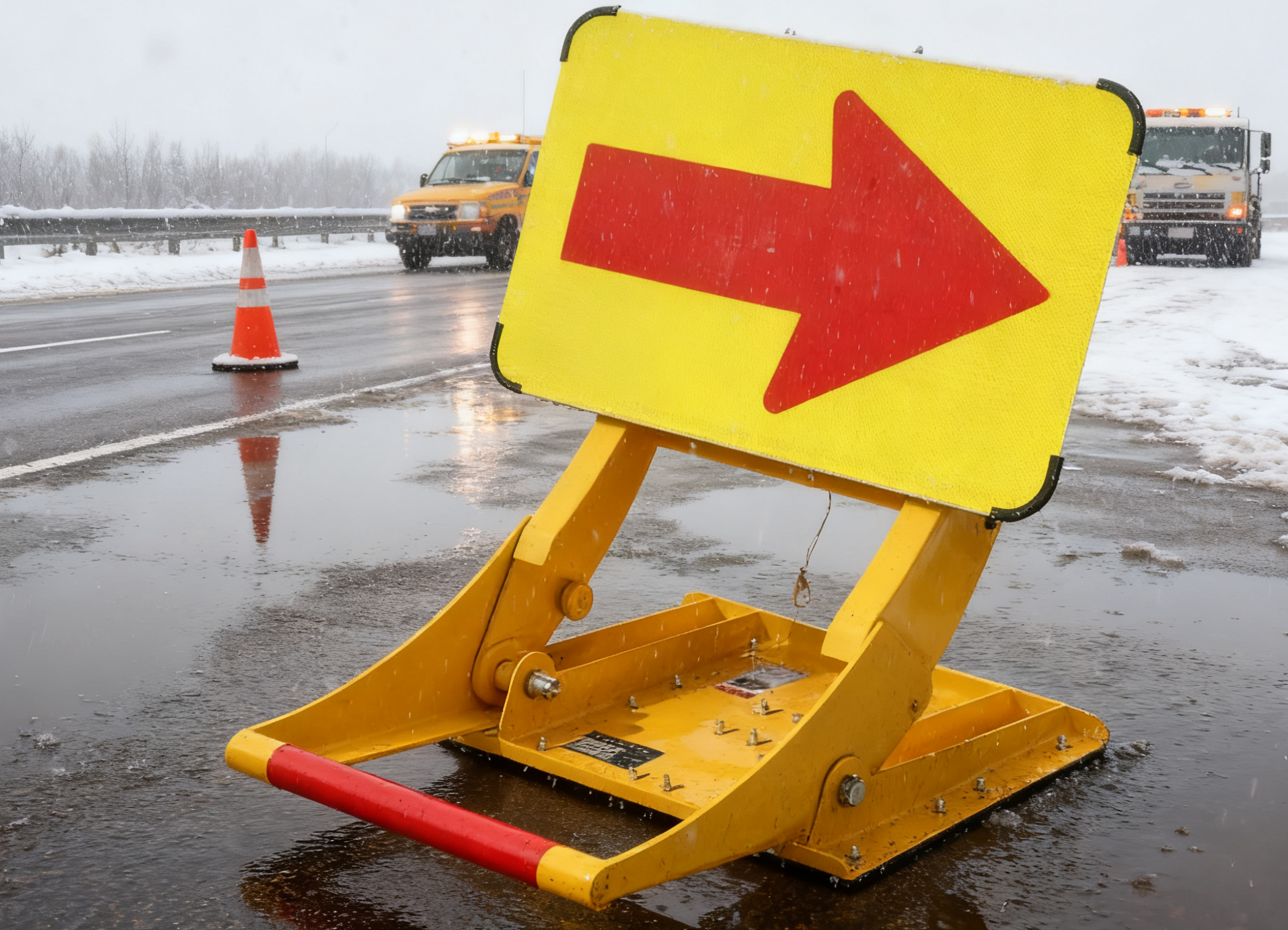

The product can be used in conjunction with our LED arrows, which can be fixed on the handles on both sides. Simple operation and easy deployment of modular vehicle barriers.

Product Advantages

1. Lightweight and Easy to Carry
Weighs only 14 kg. When folded, it's about the size of a suitcase. One person can easily handle and move it.

2. Safe and Effective at Blocking Vehicles
Specifically designed to stop small cars traveling at low speeds in residential areas or construction sites. It brings vehicles to a smooth stop, protecting both people and vehicles.

3. Durable and Low-Maintenance
Made of aluminum, which is rust-resistant. It has a service life of over 5 years and requires almost no maintenance.

4. Highly Visible at Night
Features a bright yellow color. Can also be equipped with LED lights or reflective strips for clear visibility even at night.

5. Eco-Friendly and Cost-Effective
The aluminum material is recyclable. Although the unit price is higher than plastic cones, it can be reused for a long time, making it more economical in the long run.

Aluminum Rubber Sheet Car Anti Ram Vehicle Barriers Foldable

Comparison with Traditional Barriers



Braking Method Traditional Concrete Blocks This Product
Principle Rigid blocking Lever + friction soft braking
Stopping Distance Stops upon impact (prone to rollover) 1-3 meter buffer stop
Vehicle Damage Severe bumper/chassis damage Minor or no damage
Secondary Risk Debris scattering No debris risk

Aluminum Rubber Sheet Car Anti Ram Vehicle Barriers Foldable









Product Knowledge Q&A

Q1: What type of safety equipment does this product belong to?
A: It belongs to the category of temporary active vehicle protection devices, classified as portable barriers/vehicle interceptors, suitable for temporary safety control in low-speed environments.

Q2: Why choose aluminum over steel?
A: Aluminum offers three major advantages: high strength-to-weight ratio (one-third the weight of steel at equal strength), natural rust resistance (protected by surface oxide layer), and 100% recyclability, making it more suitable for portable equipment.

Q3: Can the product withstand multiple impacts?
A: Yes. It features an elastic deformation design and can be reused under rated impact conditions (≤1.8 tons, ≤35 km/h). After each impact, it is recommended to check structural integrity; severe deformation requires replacement.

Q4: Is it effective on slippery roads?
A: Yes. The bottom uses special patterned rubber pads, with a wet ground friction coefficient still above 0.45. The product also includes drainage grooves to prevent water accumulation from affecting stability.

Q5: How is nighttime visibility ensured?
A: Threefold assurance:

  1. High-reflectivity yellow coating on the surface (reflectance coefficient ≥200 cd/lx/m²)

  2. Pre-installed reflective strip slots (standard with 3M-grade reflective material)

  3. LED warning light interfaces (supports flashing/steady light modes)

Q6: Does the product require maintenance?
A: Basically maintenance-free. Recommendations:

  • Monthly inspection of rubber pad wear

  • Quarterly cleaning of surface stains (rinse with water)

  • Annual check of folding mechanism lubrication
