Lightweight Foldable Anti Ram Vehicle Barrier with Built-in Wheels for Quick Relocation
Lightweight Foldable Anti Ram Vehicle Barrier with Built-in Wheels for Quick Relocation
Specifications
Bottom Friction :
Specially designed rubber pad
Operators Required :
1 person
Price :
USD 2700/unit
Material :
High-strength aluminum alloy + wear-resistant rubber
Stopping Distance :
8.7m at 60km/h
Temperature Range :
-20°C to 60°C
MOQ :
50 units
Brand Name :
RMHs
Model Number :
TOMARUKUN
Place of Origin :
CHINA
Payment Terms :
T/T,L/C
Delivery Time :
30
Packaging Details :
Packed in cartons, 208 units per 40' container
Supply Ability :
300 units per month
Operating Dimensions :
W830 × L860 × H1080mm
Folded Dimensions :
W830 × L1090 × H365mm
Weight :
25kg
Certification :
ISO 9001
Description
Tomarukun Anti-Ram Vehicle Barrier
A lightweight portable solution with foldable structure and built-in wheels for quick relocation and storage
Product Overview
Tomarukun is a lightweight vehicle interception device specifically designed for low-speed scenarios such as municipal construction and road maintenance. The main body is made of high-strength aluminum alloy, weighing only 25kg, featuring a foldable structure with built-in wheels, enabling a single person to easily handle deployment, relocation, and storage.
The product integrates high-visibility engineering yellow warning with physical interception braking—serving as a long-distance alert in daily use. When a vehicle improperly enters the restricted area and collides with the device, it rapidly lifts the front wheels through lever principle, redirecting kinetic energy to the ground, and achieves smooth braking through high-strength friction from the specially designed rubber pad at the bottom, with a stopping distance of only 8.7 meters at 60km/h.
An optional LED indicator board is available to meet the needs of nighttime and low-visibility conditions, providing round-the-clock safety protection for construction personnel and passing vehicles.
Lightweight Foldable Anti Ram Vehicle Barrier with Built-in Wheels for Quick Relocation
Product Specifications
Item Specification
Product Name Tomarukun Stopping Device
Weight 25kg
Material High-strength aluminum alloy + wear-resistant rubber
Surface Finish Outdoor-grade electrostatic spraying (rust-proof and weather-resistant)
Color Engineering Yellow / Orange-Yellow
Operating Dimensions W830 * L860 * H1080mm
Folded Dimensions W830 * L1090 * H365mm
Structure Foldable + bottom wheels

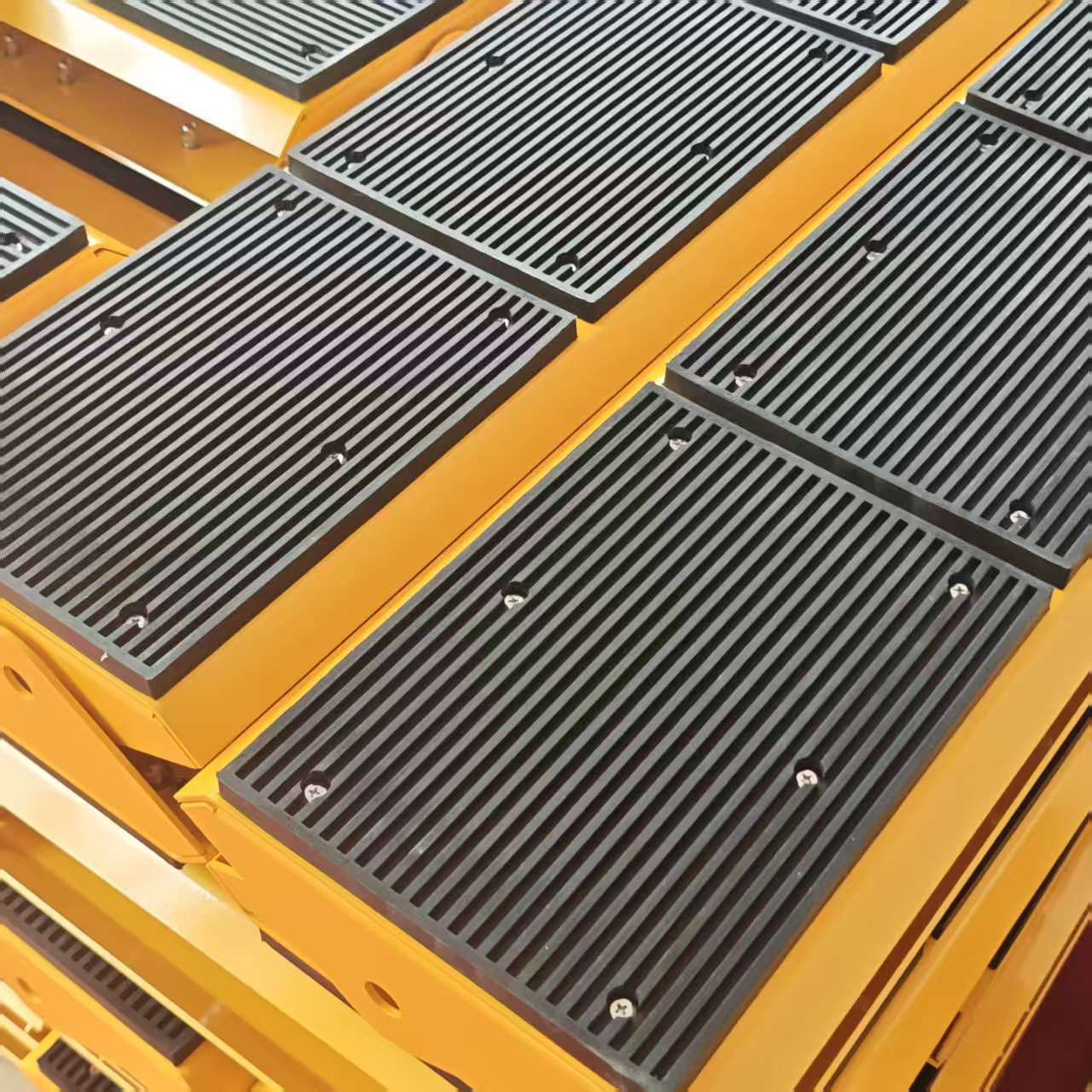

Bottom Friction Component Specially designed rubber pad
Optional Accessories LED light guide plate / LED arrow indicator board
Deployment Method Push to work area -> unlock buckle -> rubber pad contacts ground
Storage Method Fold up support arm -> fasten buckle -> push to storage
Recommended Placement Distance Approx. 20 meters behind the safety area
Operators Required 1 person
Applicable Scenarios Municipal construction, road maintenance, temporary work zones, and other low-speed areas
Stopping Distance at 40km/h Approx. 3.0m (dry asphalt road)
Stopping Distance at 60km/h Approx. 8.7m (dry asphalt road)
Lightweight Foldable Anti Ram Vehicle Barrier with Built-in Wheels for Quick Relocation
Six Key Advantages
  • Warning and Interception Integrated - Dual Defense: High-visibility engineering yellow provides long-distance visual warning. When a vehicle ignores the warning and intrudes, physical interception is automatically triggered. From alert to stop - one device completes both steps.
  • Efficient Braking - Short-Distance Stop: Pure mechanical braking based on lever principle. Upon impact, the front wheels are lifted to redirect kinetic energy to the ground, combined with rubber pad friction to dissipate energy. Stopping distance of only 8.7 meters at 60km/h - no external power supply or electronic control required.
  • Lightweight Design - Single-Operator Operation: Weighing only 25kg with built-in wheels, one person can handle the entire process from warehouse retrieval and on-site deployment to post-use recovery - no mechanical assistance required.
  • Foldable Storage - Space Saving: Folded height reduces from 1080mm to 365mm - volume reduced by nearly two-thirds. Increased transport loading capacity and reduced warehouse footprint - lowering both logistics and storage costs.
  • All-Weather Durability - Strong Adaptability: Outdoor-grade electrostatic spraying provides rust resistance, corrosion resistance, and UV resistance. Adapts to temperatures from -20°C to 60°C and withstands rain, snow, and intense sunlight - no special maintenance required.
  • Safe and Eco-Friendly - Recyclable: Main body made of high-strength aluminum alloy - impact-resistant, inherently non-combustible, and produces no sparks upon impact, eliminating secondary fire risks. Material is 100% recyclable, meeting green construction requirements throughout its entire lifecycle.
Lightweight Foldable Anti Ram Vehicle Barrier with Built-in Wheels for Quick Relocation Lightweight Foldable Anti Ram Vehicle Barrier with Built-in Wheels for Quick Relocation Lightweight Foldable Anti Ram Vehicle Barrier with Built-in Wheels for Quick Relocation Lightweight Foldable Anti Ram Vehicle Barrier with Built-in Wheels for Quick Relocation
Advantage Comparison
Comparison Item Tomarukun Traffic Cones Concrete Barriers
Warning Function ✅ High-visibility yellow + optional LED ✅ Reflective strips ❌ None
Physical Interception ✅ Stops at 8.7m from 60km/h ❌ Collapses upon impact ✅ Rigid interception
Weight 25kg Lightweight Hundreds of kilograms
Mobility Push and go Carry by hand Requires crane
Foldable Storage ✅ Height reduces by nearly two-thirds ❌ Non-foldable ❌ Non-foldable
Operators Required 1 person 1 person Crane + multiple personnel
Deployment Time 1 minute 1 minute Several hours
Eco-Friendly Material ✅ Aluminum alloy, recyclable ❌ Plastic, hard to degrade ✅ Recyclable but energy-intensive
Secondary Risk Non-flammable, energy directed to ground No interception function Rigid impact causes severe damage
Lightweight Foldable Anti Ram Vehicle Barrier with Built-in Wheels for Quick Relocation

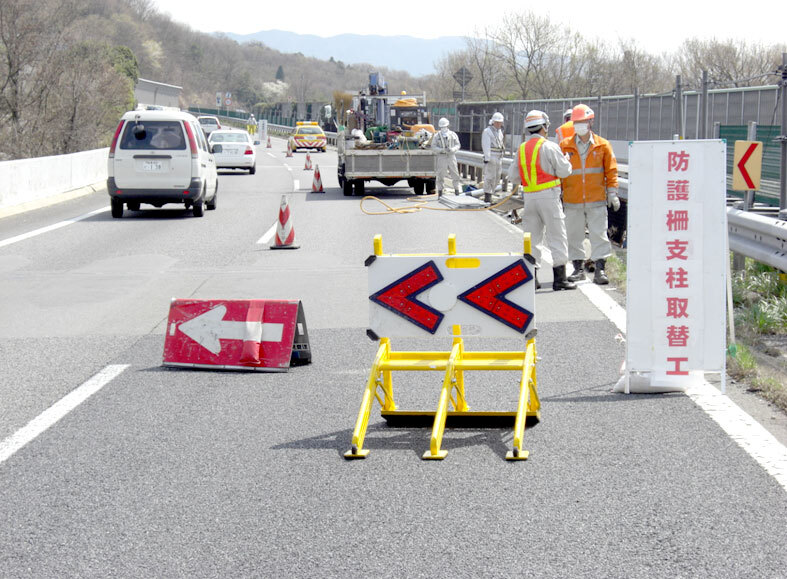

Application Scenarios & Usage Methods
Applicable Scenarios
Scenario Category Specific Description
Municipal Road Construction Perimeter protection for urban road repairs, pipeline installation, pavement renovation, and other road-occupying operations
Road Maintenance Operations Routine maintenance and minor repairs on highways, national roads, and provincial roads
Temporary Work Zones Short-term road-occupying operations such as power repairs, communication construction, landscaping and pruning
Traffic Flow Guidance Lane closures, road diversions, split-flow guidance
Parking Lots / Residential Areas Temporary control at entrances/exits, isolation for internal road construction
Usage Methods
  • Standalone Use: Place one Tomarukun directly at a single work point, serving both warning and interception functions. Suitable for small work zones with limited space.
  • Combined Use (Recommended): Outer layer (20m ahead): Place 2-3 cones for early warning -> Middle layer (10m ahead): Place Tomarukun for interception -> Rear layer: Work zone. Cones and Tomarukun work together to form a three-level protection system of "warning-interception-work zone."
  • Multi-Unit Lined Use: For wider work surfaces, multiple Tomarukun units can be arranged side by side.
Operation Flow
Deployment: Push to designated location -> Unlock the folding lock buckle -> Lower the front support arm -> Ensure rubber pad fully contacts the ground -> Ready
Storage: Lift the front support arm -> Fasten the folding lock buckle -> Push to storage location
Lightweight Foldable Anti Ram Vehicle Barrier with Built-in Wheels for Quick Relocation Lightweight Foldable Anti Ram Vehicle Barrier with Built-in Wheels for Quick Relocation Lightweight Foldable Anti Ram Vehicle Barrier with Built-in Wheels for Quick Relocation
Product Q&A
Q: What is the main purpose of the product?
A: Placed at the perimeter of work zones, it warns oncoming vehicles to slow down with its high-visibility yellow color, and stops vehicles that lose control and intrude, protecting construction personnel and equipment.
Q: How does the product achieve braking?
A: Through a purely mechanical structure requiring no external power. Upon vehicle impact, the lever mechanism lifts the front wheels, redirecting impact force to the ground, combined with rubber pad friction to dissipate energy and achieve smooth braking.
Q: What is the stopping distance?
A: On dry asphalt roads, approximately 8.7 meters at 60km/h, and approximately 3.0 meters at 40km/h.
Q: Can one person operate it?
A: Yes. Weighing only 25kg with built-in wheels, one person can handle pushing, deployment, and storage from start to finish.
Q: How large is it when folded?
A: Height reduces from 1080mm when deployed to 365mm when folded - volume reduced by nearly two-thirds for convenient transport and storage.
Q: Can it be used at night?
A: Yes. The product itself is high-visibility engineering yellow, and an optional LED indicator board is available for nighttime and low-visibility conditions.
Q: What climate conditions can it handle?
A: The surface features outdoor-grade electrostatic spraying - rust-proof, corrosion-resistant, and UV-resistant. It operates normally in temperatures from -20°C to 60°C.
Q: What are the advantages over ordinary traffic cones?
A: Cones only provide warning and collapse upon impact. Tomarukun provides both warning and physical interception braking - dual protection in one device.
Q: What are the advantages over concrete barriers?
A: Concrete barriers weigh hundreds of kilograms and require a crane to move. Tomarukun weighs only 25kg - one person can push it and deploy it in 1 minute.
Q: How is it stored after use?
A: Lift the front support arm, fasten the folding lock buckle, and push it to the storage location.
Q: Is the LED indicator board standard?
A: No, it is an optional accessory. Users can purchase it separately based on actual needs.
Q: Does the rubber pad need regular replacement?
A: The rubber pad is a wear part. It should be inspected regularly based on usage frequency and wear condition, and replaced when worn to the wear line.
Q: Can the device be used again after a collision?
A: Minor collisions do not affect use. After severe collision, thoroughly inspect the main structure for deformation or damage - it can only be reused after confirming it is intact.
