Aluminum Sheet Mobile Vehicle Barrier Electrostatic Spraying Foldable
Aluminum Sheet Mobile Vehicle Barrier Electrostatic Spraying Foldable
Specifications
Brand Name :
RMHs
Model Number :
Parking blocker-JY
Place of Origin :
CHINA
MOQ :
500PCS
Price :
USD100~145/PCS
Payment Terms :
T/T,L/C
Supply Ability :
1000PCSper1 month
Delivery Time :
30
Packaging Details :
Carton packing 3800pcs 40-inch containers
Material :
Aluminum Rubber sheet
Weight :
13.4kg
Color :
Yellow
unfolded size :
1400*530*230mm
Surface treatment process :
Electrostatic spraying
Scope of application :
Low speed road
Construction :
foldable with wheels
Folding size :
L1100*W664*H200
Description

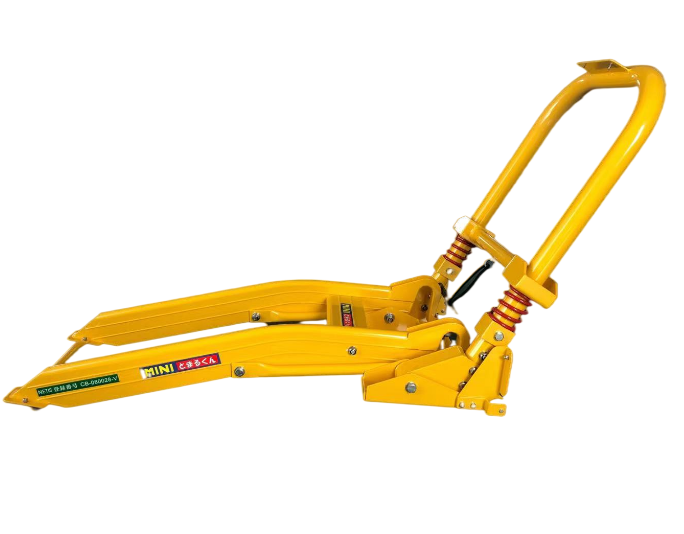

Electrostatic Spraying Yellow Foldable Aluminum Mobile Vehicle Barrier

The main purpose of the mini collision avoidance device is to forcibly stop small vehicles traveling at low speeds, but also to warn the driver to pay attention to the road ahead and slow down.

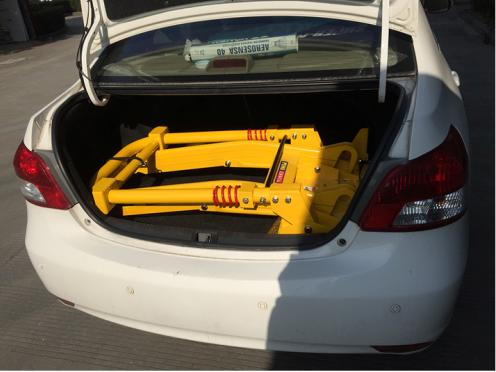

The mini crash-avoidance device weighs 13.4kg. The product has a foldable design. The folded size is only L1100*W664*H200. You can fold it up in the trunk of your car when not in use. Easy to carry. Three rubber panels are installed at the bottom of the mini collision avoidance device, which increases friction with the ground when impacted, forcing the car to stop. The device also has two shock absorbing springs that can withstand a certain amount of impact.


Mini crashproof also holds our LED light guide arrow board for direction indication.

Item Specification / Parameter
Product Name RMHs Mini Parking Barrier (Foldable Crash Barrier)
Material High-Strength Aluminum Alloy
Net Weight 20 kg
Deployed Size Approx. L 1m × W 0.66m × H 0.9m
Folded Size Approx. L 1.1m × W 0.66m × H 0.2m (Thickness)
Key Features 1. Foldable design for easy storage and transport
2. Bottom-mounted wheels for easy movement by one person
3. High-visibility engineering yellow for clear warning
4. Energy-absorbing buffer structure provides impact protection
Primary Use Vehicle isolation and warning in municipal construction, road maintenance, temporary work zones, etc.


Parking principle
When the small vehicle hits the mini barrier, the front wheel of the small vehicle is lifted by the mini barrier, and the momentum of the vehicle is directed downward to the ground, greatly reducing the forward power. The power is transferred to the shock absorber and rubber pad at the bottom of the equipment. Under the action of friction, the vehicle is finally stopped.


How to use the Mini Mobile Vehicle Barrier

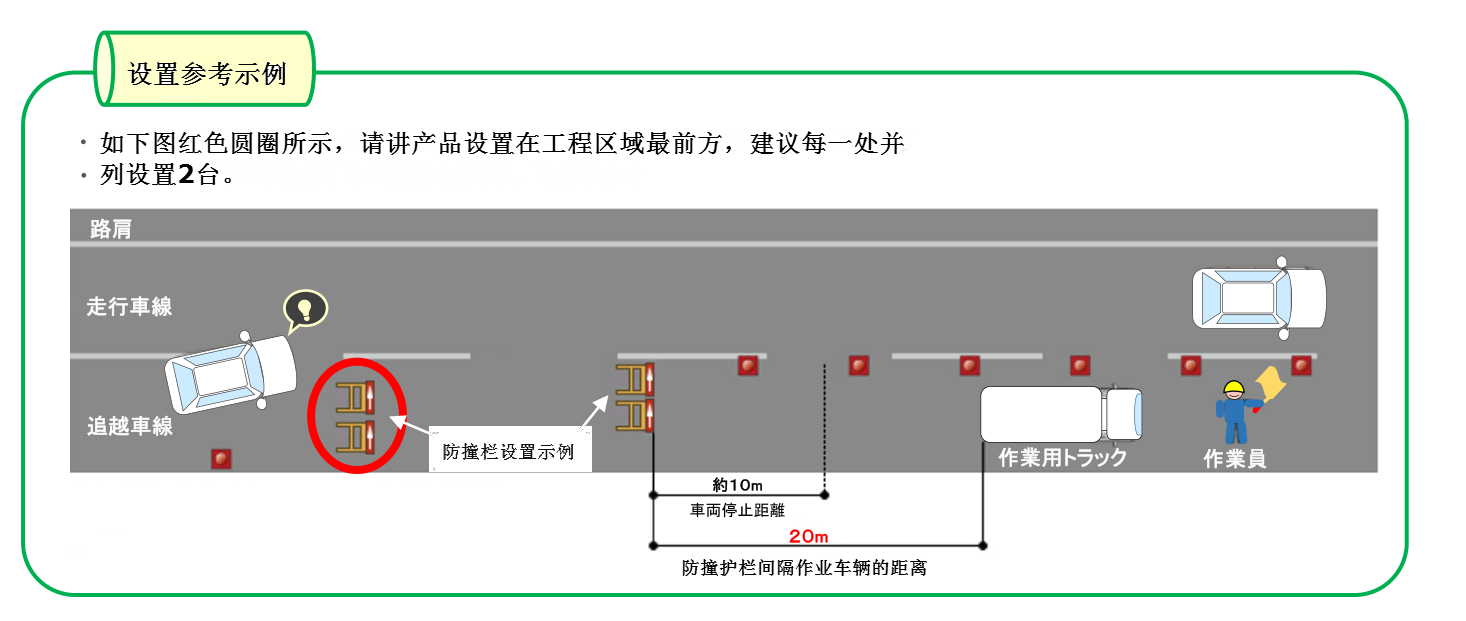

Setup diagram for the Mini Mobile Vehicle Barrier


Comparison Overview Table



Comparison Dimension RMHs Mini Parking Barrier Traditional Concrete Barrier
Core Safety ✅ Active Protection: Features an energy-absorbing buffer structure that can effectively stop low-speed vehicles. ⚠️ Passive Blocking: Relies solely on weight and rigid blocking, which can easily cause severe vehicle damage or rollovers.
Portability & Deployment ✅ Optimal: 20kg weight, equipped with wheels, foldable. A single person can quickly move and deploy it. ❌ Very Poor: Extremely heavy, requires large machinery for transport and placement. Deployment is time-consuming and labor-intensive.
Space & Transport ✅ Optimal: Foldable, compact size. Multiple units can fit in an ordinary car trunk. ❌ Very Poor: Immovable, permanently occupies space. Transport costs are extremely high.
Durability & Economy ✅ Long-Term Durability: Aluminum material is corrosion-resistant, can be reused for many years, resulting in low lifecycle cost. ✅ Extremely Durable: However, if damaged or relocated, it becomes scrap and cannot be reused.
Warning Effectiveness ✅ Bright & Long-Lasting: Engineered yellow coating, color is durable and eye-catching. ⚠️ Depends on Decals: Inherently dull color, requires reflective stickers that can easily peel off.

Aluminum Sheet Mobile Vehicle Barrier Electrostatic Spraying Foldable

Q&A

  1. How to use it?

    • Deploy: Unfold the product from its folded state until it locks into position.

    • Place: Push it to the area that needs isolating (e.g., in front of a work site). It remains stable under its own weight.

    • Store: Release the folding mechanism, fold it up, and use the bottom wheels to tow it away.

  2. Where should it be placed?
    Place it in temporary work zones, road openings, or around equipment, ensuring vehicles can see and avoid it before entering the hazardous area.

  3. Is one unit enough?
    Usually not. Multiple units should be placed in a continuous line to form a complete barrier, based on the size of the work area.

  4. Can it be used with other equipment?
    Yes, and it is recommended. For better effectiveness, place reflective cones in front of it as an advanced warning, and/or mount an LED arrow board or warning light on or beside it.
