Collapsible Car Park Vehicle Security Barriers Rubber Sheet
Collapsible Car Park Vehicle Security Barriers Rubber Sheet
Collapsible Car Park Vehicle Security Barriers Rubber Sheet
Collapsible Car Park Vehicle Security Barriers Rubber Sheet
Collapsible Car Park Vehicle Security Barriers Rubber Sheet
Collapsible Car Park Vehicle Security Barriers Rubber Sheet
Specifications
Brand Name :
RMHs
Model Number :
TOMARUKUN
Place of Origin :
CHINA
MOQ :
200PCS
Price :
USD490~600PCS
Payment Terms :
L/C,T/T
Supply Ability :
400PCSper1 month
Delivery Time :
30
Packaging Details :
Carton packing 208pcs 40-inch containers
Material :
Aluminum /Rubber sheet
Color :
Yellow/Orange
Structure :
Collapsible
Weight :
25KG
Scope of application :
Work area or restricted area on the road
Surface treatment process :
Electrostatic spraying
Description

Foldable Car Park Vehicle Security Barriers


The TOMARUKUN Collapsible Vehicle Safety Bollard is a modular safety protection device specifically designed for low-speed traffic areas. It is constructed from high-strength aluminum alloy and wear-resistant rubber. Utilizing an innovative "wheel-lift friction" braking principle, it achieves controlled deceleration in the event of an accidental vehicle collision, effectively protecting both personnel and vehicles.

The product features a lightweight structure (25kg), is equipped with swivel casters and a collapsible design, enabling rapid deployment and storage by a single person. Its surface is treated with electrostatic spray painting, offering excellent weather resistance and anti-corrosion properties. Paired with its high-visibility traffic yellow finish, it maintains a prominent warning effect even in complex environments.

The product has passed crash test certification from a professional Japanese laboratory and is widely applicable in scenarios such as municipal road construction, parking lot management, and temporary traffic control. It serves as an ideal upgrade over traditional concrete blocks and steel guardrails.










Collapsible Car Park Vehicle Security Barriers Rubber Sheet


Product Specifications

Item Specification
Model TOMARUKUN
Brand RMHs
Material Aluminum Alloy, Rubber
Weight 25 kg
Dimensions (W×L×H) 320 × 1070 × 860 mm
Color High-Visibility Traffic Yellow / Orange-Yellow
Surface Finish Electrostatic Spray Painting
Structural Features Foldable, with Swivel Casters
Manufacturing Process Welding, Bending
Applicable Scenarios Municipal Roads, Construction Zones, Parking Lots, Traffic Control Areas, etc.
Safety Certification Passed Japanese Automotive Laboratory Crash Test

Collapsible Car Park Vehicle Security Barriers Rubber Sheet

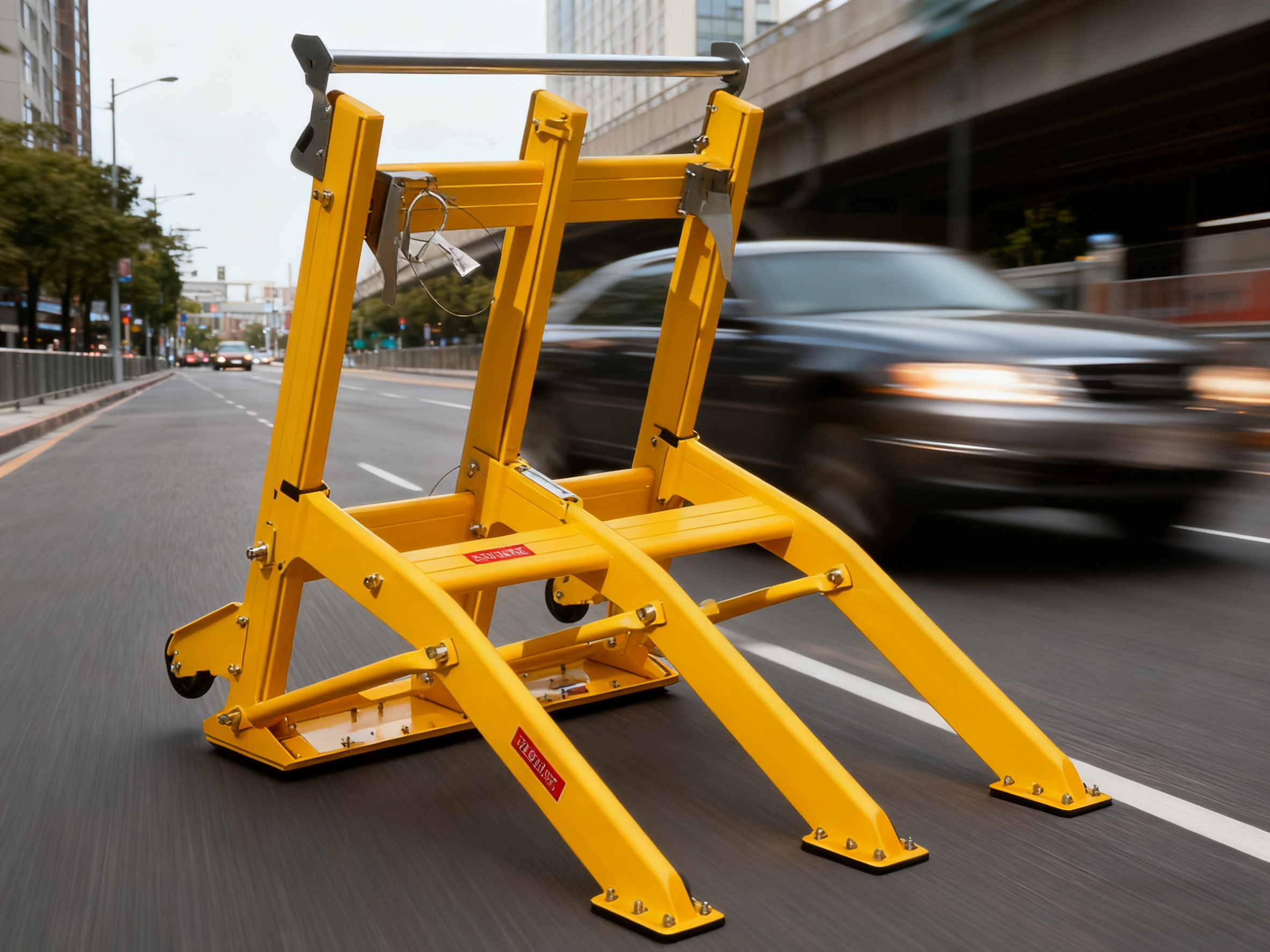

Stopping Principle

When a vehicle collides with this device, a controlled stop is achieved primarily through the following two-step physical mechanism:

  1. Lifts Front Wheels, Cuts Power
    The unique structure of the device causes the vehicle's front wheels to be lifted upwards upon impact. This results in the drive wheels losing contact with the ground or experiencing severe slippage, thereby cutting off the vehicle's forward propulsion power.

  2. Frictional Braking, Forces Deceleration
    Simultaneously, the high-performance rubber plate at the base of the device, which maintains firm contact with the ground, generates substantial sliding friction. This frictional force acts directly on the vehicle's chassis or impact point, rapidly dissipating its kinetic energy and forcing the vehicle to decelerate to a complete stop within a short distance.

Feature: This process provides a controlled, non-rigid interception. It converts the vehicle's impact kinetic energy into heat through friction, effectively preventing sudden stops, rollovers, or severe deformation of the vehicle. This design minimizes secondary injuries to occupants and damage to the construction zone.


Advantages of this product: light, foldable, easy to transport and move.


The design is very clever: wear-resistant rubber wheels are installed at the bottom for easy single-person operation


Color: Traffic yellow RAL 1003

Our products are use Pantone color card ral1023 or ral1003 color, the color are very eye-catching.

Product Advantages & Comparative Analysis

The following presents a core analysis of this product's advantages compared to potential alternatives (such as traditional water-filled barriers/concrete blocks, simple plastic cones, and fixed steel guardrails) in a table format:



Comparison Dimension Our Product (TOMARUKUN Aluminum Interceptor Bollard) Traditional Alternatives (Water-Filled Barriers/Concrete Blocks/Steel Guardrails, etc.)
Safety ✅ Active Buffered Interception: Controlled deceleration via wheel-lift and friction principle, reducing vehicle damage and occupant injury risk.
✅ Certified Reliability: Passed professional crash tests (e.g., Japanese lab), with quantifiable safety performance.		 ⚠️ Passive Blocking: Rigid impact often causes severe vehicle damage and higher occupant injury risk.
⚠️ Lack of Verification: Most lack standard crash test validation; safety relies on own weight/strength.
Functionality ✅ Integrated Warning & Interception: High-visibility yellow + compatible LED boards for strong warning; also provides effective low-speed interception. ⚠️ Single Function: Typically offers either warning or blocking function only, difficult to combine both.
Portability & Deployment ✅ Quick & Lightweight: Only 25kg, with swivel casters, easily moved and rapidly deployed modularly by a single person.
✅ Foldable: Compact storage volume, extremely efficient for transport and storage.		 ❌ Heavy & Inefficient: High weight (concrete blocks), requires special equipment for movement, time-consuming deployment, poor flexibility.
❌ Fixed Volume: Occupies large space during storage/transport, high logistics cost.
Durability & Maintenance ✅ Weather & Rust Resistant: Aluminum + electrostatic coating, corrosion-resistant, suitable for long-term outdoor use, long lifespan.
✅ Easy Maintenance: Simple structure, easy to replace parts or recycle material if damaged.		 ⚠️ Prone to Damage/Deterioration: Plastic becomes brittle/cracks, concrete cracks easily, steel requires regular anti-rust maintenance.
⚠️ High Maintenance Cost: Often requires complete replacement if damaged, poor reparability.
Environmental & Economic ✅ Eco-friendly & Energy-efficient: Aluminum is 100% recyclable, lower energy consumption in production.
✅ Lower Lifecycle Cost: While initial purchase price may be higher, its long lifespan, low maintenance, reusability, and saved labor/logistics costs lead to significant long-term comprehensive benefits.		 ⚠️ Poor Environmental Profile: Concrete/plastic are difficult to degrade or recycle, posing environmental burden.
⚠️ High Hidden Costs: High costs for handling, storage, maintenance, and replacement; uneconomical for long-term use.

Summary of Core Advantages:
This product is not merely a simple "obstacle" but rather a new-generation engineering safety solution that integrates "active safety protection, highly effective visual warning, rapid flexible deployment, and long-lasting durability and economy." It is particularly suitable for modern scenarios requiring high frequency, fast response, and emphasized safety, such as municipal maintenance, temporary traffic control, and event security. It ensures safety performance while significantly reducing the total lifecycle operational and management costs.


Collapsible Car Park Vehicle Security Barriers Rubber Sheet


Product Q&A

Q1: What is this product?
A: This is a collapsible safety bollard used for vehicle control, primarily deployed in parking lots, construction zones, and other areas requiring vehicle speed reduction or interception.

Q2: How does it stop a vehicle?
A: It uses a wheel-lift and ground-friction principle. Upon impact, the vehicle’s front wheels are lifted while a rubber base plate creates friction with the ground, allowing the vehicle to decelerate smoothly and avoid sudden stops or rollovers.

Q3: How heavy is it? Can one person move it?
A: It weighs only 25 kg and is equipped with swivel casters, allowing one person to easily move and deploy it.

Q4: Is it suitable for long-term outdoor use?
A: Yes. It is made of aluminum alloy with an electrostatic spray coating, providing rust and corrosion resistance for various weather conditions.

Q5: What are its key advantages?
A:

  • ✅ Controlled Safety: Stops vehicles through buffered friction, reducing vehicle damage and personal injury.

  • ✅ Flexible & Portable: Foldable design with wheels enables quick deployment and storage.

  • ✅ Durable & Eco-friendly: Recyclable aluminum, long service life, low maintenance cost.

  • ✅ High Visibility: Bright yellow finish, compatible with LED indicator boards.

Q6: How is it typically deployed?
A:

  • Urban low-speed roads: Place about 10 meters before and after the work zone, typically in sets of two.

  • Highways/national roads: Place 50–100 meters behind the work zone, in sets of three with about 10 meters between each unit.

Q7: Has it passed safety tests?
A: Yes, it has passed crash tests conducted by a professional Japanese automotive laboratory, verifying its safety performance.

Q8: Why choose this over traditional concrete blocks or steel barriers?
A: Traditional concrete blocks/steel barriers are heavy, difficult to move, and can cause severe vehicle damage upon impact. This product is lightweight, flexible, absorbs impact energy, and is reusable, offering lower overall costs and greater safety.





















品牌:RMHs 重量:25KG 材质:铝材,橡胶 型号:TOMARUKUN 表面工艺:静电喷涂 适用范围:市政道路隔离警示栏 颜色:黄色/橘黄色 尺寸:W320mm*L1070*H860mm 结构:可折叠,带车轮 制作工艺；焊接,折弯 "小型汽车拦截装置主要适用于车辆低速行驶的市政道路,可搭配悬挂LED导光板指示,设置于施工现场的外围.产品醒目的外观可以起到警示作用,如司机驾驶不当或误入施工禁地时,行驶车辆能通过撞击该产品,以可控的方式使撞击车辆停止,一定程度上保护司机和现场施工人员的生命安全,警示和拦截作用明显. 小型主要由环保铝材折弯,焊接而成,材料具有不易燃性,在发生碰撞事故后,可减少次生灾害.产品结构合理,重量为25kg,可折叠的设计,收放轻松,底部两侧安装了万向轮,可便捷高效的完成移动部署工作." "该产品用于拦截低速行驶的车辆,车辆通过撞击该产品,由于装置底部的橡胶板与地面摩擦,强制车辆停下来.产品重量为25kg,底部的橡胶轮便于移动部署,产品是可折叠的,便于运输和储存.该产品在日本进行了碰撞测试,测试表明车辆在撞击该装置后,安全距离缩短了.在日本非常热销,我司每月稳定出口日本.The mobile buffer device is used to intercept low-speed vehicles. When the vehicle hits the product, the rubber plate at the bottom of the device is rubbed against the ground to force the vehicle to stop. The weight of the product is 25kg, and the bottom is equipped with rubber wheels, which is convenient for mobile deployment, and the foldable design is convenient for transportation and storage. The product has undergone a crash test in Japan, and the test shows that the safety distance is shortened after the vehicle hits the device. It is very popular in Japan, and our company exports to Japan steadily every month." "Product Description The small car interception device is mainly suitable for municipal roads where vehicles are driving at low speeds. It can be equipped with a suspended LED light guide plate to indicate and set up on the periphery of the construction site. The eye-catching appearance of the product can serve as a warning. When the driver drives improperly or enters the forbidden construction site by mistake, the driving vehicle can hit the product to stop the impacting vehicle in a controlled manner to protect the life of the driver and on-site construction personnel. The warning and interception functions are obvious. Tomarukun is mainly made of environmentally-friendly aluminum by bending and welding. The material is non-flammable and can reduce secondary disasters after a collision. The product has a reasonable structure, weighs 25kg, and has a foldable design that can be easily retracted and unfolded. Universal wheels are installed on both sides of the bottom to complete the mobile deployment work conveniently and efficiently." 产品适用于车辆低速行驶的施工地段,如市政道路维修,市政道路养护等路段. "Scope of application The product is suitable for construction sites where vehicles are traveling at low speeds, such as municipal road maintenance, municipal road maintenance and other road sections." "1. 精选吸收铝材,环保,可回收,质量安全可靠 2.外部静电喷涂工艺,不易生锈,适合室外天气条件 3.高亮醒目交通黄,可以搭配我司的LED箭头板使用,警示作用明显 4.配备可移动便捷车轮,方便移动,易于开展模块化部署工作 5.产品可折叠的设计,易于运输和储存 6.重量轻,结构设计合理,单人可完成安装,拆卸,收纳的工作." "Product advantages 1. Environmentally-friendly absorption aluminum material, recyclable, safe and reliable in quality. 2. The external electrostatic spraying process is not easy to rust and is suitable for outdoor weather conditions. 3. The bright and eye-catching traffic yellow can be used with our LED arrow board, which has obvious warning effect. 4. Equipped with movable and convenient wheels, convenient to move and easy to carry out modular deployment. 5. The product is foldable design, easy to transport and store. 6. Light weight, reasonable structure design, single person can complete the work of installation, disassembly and storage." 该产品已通过日本汽车实验室测试,详见测试视频. "Test This product has passed the test of Japanese automobile laboratory, please refer to the test video." "设置方法一:市内行驶速度≤60KM/H ,设置于施工道路前后方各10米处,一般2台为一组,可视道路情况增加数量,可配合方向指示板或者禁止进入标牌使用. 设置方式二:高速国道等车辆行驶速度较快的路段, 设置于施工路段后方50-100米位置,3台为一组,每台的间距为10米,具体使用数量视施工路段具体而定." 停车原理:车辆撞击该装置后,车辆的前轮被抬起,失去了前进的动力,并将动力引导到地面.装置底部的橡胶板与地面摩擦迫使车辆停止下来. 产品的规格简单

产品概述 品牌: RMHs 型号: TOMARUKUN 重量: 25KG 材质: 优质铝材,高性能橡胶 表面工艺: 静电喷涂 颜色: 高亮交通黄/橘黄色 尺寸: W320mm * L1070mm * H860mm 结构: 可折叠设计,配备移动万向轮 制作工艺: 焊接,折弯翻译 表格

产品优势 材质可靠: 选用环保可回收铝材,安全耐用. 工艺防锈: 外部采用静电喷涂工艺,适应户外多变气候,不易生锈. 警示性强: 高亮交通黄色涂装,可搭配LED箭头板,警示效果显著. 移动便捷: 配备万向轮,轻松移动,支持模块化快速部署. 储运方便: 可折叠设计,节省存储与运输空间. 操作简便: 轻量化设计,结构合理,单人即可完成安装,拆卸与收纳. 翻译

不要表格

核心功能与原理 拦截原理: 车辆撞击装置时,前轮被抬升导致驱动力丧失,同时装置底部的橡胶板与地面产生摩擦,迫使车辆减速停止. 适用场景: 市内道路(车速≤60km/h),高速公路/国道施工路段后方缓冲区域. 部署建议: 市内低速路段:在施工区域前后方各10米处设置,通常2台一组,可根据路况增加. 高速/国道:在施工路段后方50-100米处设置,3台为一组,间距约10米,具体数量依实际情况而定.翻译

High quality Friction Increases Car Security Bollard Electrostatic Spraying from China, China's leading product market Electrostatic spraying car security bollard product, with strict quality control Aluminum Vehicle Security Barriers factories, producing high quality Friction Increases car security bollard Products. 结合以上 产品的Q&A 简单中文

翻译英文

产品规格,表格简单的

翻译

停车原理

翻译

产品的优势及优势对比

翻译

High quality Collapsible Car Park Vehicle Security Barriers Rubber Sheet from China, China's leading product market Rubber sheet Vehicle Security Barriers product, with strict quality control Collapsible Vehicle Security Barriers factories, producing high quality Electrostatic spraying Vehicle Security Barriers Products. 结合以上 产品的Q&A问答,简单一点

产品的简单知识问答

翻译
