Blade 1800*850*350mm Truck Mounted Attenuator
Blade 1800*850*350mm Truck Mounted Attenuator
Specifications
Brand Name :
RMHs
Place of Origin :
CHINA
MOQ :
30PCS
Price :
USD4700~5300PCS
Payment Terms :
L/C,T/T
Supply Ability :
30PCSper1 month
Delivery Time :
30
Packaging Details :
wooden box 72pcs 20-inch containers
Material :
Iron
Color :
Red white 3Mreflective film
Weight :
98kg
Size :
L1800mm*W850*H350
Structure :
Scalable
Scope of application :
Truck rear bumper
Description

Truck rear anti-collision, anti-jamming body Blade Truck Mounted Attenuator


The RMHs Anti-collision Barrier is a truck rear safety system based on precise height matching (100 cm vs. sedan 75 cm), featuring a "steel-aluminum composite energy-absorbing structure" and supporting "one-touch retraction." It can reduce the risk of underride to nearly zero in rear-end collisions and decrease occupant injury indices by approximately 50%. It is a "removable rear protective device" .














Basic Specifications



Item Parameter Description
Model RMHs Retractable Type
Standard Dimensions Width 1800 mm × Length 850 mm × Height 350 mm
Material Composition Channel steel frame + Stainless steel connectors + Aluminum alloy buffer blocks
Weight Approx. 98.3 kg (adjusted according to vehicle model)
Applicable Vehicle Weight 2.0 ~ 4.0 tons (trucks/trailers)
Installation Method Suspended, mounted on the rear chassis of the vehicle
Structural Features Retractable design, equipped with wheels
Optional Types With step plate / Without step plate
Color Standard red and white (customizable)
Core Functions 1. Prevent small vehicles from underriding
2. Absorb collision impact force
3. Provide conspicuous warning to following vehicles

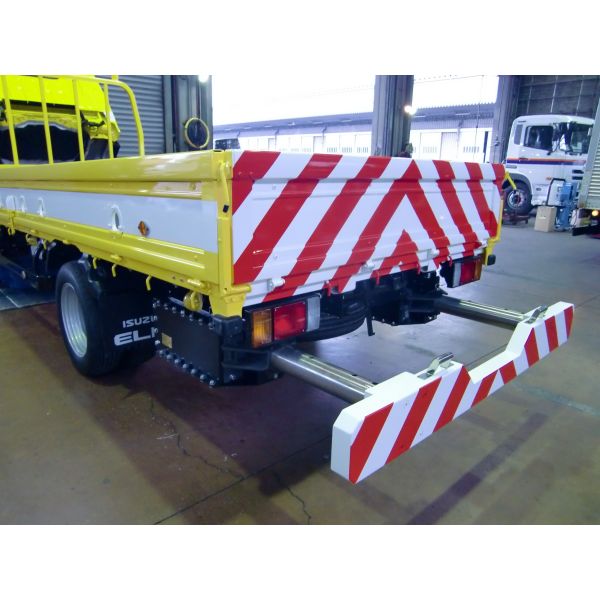

A "retractable anti-collision bar" specifically designed for truck rears—deployed when parked to prevent underride in rear-end collisions, retracted when driving to avoid obstruction.


Blade 1800*850*350mm Truck Mounted Attenuator



Advantages Comparison Summary



Traditional Fixed Anti-Collision Bar RMHs Intelligent Anti-Collision Bar
Permanently protruding, affecting maneuverability Deployed when in use, retracted while driving
Single rigid protection Dual protection: structural defense + energy absorption
Ordinary steel prone to rust Stainless steel + anti-rust treatment + electrostatic spraying
No enhanced warning functionality Triple warning: high-intensity reflective + safety color scheme
Standard size, poor adaptability Fully customized according to vehicle dimensions
May violate regulations by increasing vehicle length Retracted state fully complies with regulations


The RMHs Anti-Collision Bar is not just a physical protection device but a comprehensive safety solution that integrates patented energy-absorption technology, folding design, international safety certification, and full customization services. It redefines truck rear safety standards through technological innovation.

Blade 1800*850*350mm Truck Mounted Attenuator

Procurement Checklist

  • Vehicle model information confirmed

  • Vehicle total weight falls within the applicable range

  • Installation space dimensions measured

  • Selection made between models with or without step plate

  • Customization requirements clarified (if applicable)

  • Installation method confirmed

  • Delivery timeline and warranty policy understood

Blade 1800*850*350mm Truck Mounted Attenuator
Q1: What is the product specification of the Blade Truck Mounted Attenuator mentioned?
A1: The specification of this Blade Truck Mounted Attenuator is 1800*850*350mm (length*width*height), which is a core parameter defining the product's size and installation adaptation range.
Q2: Where is this Blade Truck Mounted Attenuator produced?
A2: It is a high-quality product from China, produced by Chinese factories specializing in Blade crash cushion attenuators.
Q3: What guarantee does the product have in terms of quality?
A3: The product is produced by factories with strict quality control standards for Blade crash cushion attenuators. Strict quality control runs through the entire production process, ensuring that the final product is of high quality.

Q4: What is this product?

A4: This is a rear safety device specifically designed for large vehicles such as trucks and vans, commonly known as an "underride guard." Its main functions are to prevent smaller vehicles from sliding under large trucks during rear-end collisions, absorb collision energy, and protect both vehicles and occupants.

Q5: Why is it necessary to install this?

A5: According to accident data, over 70% of rear-end collisions involving trucks result in the smaller vehicle sliding underneath, causing severe casualties. Installing the anti-collision barrier can reduce this "underride" risk to nearly zero, making it a highly cost-effective safety upgrade.

Q6: Can my vehicle be equipped with this?

A6: The product is suitable for various trucks (pickups, vans, trailers, etc.) with a total weight of 2.0-4.0 tons. Before purchasing, provide your vehicle model and rear photos, and we can confirm compatibility for you.
