Driver protection device Rear end collision prevention Truck Mounted Attenuator

The truck mounted attenuator is installed in the rear of the truck. The red and white reflective film has an obvious warning function to the driver. If a rear end accident occurs, it can reduce the impact force produced by the vehicle collision, and prevent the front body of the car from entering the rear of the truck during the collision, which greatly protects the safety of the driver and the vehicle.

When the accident occurs, if the truck mounted attenuator is not installed, the front part of the car will be stuck at the rear of the truck due to impact. The accident will be very serious and may cause serious injury to the driver of the rear vehicle.

If a crash beam is installed, the extended part of the beam can not only cushion the impact force, but also prevent the car from hitting the bottom of the truck.

Product Specifications Description

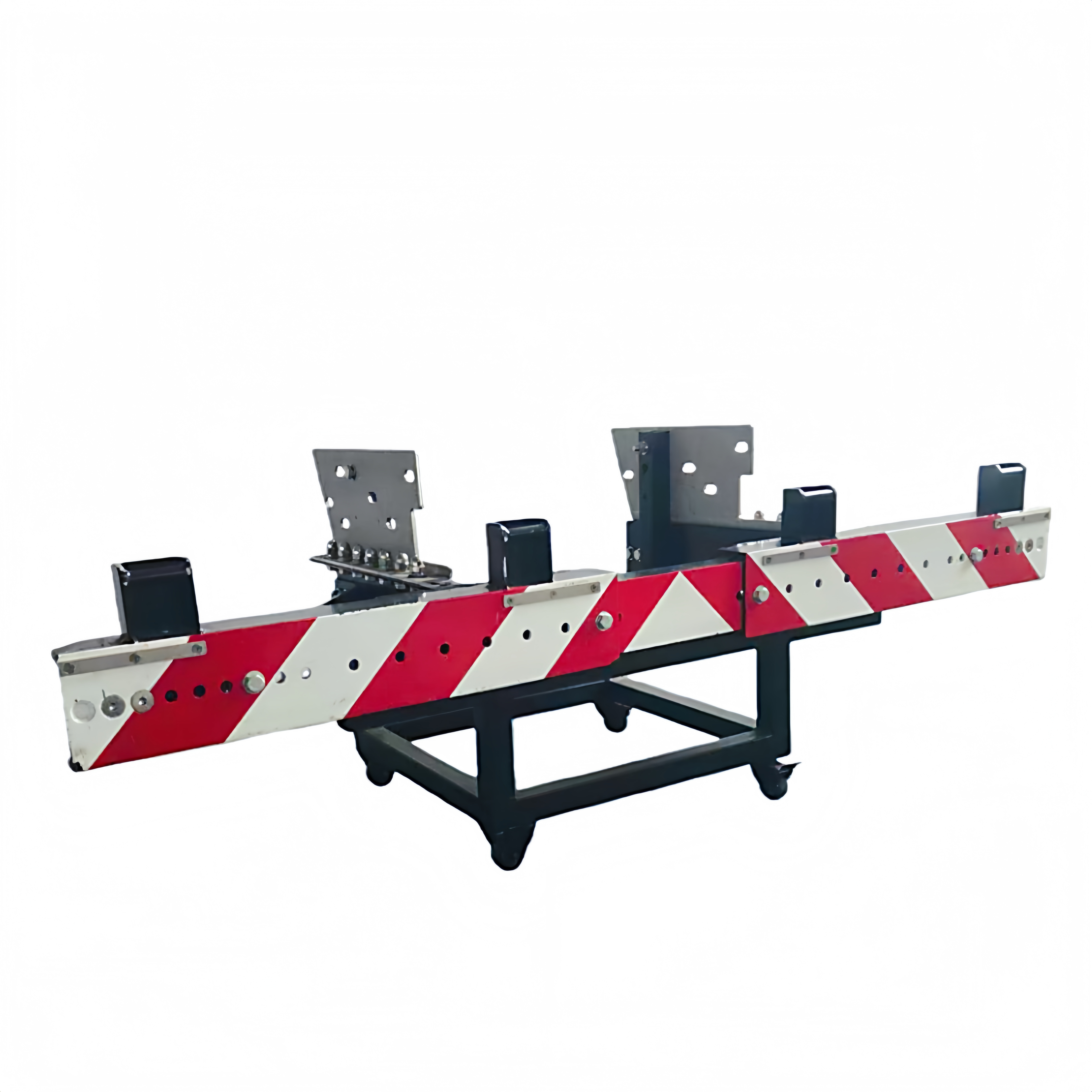

Product Name: RMHs Retractable Vehicle Rear Safety Protection Device(Truck Mounted Attenuator)
Design Origin: Design solution from Japan's HANAI CO.,LTD
Market Positioning: Industry-recognized "Lifeline for Truck Rear" level safety protection product

I. Physical Specifications

• Standard Dimensions: Width 1800mm × Length 850mm × Height 350mm (Full customization supported)

• Curb Weight: Approximately 98.3kg (Fine-tuned based on vehicle model)

• Load Capacity Range: Compatible with commercial vehicles weighing 2.0-4.0 tons

II. Material Structure

• Main Frame: High-strength channel steel structural components

• Key Connectors: 304 stainless steel material

• Energy Buffer System: Aluminum alloy energy absorption module

• Surface Treatment: Multi-layer electrostatic powder coating process

III. Mechanical Design

• Core Structure: Retractable design

• Mobility: Wheel set

• Installation Method: Chassis-mounted suspension installation

• Configuration Options: Two models available: with anti-slip step plate / without step plate

IV. Visual System

• Standard Coating: International safety colors (red and white alternating)

• Customization Service: Supports corporate VI color scheme customization

V. Functional Features

1. Active Protection Function

   • High-visibility warning system

   • Road safety warning signage

2. Passive Protection System

   • Three-stage energy absorption mechanism

   • Underride prevention structural design

   • Impact force dispersion technology

VI. Applicable Scenarios

• Compatible Vehicle Types: Pickup trucks/box trucks/semi-trailers/full trailers, etc.

• Usage Scenarios:
  ✓ Temporary stops on highways
  ✓ Construction operations on urban roads
  ✓ Loading/unloading operations in logistics parks
  ✓ During vehicle maintenance and repair periods

VII. Safety Effectiveness

1. Height-Matched Protection

   • Optimized design for sedan front-end height (70-80cm)

   • Effectively protects key head and chest areas of the following driver

2. Dual Protection Mechanism

   • Primary protection: Structural blocking to prevent vehicle underride

   • Secondary protection: Energy absorption through buffer materials

3. Damage Control Benefits

   • Reduces accident casualty rate by ≥60%

   • Decreases property damage by ≥45%

VIII. Technical Highlights

• Patented Retractable Structure: Achieves perfect balance between protection and convenience

• Materials Science Application: Optimal ratio of rigidity and toughness

• Ergonomic Design: All operations can be completed by a single person

Product Advantage Comparison
