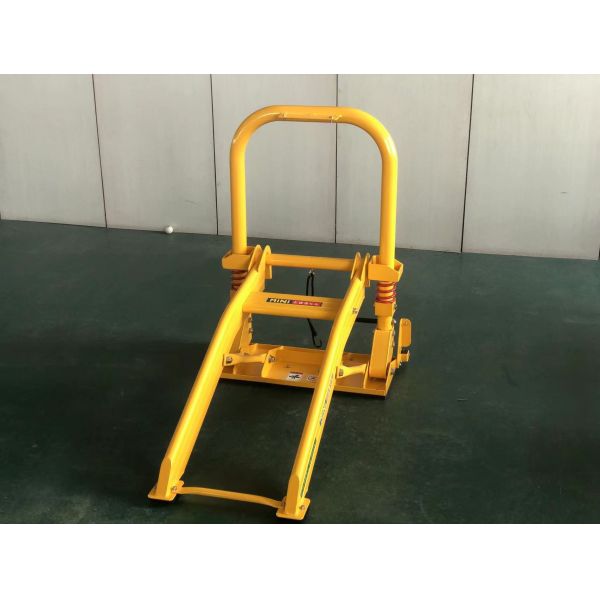

Rustproof Movable Anti Ram Barrier
Rustproof Movable Anti Ram Barrier
Specifications
Brand Name :
RMHs
Model Number :
MIni tomarukun
Place of Origin :
CHINA
MOQ :
200PCS
Price :
USD490~600PCS
Payment Terms :
L/C,T/T
Supply Ability :
500PCSper1 month
Delivery Time :
30
Packaging Details :
Carton packing 130pcs 20-inch containers
Description

Movable Storage Guardrail Force Traffic To Stop At A Certain Distance


This mobile vehicle guardrail is a compact board barricade that can easily be stored in the truck of a standard-size vehicle by a single person.this device gradually brings errant vehicles entering the work area to a full stop in a short distance.Because it travels along with the vehicle and stops it in a short distance, it can save boyh the driver's and worker's lives.

Product Specifications



Item Specification
Product Name Mini Mobile Vehicle Barrier
Primary Material Aluminum, Specially Designed Rubber
Weight 20 kg
Folded Dimensions L 1100mm × W 664mm × H 200mm
Primary Function To intercept low-speed small vehicles and prevent them from accidentally entering work zones.
Application Perimeter protection for work zones such as road maintenance, public utility sites, and construction sites.


The compact size makes it usefull for both narrow and general roads.

Compact with amazing speces!

Features:

•High visibility makes safe work possible

•Can be used even on narrow roads

•Equipped with wheels for easy loading and unloading on transportation vehicles

•Lightweight for easy storage even by a single person

MINI tomarukun guides vehicle safely Vehicle approaches workers

Easy to move easy to storage


How to set up?

♦Compact and lightweight so setup and moving is easy!


Note:Be careful of pinching your fingers or hand when handing MINI TOMARUKUN.


♦Exanple of actual layout in Japan

Position each MINI TOMARUKUN at least 20M ahead of the work truck.

(Secure a distance required to stop a standard-size vehicle approaching the site at a speed of 60km/h)

Advantage Comparison



Aspect This Mini Barrier Traditional Heavy Barriers (e.g., Concrete Blocks) Traditional Water-Filled Barriers (e.g., Plastic Barriers)
Core Advantage Lightweight & Agile, Fast Deployment High Blocking Force, Impact Resistant Low Cost, Readily Available
Deployment Place directly, wheeled for moving, set up by one person in 1 min Requires machinery for lifting/placement, time & labor intensive Requires filling with water/sand for weight, needs at least 2 people
Mobility & Storage Foldable, fits easily in a car trunk for transport Extremely difficult to move, permanently occupies site space Bulky even when empty, requires truck for transport
Total Cost One-time investment for long-term use. Saves significant labor and equipment rental costs. High initial/rental cost, plus ongoing costs for lifting and transport. Low unit price but high wear, needs frequent replacement, high hidden labor costs.
Best For Low-to-medium speed, temporary daily maintenance & small-scale work zones High-speed, permanent or long-term fixed isolation Low-speed, short-term, very limited budget temporary warnings


It targets daily, low-to-medium speed work zones. Its foldable design and wheels solve the core pain points of traditional barriers: being too heavy to move, too bulky to transport, and too awkward to store, striking the best balance between protection and convenience.

Rustproof Movable Anti Ram Barrier














Storage size compared with TOMARUKUN


Product Knowledge Q&A

1. Q: What is this?
A: It is a foldable, wheeled portable metal barrier, primarily placed around work zones to prevent low-speed vehicles from accidentally entering.

2. Q: How is it used? Can one person operate it?
A: Yes. It weighs only 20 kg, has wheels at the bottom for towing by one person. After use, it can be folded and stored in a car trunk.

3. Q: How does it stop a vehicle?
A: Primarily through three specially designed rubber pads at its base, which create strong friction with the ground to slow and stop the vehicle. Its structure also helps cushion the impact.

4. Q: How can it be made more visible?
A: A custom LED arrow board can be mounted on top, emitting flashing lights to alert drivers from a distance.

5. Q: What are its advantages compared to concrete blocks and plastic water-filled barriers?
A:

  • Vs. Concrete Blocks: It is much more portable, requires no crane, and can be moved and set up by one person.

  • Vs. Plastic Water-filled Barriers: It requires no filling, folds compactly for trunk storage, and is sturdy and durable for long-term reuse.

6. Q: Where is it best used?
A: It is ideal for temporary blocking in low-speed scenarios like daily road maintenance, utility repairs (water/electricity/gas), and short-term construction work.





















品牌:RMHs 材质:铝型材 重量；20 KG 折叠尺寸:L1100*W664*H200 展开尺寸:L1040*W664*H894 表面工艺:静电喷涂 适用范围:市政道路隔离警示栏 结构:可折叠,带车轮 颜色:黄色/橘黄色 配合使用产品:安全箭头指示标牌 功能:设置在施工区域外围,引导来往车辆,当有车辆误入施工区域,可以在最短距离内将其停止. 特点:重量轻,易移动,可折叠,收纳方便 使用方式:放置于施工区域后方 "迷你车止主要适用于车辆低速行驶的公路养护,公用事业,建筑工地等施工现场外围,以防来车方向的车辆未及时观察到施工现场而误闯.行驶车辆通过撞击外围的防撞缓冲装置,以可控的方式迫使撞击车辆停止,确保工作人员有安全舒适的工作场所. 产品由铝型材加工而成,材质环保,可回收利用.当车辆因冲击力度过大导致发生爆炸着火时,因该材质的不易燃性,可避免因飞溅物引起的二次灾害,确保司乘人员,工作人员和建筑等的安全. 产品结构设计合理,重量轻,可折叠,并在底部安装了辅助轮.使用时更加的轻便,易操作,单人即可完成移动,安装和收纳的工作,减轻了作业人员的工作强度,降低了施工单位的人力和时间成本." "车辆撞击上迷你车止后,在杠杆原理的作用下前轮迅速被抬起,车辆的动量被向下引导到地面,以便大幅减少向前的动力,动力转移至设备底部的橡胶垫上,在摩擦力的作用下,车辆最终被制止. 产品底部还设有2个减震缓冲装置,当车辆发生碰撞时,利用减震装置吸收车辆以最高达25°正面撞击时产生的冲击力." "1.精选吸收铝材,可塑性强,具有可持续性能. 2.外部静电喷涂工艺,不易生锈,适合室外天气. 3.颜色高亮醒目,搭配LED箭头板使用,可提高道路施工的能见度. 4.底部配备了可移动便捷车轮,设备移动起来非常轻松. 5.产品可折叠,易收纳,这放置于车辆的后备箱,已备随时使用. 6.吸收部位的铝材已获得了专利,并在海外通过了安全测试,吸收性能好." 产品的规格

产品规格表 项目 规格参数 品牌 RMHs 产品名称 迷你车止 / 可折叠防撞缓冲隔离栏 主要材质 高强度铝型材 表面工艺 静电喷涂 颜色 黄色 / 橘黄色(高亮醒目) 产品重量 20 KG 折叠收纳尺寸 L 1100 × W 664 × H 200 mm 展开工作尺寸 L 1040 × W 664 × H 894 mm 结构特点 可折叠设计,带辅助移动车轮,专利吸能铝结构,底部配减震缓冲装置及橡胶垫 核心功能 通过杠杆原理与摩擦力,引导和吸收车辆撞击动能,迫使误入车辆在最短距离内可控停止. 防护等级 可吸收最高达25°正面撞击产生的冲击力. 适用范围 市政道路养护,公用事业施工,建筑工地等低速行驶区域的施工外围隔离与警示. 配合使用产品 安全箭头指示标牌,LED箭头板等. 使用方式 放置于施工区域后方,作为外围缓冲隔离屏障.翻译

产品的优势

简单点

翻译

产品的简单知识问答

翻译

产品的简单的规格

翻译

产品与传统的优势对比

翻译

翻译成英语

产品的Q&A

简单

翻译

产品的优势

翻译

产品规格

英语

产品的采购注意点

简单点

翻译

再简单

产品的简单知识问答

该款迷你型的车辆移动屏障,适用于拦截在低速道路上实行的小型车辆.将它放置在公路养护,公用事业,建筑工地等施工现场外围,可以有效防止车辆未及时观察到施工现场而误闯.该移动屏障上方可以挂置我司定制的LED箭头板,具有很好的警示效果. 这款迷你型的车辆移动屏障的主要材料是铝材和橡胶,整体重量为20kg,重量轻,且具有可折叠的性质,折叠后的尺寸仅为L1100*W664*H200.可放置在车辆后备箱,便于携带.产品的底部安装了两个辅助车轮,一个人可以轻松移动,减轻了作业人员的工作强度,降低了施工单位的人力和时间成本.产品底部安装了三块特制的橡胶板,用于增加产品与地面的摩擦.产品的知识问答

翻译

产品的规格

翻译

简单点的优势比对

翻译

产品知识问答

翻译
