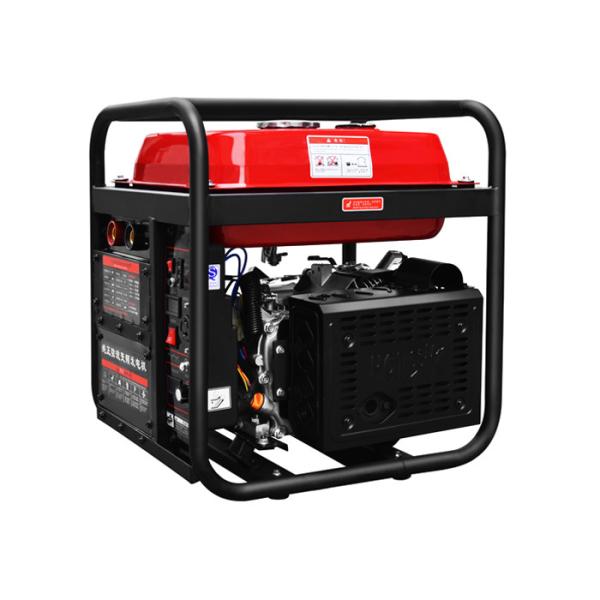

Automatic Manual Single Phase 2KW Welding Generator Machine 75 DBA/7m
Automatic Manual Single Phase 2KW Welding Generator Machine 75 DBA/7m
Automatic Manual Single Phase 2KW Welding Generator Machine 75 DBA/7m
Automatic Manual Single Phase 2KW Welding Generator Machine 75 DBA/7m
Automatic Manual Single Phase 2KW Welding Generator Machine 75 DBA/7m
Automatic Manual Single Phase 2KW Welding Generator Machine 75 DBA/7m
Specifications
Brand Name :
HUAN NENG
Model Number :
AXQ-120A
Certification :
CE, ISO 14001, ISO 9001
Place of Origin :
Chongqing, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
20000 sets per month
Delivery Time :
7-15 work days
Packaging Details :
Carton box packing for each set
Warranty :
1 Year
Automatic grade :
Automatic,Manual
Condition :
New
Weight :
35kg
Power(w) :
2KW
After-sales service provided :
Engineers available to service machinery overseas
Product name :
Integrated Power Generation And Welding Machine
Description

AXQ-120A Low Noise Rated 2kw Single-Phase Manual/Electric start Gasoline Integrated Power Generation And Welding Machine

2kw Integrated Power Generation And Welding Machine

Advantage and warning:

Gasoline electric welding and generator all-in-one machine solves the problem of no power supply for field welding. It is equipped with a 170 engine motor and is made of rare earth permanent magnet material NdFeB material. If you want a larger current, you can choose a larger model. In addition, the panel is equipped with a 2KW, DC 220V low-power power supply, and the output can be equipped with carbon brush power tools and incandescent lighting. Note: Do not use inductive loads (such as transformers, electric fans, AC motors, household appliances, etc.).

The details of it:

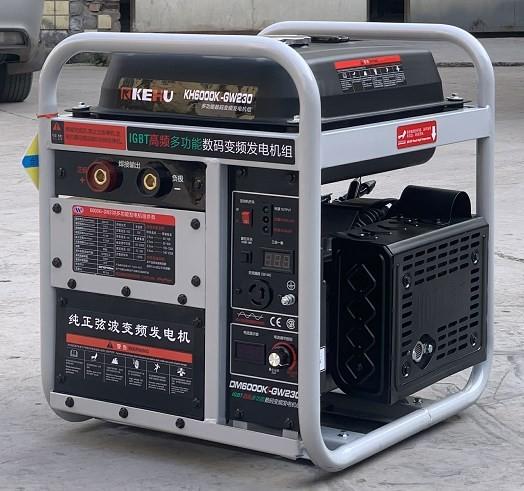

Unit brand model Huaneng Power 6000KI-GW230
dynamo Excitation method AVR voltage automatic adjustment
Rated output power 4.5KW
maximum output power 5KW
Rated voltage 220V
Maximum current 19.6A
Rated frequency 50Hz
Phase Simplex
Power factor COSΦ 1
Insulation class Class F
engine engine model 172F
Bore*stroke 72*55mm
Displacement 212cc
fuel consumption rate ≤135g/KW.h
ignition method Transistor contactless ignition
engine type single cylinder four stroke forced air cooling
fuel type ≥90# unleaded gasoline
oil quantity 0.6L
Start method hand start
Welding parameters Welder method hand arc welding
No-load voltage VDC 70V
Welding rod diameter mm 2.0-4.0
Current adjustment range 20-230A
Rated voltage VDC 22-28V
load duration >60%
Affiliate configuration fuel volume 15L
oil alarm Have
fuel indicator Have
control panel digital display
other noise 75dBA/7m
Continuous working time 8h
Dimensions 500*425*530mm
Package rigid carton
weight 37kg

Automatic Manual Single Phase 2KW Welding Generator Machine 75 DBA/7mAutomatic Manual Single Phase 2KW Welding Generator Machine 75 DBA/7mAutomatic Manual Single Phase 2KW Welding Generator Machine 75 DBA/7mAutomatic Manual Single Phase 2KW Welding Generator Machine 75 DBA/7mAutomatic Manual Single Phase 2KW Welding Generator Machine 75 DBA/7mAutomatic Manual Single Phase 2KW Welding Generator Machine 75 DBA/7mAutomatic Manual Single Phase 2KW Welding Generator Machine 75 DBA/7m
