Specifications
Brand Name :
Syntax
Model Number :
MD4
Certification :
EN60439-4, IEC60529, SAA
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
3000 sets/month
Delivery Time :
15 working days
Packaging Details :
Packed by paper carton
Material :
HDPE / PE (polyethylene, a kind of plastic)
Dimension :
630x430x900mm
IP Protection Rate :
IP67 Waterproof
Color :
Black
Description
MD4 Three Phase 250AMP IP67 Waterproof HDPE Mobile Distribution Power Panel
A robust mobile distribution power panel on wheels featuring IP67 waterproof protection, differential protection, and dimensions of 630x430x900mm. Designed for reliable temporary power distribution in demanding industrial environments.
Technical Specifications
Attribute Value
Box Model MD4 Portable Distribution Board IP67
Color Black
Dimensions 630×430×900mm

Incoming

Main Switch

 No incoming, no protection
Outgoing 1 2 × 5P 125A 400V IP67 Panel Mounted Sockets, Protected by 2 × 4P 125A 30mA RCBOs
Outgoing 2 2 × 5P 63A 400V IP67 Panel Mounted Sockets, Protected by 2 × 4P 63A 30mA RCBOs
Outgoing 3 4 × 5P 32A 400V IP67 Panel Mounted Sockets, Protected by 4 × 4P 32A 30mA RCBOs
Outgoing 4 8 × 3P 16A 220V IP44 Panel Mounted Sockets, Protected by 8 × 1P+N 16A 30mA RCBOs
Component Brands Distribution Box by Syntax; Industrial Plugs & Sockets by PowerSyntax; Breakers by CHINT

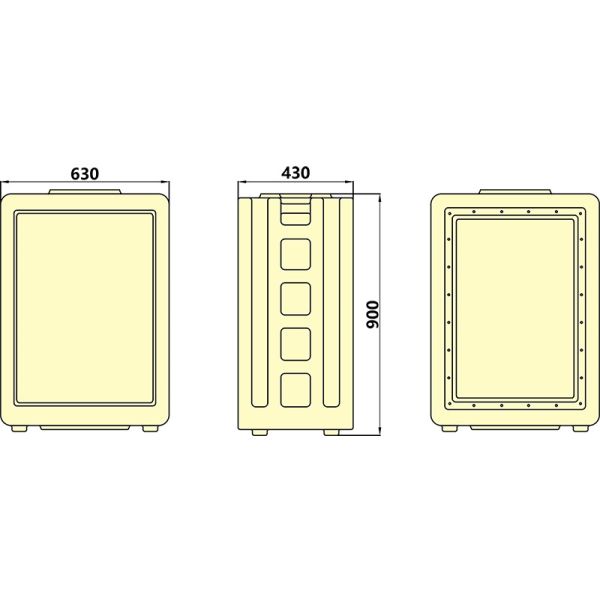

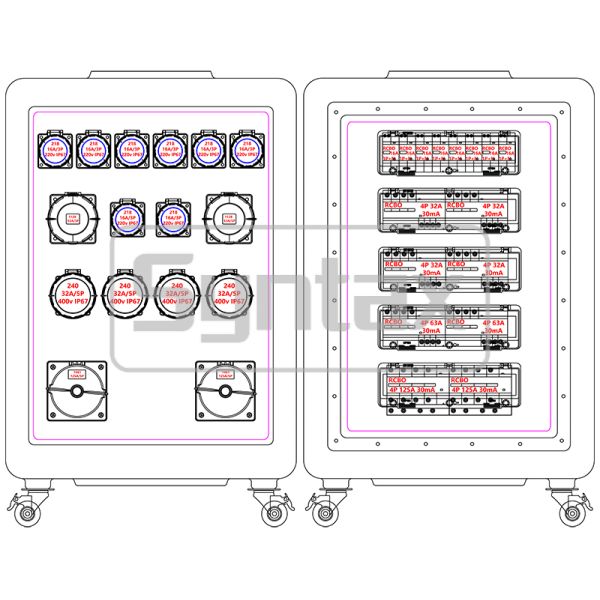

Product Drawings
Syntax MD4 Three Phase 250AMP IP67 Waterproof HDPE Mobile Distribution Power Panel On Wheels With Differential Protected 630x430x900mm Syntax MD4 Three Phase 250AMP IP67 Waterproof HDPE Mobile Distribution Power Panel On Wheels With Differential Protected 630x430x900mm
Key Features & Benefits
  • Designed to EN 60439-4, IEC 60529 standards
  • Waterproof and shockproof design with IP67 rating
  • Available in Black, Orange, and Yellow colors
  • Constructed from durable HDPE/PE polyethylene material
  • Stackable design for efficient storage and stability
  • Operating temperature range: -20℃ to +75℃
  • Quick assembly and dismantling
  • Safe and reliable connections
  • Reusable components for cost efficiency
  • Suitable for indoor and outdoor applications
  • Integrated feet for secure stacking
  • 24-month warranty on all parts and manufacturing defects
Specialized Design
This three phase 250Amp HDPE portable distro with wheels is special designed for stage temporary power box in Azerbaijan. It’s rated 250A, without incoming plug and without protection, and the outgoing is 2 nos 125A/5P 400v IP67 sockets protected by 2 nos 4P 125A 30mA RCBOs, 2 nos 63A/5P 400v IP67 sockets protected by 2 nos 4P 63A 30mA RCBOs, 4 nos 32A/5P 400v IP67 sockets protected by 4 nos 4P 32A 30mA RCBOs, and 8 nos 16A/3P 220v IP67 sockets protected by 8 nos 1P+N 16A RCBOs. The boxes is made in PE and IP67 Waterproof, which is perfect for the sports events especially for swimming match. We can bespoke power distro boxes built to order.
Industry Applications
  • Tunnel construction and drilling rigs
  • Marine, railway, and military operations
  • Industrial and construction sites
  • Event technology and large-scale indoor/outdoor events
  • Mining, quarries, and container terminals
  • Airports and harbor crane connections
  • Public infrastructure: urban rail, nuclear power stations, ports
  • Production facilities: metal processing, power plants, automotive
  • Communication equipment and automatic production lines
  • Music, sports, and entertainment venues
  • Civil infrastructure: hospitals, schools, shopping malls
  • Electric vehicle charging systems
Custom Solutions
When standard solutions don't meet your specific requirements, we provide customized power distribution boxes built to your specifications. Our experienced team utilizes CNC perforating machines for precise component installation and offers pre-wiring services for plugs, sockets, and circuit breakers before delivery.
