Specifications
Brand Name :
HYPER
Model Number :
MP24
Certification :
EN60439-4, IEC60529, SAA
Place of Origin :
China
MOQ :
15 set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000sets / month
Delivery Time :
15 days
Packaging Details :
Packed by carton
Material :
Polyethylene PE
Poles :
24 ways
Dimension :
37*34*33cm
Net Weight :
13.5kgs
IP Grade :
IP66 Waterproofing
Color :
Yellow
Description

24Pole IP66 Weather protected Customized Lightweight Mobile Power Distribution Box with Overcurrent Protection

Application

Distribution Panels are designed to act as the feeder for the smaller spider type boxes of wired for powering large equipment. A variety of input power available including: direct wire feed, 100A pin and sleeve, or cam type devices. Either a large generator or another large power source may power them.

Features & Benefits

  • Weather resistant socket helps to prevent unsafe operating conditions and nuisance tripping
  • Locking receptacles provide secure connections that prevent accidental separation
  • IK8 mechanical protection degree;
  • High quality thermoplastic material;

Markets Served

  • leisure
  • sport
  • marinas
  • campin

Specification

Input Output Circuit Breaker
1 * 63A / 415V 5 pins CEE supply plug 3 * 63A / 415V 5 pins IP67 CEE panel mounted socket 3 * 4P 63A 30mA RCD
8 meters 5*10mm2 cable 3 * 32A / 415V 5 pins IP67 CEE panel mounted socket 3 * 3P 32A MCB
1 * 16A / 415V 5 pins IP67 CEE panel mounted socket 2 * 1P 32A MCB
2 * 16A / 415V 3 pins IP67 CEE panel mounted socket 1 * 3P 16A MCB
2 * 1P 16A MCB

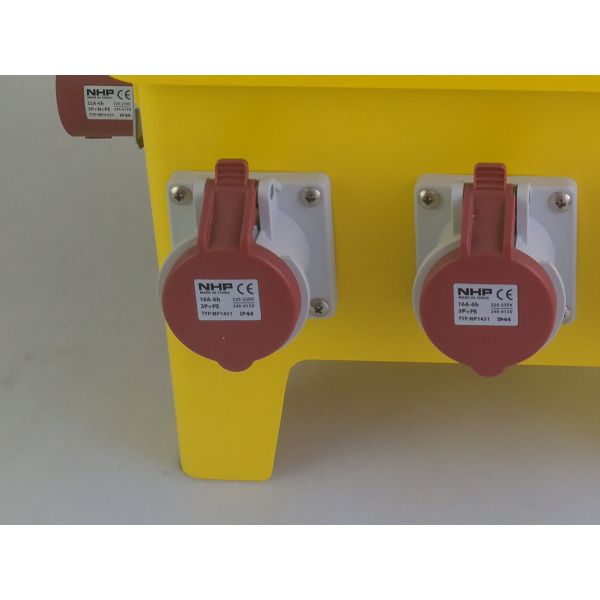

Product Pictures

Mobile Temporary Distribution Board , EN60439 4 Portable Power Distribution Panels

Mobile Temporary Distribution Board , EN60439 4 Portable Power Distribution Panels
