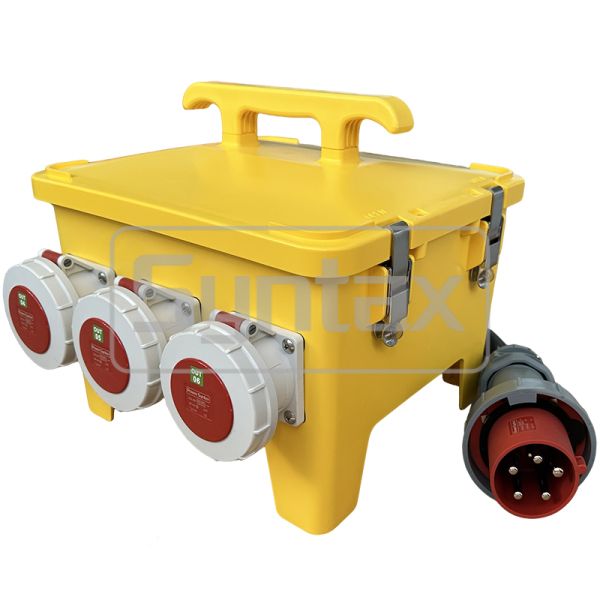

IP67 Waterproof Portable Power Distribution Board 63A/5P with Polycarbonate Resin Construction

Specifications

Brand Name :

Syntax

Model Number :

MP24

Certification :

Place of Origin :

China

MOQ :

1 set

Payment Terms :

L/C,T/T,Western Union

Supply Ability :

3000 sets/month

Delivery Time :

15 working days

Packaging Details :

Packed by paper carton

Material :

PC (Polycarbonate Resin, the best material of plastic)

Poles :

24 ways

Dimension :

370*340*330mm

IP Protection Rate :

IP67 Waterproof

Color :

Yellow

Description

Syntax MP24 IP67 Waterproof Portable Power Distribution Boards 63A/5P With 1.0m Rubber Cable Residual Protected 37*34*33CM

Professional IP67 waterproof portable power distribution board designed for demanding industrial applications with comprehensive safety protection.

Technical Specifications

Attribute	Value
Box	MP24 Portable Distribution Box IP67
Color	Black
Dimension of Box	370×340×330mm

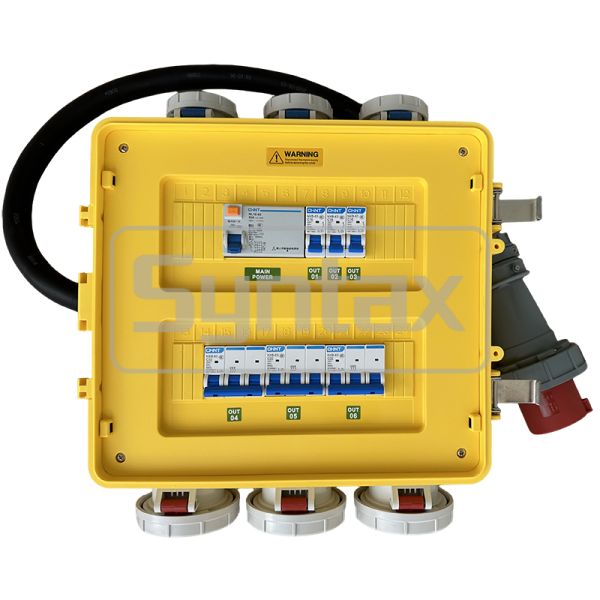

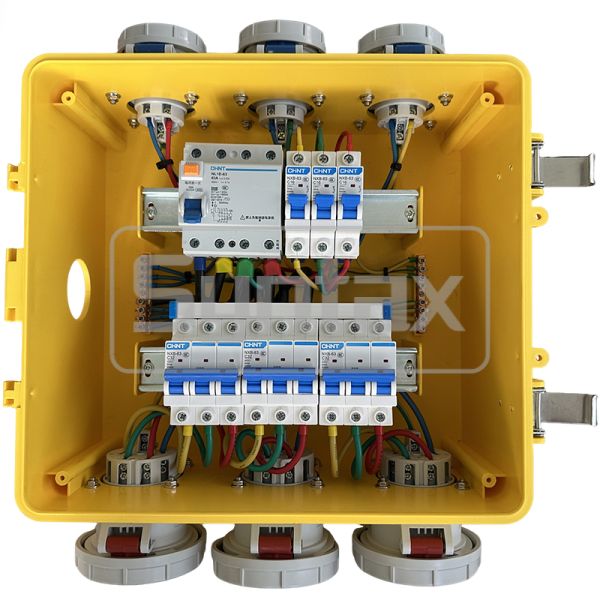

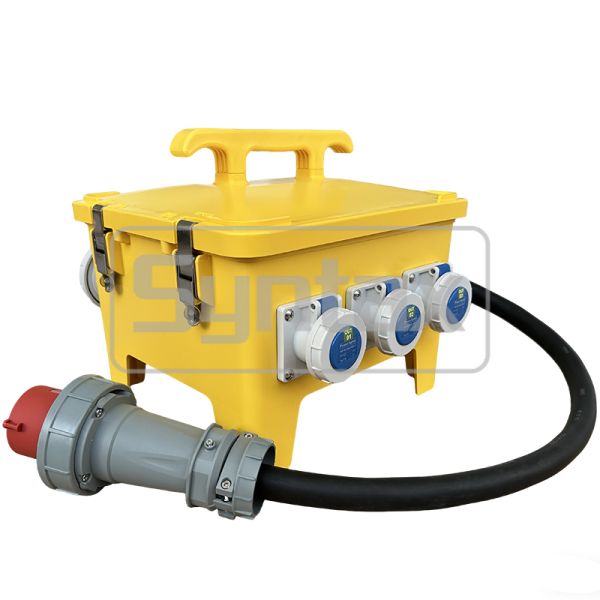

Incoming Main Switch	1 × 5P 63A 400V IP67 Plug with 1.0m 5×16mm² Flexible Rubber Cable, protected by 1 × 4P 63A 30mA RCCB

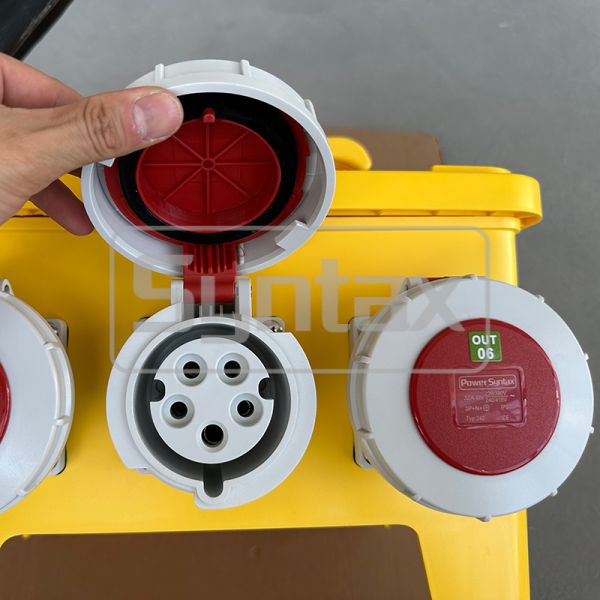

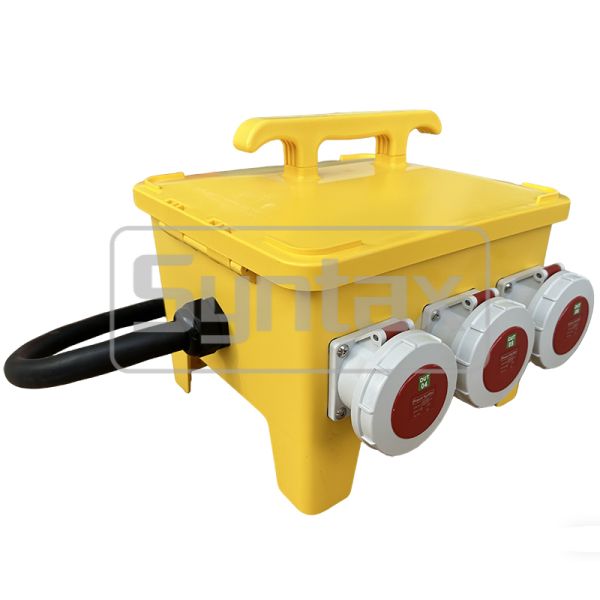

Outgoing Sockets 1-3 Breakers	3 × 5P 32A 400V IP67 Panel Mounted Sockets, protected by 3 × 3P 32A MCBs

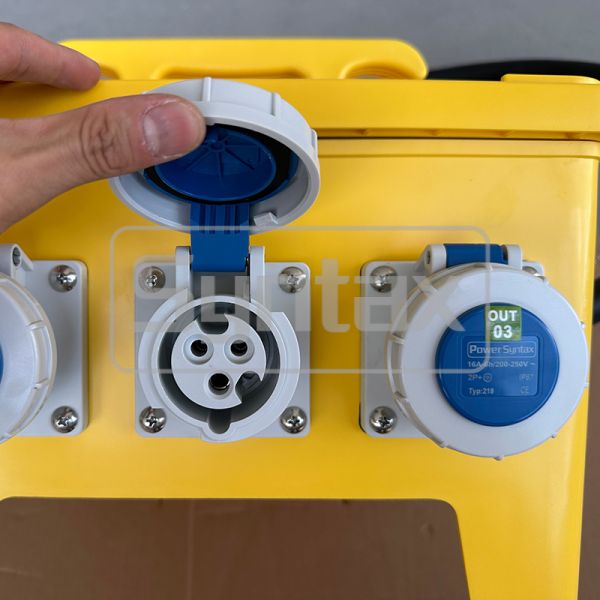

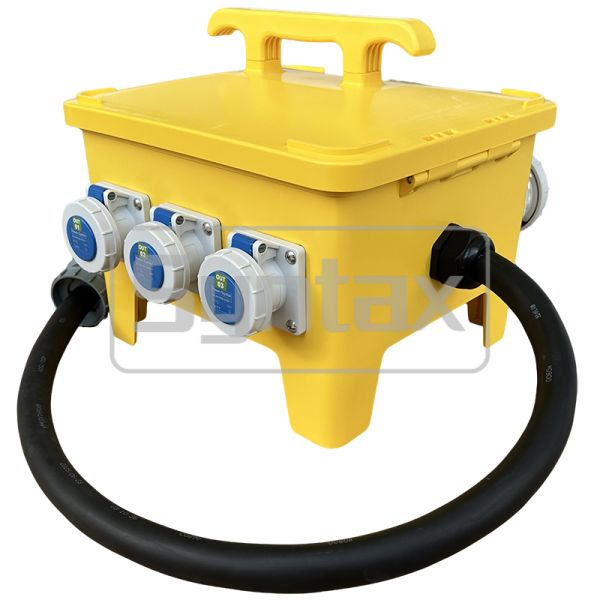

Outgoing Sockets 4-6 Breakers	3 × 3P 16A 220V IP44 Panel Mounted Sockets, protected by 3 × 1P 16A MCBs
Brands	Distribution Box by Syntax; Industrial Plugs & Sockets by PowerSyntax; Breakers by CHINT

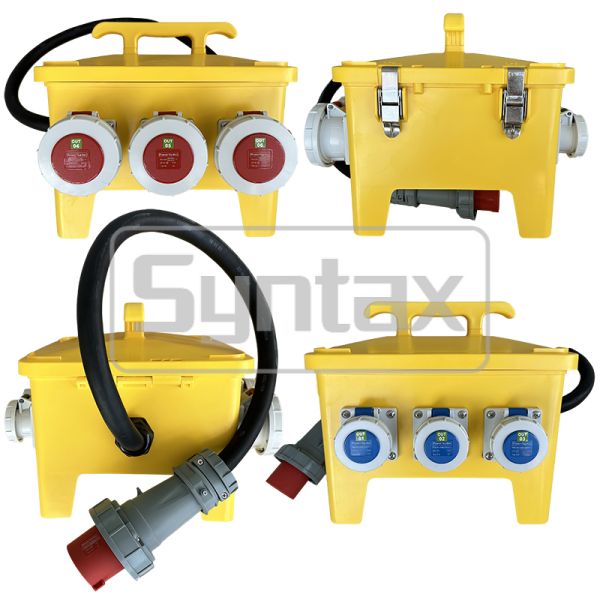

Product Drawings

Key Features

Designed based on EN 60439-4, IEC 60529 standards
Waterproof and shockproof design with IP67 rating
Available in Yellow or Black colors
Material: PC (Polycarbonate Resin - premium plastic material)
Stackable design for easier storage and daisy chaining
Operating Temperature: -20℃ to +75℃
Dimension: 370mm × 340mm × 330mm

Product Advantages

Quick assembly and dismantling
Safe and reliable connections
Reusability of all components
Suitable for indoor and outdoor use
Robust and durable construction
Easy handling and system management
Integrated feet for secure stacking
24 Months Warranty on all parts and manufacturing defects

Detailed Specification

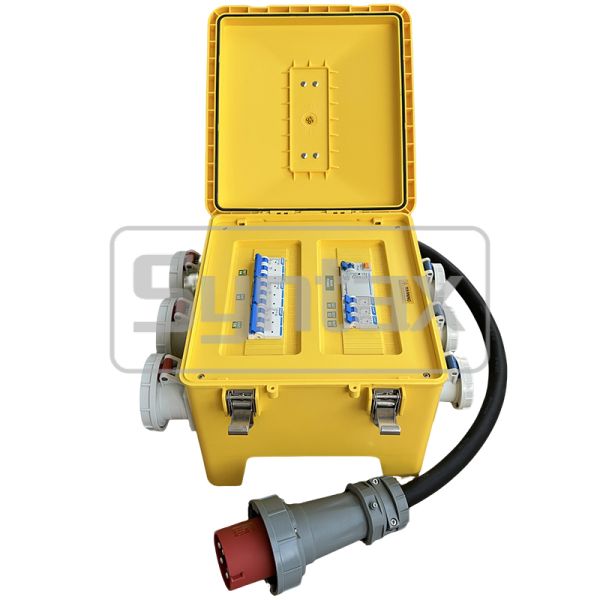

This CEE standard portable power distribution board is rated 63 AMP, 400VAC, IP67 Waterproof for use at Live Events, Sporting Events, Film & TV applications. The incoming features a 63A/5P 400V IP67 Plug with 1.0 meters flexible 5×16mm² rubber cable, protected by a 4P 63A 30mA RCD. Outgoing sockets include 3 × 32A/5P 400V IP67 panel mounted sockets protected by 3 × 3P 32A MCBs, and 3 × 16A/3P 220V IP67 sockets protected by 3 × 1P 16A MCBs. All industrial plugs and sockets are from PowerSyntax brand, while breakers are from CHINT brand. The box is constructed from PC material with IP67 waterproof rating, making it ideal for stage events. Custom power distribution boxes can be built to order.

Applications

Tunnel construction and drilling rigs
Gravel pits, quarries, and strip mining
Marine, railway, and military applications
Industrial and construction sites
Event technology and large-scale events
Chemical plants and airports
Container terminals and harbor crane connections
Urban rail transit and nuclear power stations
Wind power stations, ports, docks, and airports
Metal processing plants and automotive works
4G/5G communication equipment and stations
Automated production lines for electronics and food
Concerts, stadiums, and presentation venues
Hospitals, schools, banks, and shopping malls
Electric vehicle charging systems

Custom Solutions

OEM and ODM services are available. If standard solutions do not meet your application requirements, customer-specific solutions can be developed upon request.
