Specifications
Brand Name :
Syntax
Model Number :
MP24
Certification :
UL
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
3000 sets/month
Delivery Time :
15 working days
Packaging Details :
Packed by paper carton
Material :
PC (Polycarbonate Resin, the best material of plastic)
Poles :
24 ways
Dimension :
370*340*330mm
IP Protection Rate :
IP67 Waterproof
Color :
Black
Description
MP24 IP67 Waterproof Portable Power Distribution Unit
32A/5P with 1.2m Rubber Cable and Differential Protection - 37×34×33cm
Technical Specifications
Attribute Value
Box Model MP24 Portable Distribution Box IP67
Color Black
Dimensions 370×340×330mm

Incoming Plug

Main Switch

1×5P 32A 400V IP44 Plug with 1.2m 5×4mm² Flexible Rubber Cable,

protected by 1×4P 40A 30mA RCCB

Outgoing Sockets 1-2

Breakers

2×5P 32A 400V IP44 Panel Mounted Sockets,

protected by 2×3P 32A MCBs
Outgoing Sockets 3-8 Breakers

6×2P+E 16A 220V IP44 Schuko Sockets,

protected by 6×1P 16A MCBs
Brands Distribution Box by Syntax; Industrial Plugs & Sockets by Weipu; Breakers by Schneider

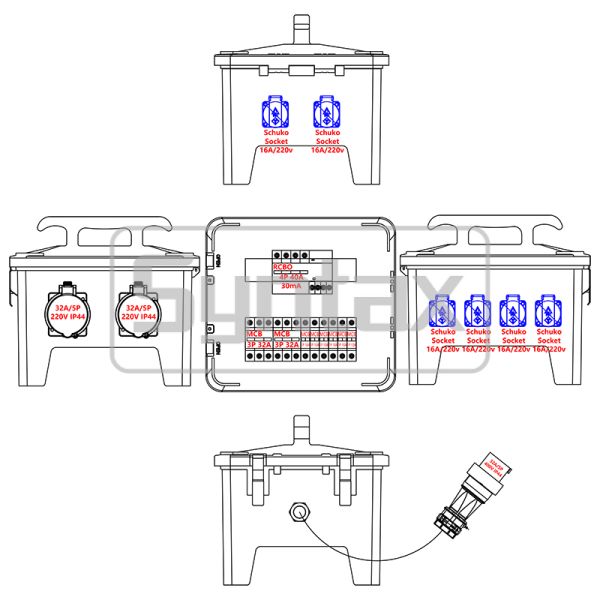

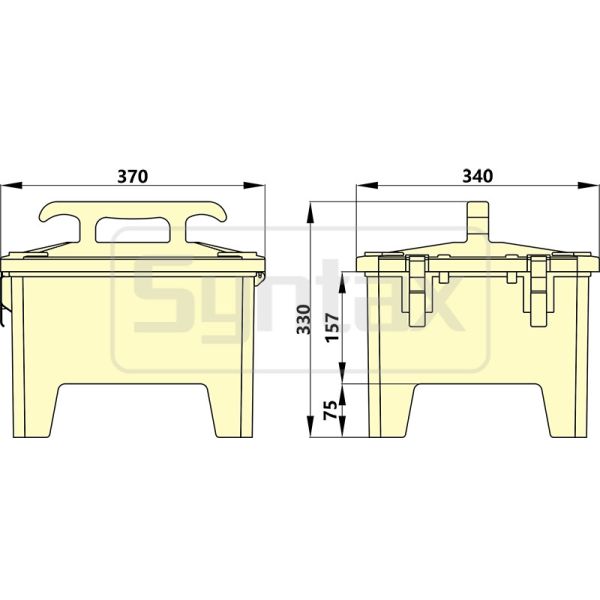

Product Drawings
Syntax MP24 IP67 Waterproof Portable Power Distribution Unit 32A/5P with Polycarbonate Resin Construction Syntax MP24 IP67 Waterproof Portable Power Distribution Unit 32A/5P with Polycarbonate Resin Construction
Key Features & Benefits
  • Designed to EN 60439-4 and IEC 60529 standards
  • Waterproof and shockproof design with IP67 rating
  • Available in Yellow or Black colors
  • Constructed from high-quality PC (Polycarbonate Resin)
  • Stackable design for easy storage and daisy chaining
  • Operating temperature range: -20℃ to +75℃
  • Compact dimensions: 370mm×340mm×330mm
Product Advantages
  • Quick assembly and dismantling
  • Safe and reliable connections
  • Reusable components
  • Suitable for indoor and outdoor applications
  • Robust construction for demanding environments
  • Easy handling with integrated stacking feet
  • 24-month warranty on all parts and manufacturing defects
Product Overview
This CEE standard portable power distribution board for use at Live Events, Sporting Events, Film & TV, is rating 32 AMP, 400VAC, IP44 Waterproof. The incoming is a 32A/5P 400V IP44 Plug with 1.2 meters flexible 5x4mm2 rubber cable, with the protection of a 4P 40A 30mA RCD. The outgoing sockets 1-2 are 2 nos 32A/5P 400v IP44 panel mounted sockets protected by 2 nos 3P 32A MCBs, and the outgoing sockets 3-8 are 6 nos 16A/2P+E 220v IP44 schuko sockets protected by 6 nos 1P 16A MCBs. All the Industrial Plugs and Sockets are made by famous brand Weipu; while the breakers by reputed brand Schneider. The boxes is made in PC and IP67 Waterproof, which is perfect for the events especially for stage. We can bespoke power distribution boxes built to order.
Applications
  • Tunnel construction and drilling rigs
  • Marine, railway, and military applications
  • Construction sites and event technology
  • Industrial plants and processing facilities
  • Communication equipment and power stations
  • Automated production lines
  • Public infrastructure and civil projects
  • Electric vehicle charging systems
Custom Solutions
We offer OEM and ODM services for custom power distribution boxes built to your specific requirements when standard solutions don't meet your application needs.
