Aluminum Frame Cabinet Air Purification Fan 1000-16000m3/h Multi Stage Filtration
Aluminum Frame Cabinet Air Purification Fan 1000-16000m3/h Multi Stage Filtration
Specifications
Brand Name :
Popula
MOQ :
1 set
Delivery Time :
2 two days for sampe order and 10 days for bulk order
Material :
Carbon steel
Motorpower :
0.5 kW - 30 kW
Certification :
CE, UL, Rohs
Outletdiameter :
150 - 1000 mm
Noiselevel :
65 - 85 dB
Application :
Ventilation, Dust Collection, Material Handling
Airflowcapacity :
1000 - 50000 CFM
Productname :
Industrial Centrifugal Fan
Powersupply :
220V / 380V / 440V
Mountingtype :
Horizontal / Vertical
Speed :
500 - 3600 RPM
Place of Origin :
China
Model Number :
FDY
Type :
Centrifugal
Packaging Details :
Carton packing for each； 500 sets around for 20 feet container
Supply Ability :
100000 Sets/week
Operatingtemperature :
-20°C to 80°C
Protectionclass :
IP54 / IP55
Pressurerange :
500 - 5000 Pa
Inletdiameter :
200 - 1200 mm
Payment Terms :
T/T
Description

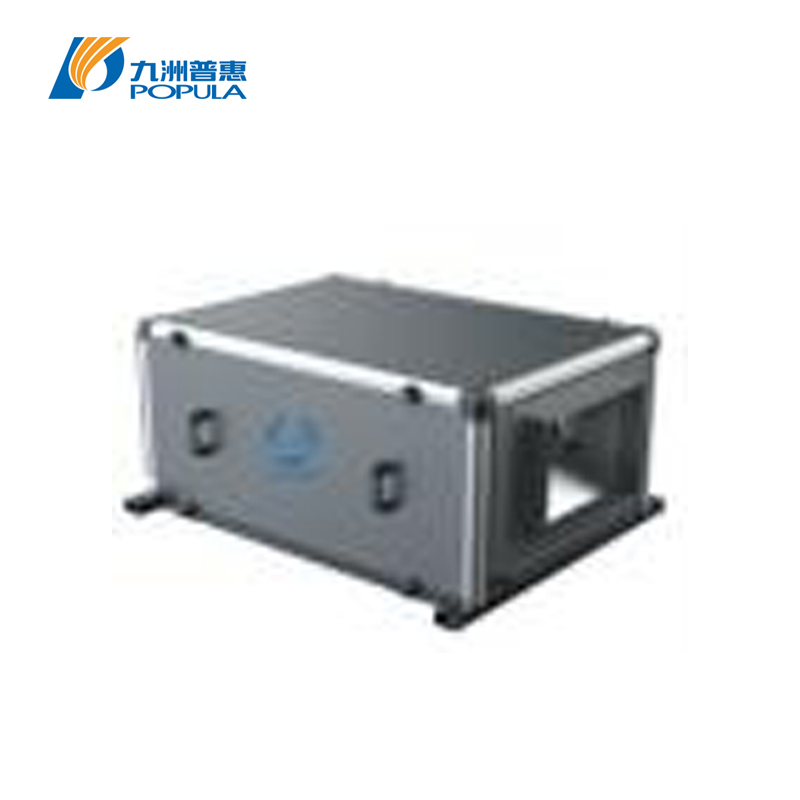

FDY Type Cabinet Purification Fan

The FDY Type Cabinet Purification Fan is a high-efficiency ventilation unit with integrated air filtration, designed for clean air supply and exhaust applications. Featuring multi-stage filtration and a robust cabinet design, it ensures clean, quiet, and reliable operation in commercial and industrial environments.

FDY Model Features

Material & Structural Properties

· The cabinet is constructed with an aluminum alloy frame and double-sided access doors for easy maintenance.

· Equipped with a multi-stage filtration system, including a washable metal mesh per-filter and a medium-efficiency filter. A high-efficiency filter is optional for enhanced PM2.5 removal.

· Powered by a dual-shaft external rotor pure copper motor with a multi-blade high-pressure double-layer impeller for high airflow and efficiency.

· Optional built-in sound insulation cotton (25mm thick) for superior noise reduction in the 13K/16K models.

Core Advantages

· Multi-Stage Filtration: The system effectively removes dust, bacteria, and other pollutants, ensuring clean air output.

· High Efficiency & Low Noise: Optimized motor and impeller design deliver powerful airflow with minimal noise and pressure loss.

· Easy Maintenance: The modular design with access doors allows for quick filter replacement and inspection.

· Durable Construction: The aluminum alloy frame provides a sturdy, corrosion-resistant structure.

Transport Medium Restrictions

The unit is designed for general ventilation applications. The conveyed air must not contain corrosive or flammable vapors, sticky substances, or high concentrations of dust. Operating temperature should not exceed 60°C.

Model Selection

The series includes models from 2K to 16K, with power ratings ranging from 180W to 4000W and airflow rates from 1000 to 16000 m³/h.

Model Voltage(V) Power(W) Effective Airflow(m³/h) Static Pressure(Pa) Noise(dB) Inlet Size(L×W, mm) Outlet Size(L×W, mm) Dimensions(L×W×H, mm) Weight(kg)
2K 380/220 180 2600/2000/1000 350 40 443×280 300×156 650×926×365 41
3K 380/220 320 3200/2500/1500 400 42 503×302 343×156 710×926×385 46
4K 380 550 4200/3000/2000 450 45 543×322 343×171 750×926×405 53
5K 380 800 5200/4000/2500 500 48 563×377 343×256 770×1026×460 57
6K 380 1100 6200/5000/3000 600 50 583×412 368×290 790×1026×495 69
7K 380 1500 7200/6000/3500 650 52 603×437 394×290 810×1026×520 76
8K 380 1500 8000/6500/4000 700 54 653×452 394×300 860×1126×535 90
9K 380 1800 9000/7200/4500 750 57 653×487 394×300 860×1126×570 100
10K 380 2200 10000/8000/5000 800 59 703×487 394×300 910×1126×570 120
13K 380 3000 13000/10000/6000 850 66 813×592 453×330 1040×1296×685 140
16K 380 4000 16000/13000/7500 900 68 813×622 453×340 1040×1296×715 150



Q1: What is the primary application of the FDY fan?
A1: It is designed for clean air supply and exhaust in commercial buildings, offices, hospitals, and other environments requiring high indoor air quality.

Q2: What filtration options are available?
A2: The standard system includes a pre-filter and medium-efficiency filter. A high-efficiency filter is optional for enhanced PM2.5 removal.

Q3: Is the unit easy to maintain?
A3: Yes, the modular design with access doors allows for quick and easy filter replacement and inspection.

Q4: What is the noise level of the fan?
A4: Noise levels range from 40 to 68 dB, depending on the model. The 13K and 16K models include built-in sound insulation for quieter operation.

Q5: Can the unit be used in humid environments?
A5: The aluminum alloy frame and corrosion-resistant components make it suitable for most indoor environments, but prolonged exposure to high humidity should be avoided.

Q6: What are the operating limits for temperature and humidity?
A6: The maximum operating temperature is 60°C, and it can operate in environments with up to 100% relative humidity.

Q7: How do I select the right model for my project?
A7: Select based on your required airflow (m³/h) and static pressure (Pa). Our technical team can help you choose the best model based on your specific application.

Q8: Is the fan suitable for continuous operation?
A8: Yes, it is designed for 24/7 continuous operation with low noise and vibration.

Q9: What is the lifespan of the filters?
A9: The medium-efficiency filter has a service life of up to 240 days, depending on usage conditions.

Q10: What after-sales support do you provide?
A10: Each unit includes a detailed installation and operation manual, and we offer full after-sales technical support.
