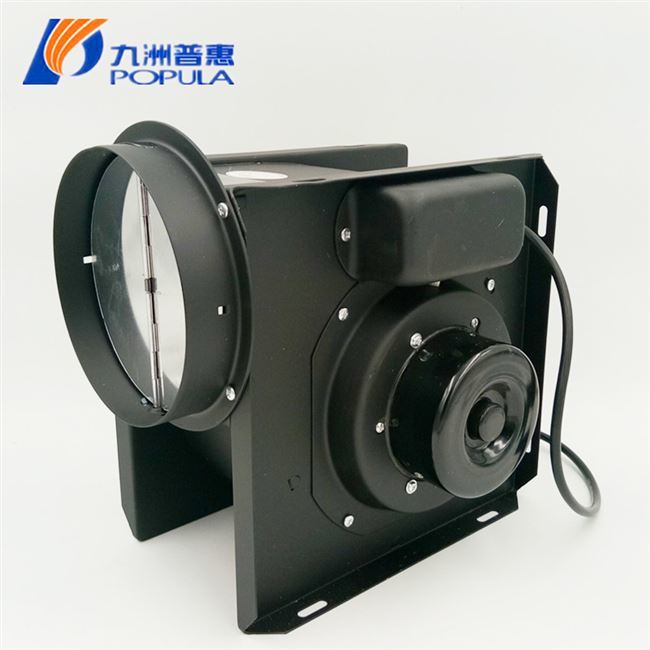

Metal Duct Fan High Anti Rust Coating Split Type Inline Booster Fan Easy Installation
Metal Duct Fan High Anti Rust Coating Split Type Inline Booster Fan Easy Installation
Specifications
Payment Terms :
T/T
Motorpower :
0.5 kW - 30 kW
Type :
Centrifugal
Operatingtemperature :
-20°C to 80°C
Place of Origin :
China
Productname :
Industrial Centrifugal Fan
Speed :
500 - 3600 RPM
Noiselevel :
65 - 85 dB
Pressurerange :
500 - 5000 Pa
Mountingtype :
Horizontal / Vertical
MOQ :
1 set
Outletdiameter :
150 - 1000 mm
Application :
Ventilation, Dust Collection, Material Handling
Airflowcapacity :
1000 - 50000 CFM
Material :
Steel / Stainless Steel
Protectionclass :
IP54 / IP55
Supply Ability :
100000 Sets/week
Powersupply :
220V / 380V / 440V
Delivery Time :
2 two days for sampe order and 10 days for bulk order
Certification :
CE, UL, Rohs
Brand Name :
Popula
Inletdiameter :
200 - 1200 mm
Description

GF Series Metal Split Type Duct Fan

* The GF series metal split-type duct fan features a high-strength metal casing with anti-rust spray treatment, ensuring durability and corrosion resistance. ·

* Equipped with a high-quality ball bearing motor and forward multi-blade impeller, it delivers efficient high-pressure airflow for ventilation and duct pressure boosting. ·

* The fan is widely used in hotels, shopping malls, offices, and residential buildings for air exchange and duct pressurization. ·

* The series includes multiple models with varying power ratings, airflow capacities, and static pressures to suit different duct system requirements. ·

* Designed for continuous operation, the fan provides reliable performance in commercial and residential environments.

GF Model Features:

Material Properties

The GF series is constructed with a high-strength metal casing and treated with anti-rust spray paint for long-lasting protection against corrosion. The fan features a forward multi-blade impeller and a high-quality ball bearing motor for efficient operation.

Standard models operate on 220V single-phase power, suitable for use in normal ambient temperatures. The fan is designed for use in ventilation systems where duct pressure boosting is required.

Benefits

· High Efficiency: The multi-blade impeller design delivers high airflow with strong static pressure, ideal for duct systems.

· Durable Construction: The metal casing with anti-rust treatment ensures long-term reliability in various environments.

· Versatile Applications: Suitable for ventilation and duct pressure boosting in commercial and residential buildings.

Fan Structure

The fan features a split-type metal casing with a forward multi-blade impeller and a direct-coupled motor. The design allows for easy installation in duct systems.

Model Selection

The series includes models from GF100-4 to GF210-4, with power ranging from 17W to 330W and airflow capacities from 153m³/h to 1263m³/h. Each model is sized to fit different duct diameters (100mm to 200mm).

Model Power(W) Voltage(V) Volume(m³/h) Static Pressure(Pa) Noise dB(A) Pipe Size(mm)
GF100-4 17 220 153 60 43 100
GF100-2 35 220 280 70 62 100
GF120-4 33 220 317 100 43 150
GF120-2 90 220 633 112 65 150
GF150-4 59 220 412 132 48 150
GF150-4 80 220 481 142 50 150
GF190-4 160 220 729 120 61 200
GF190-4 200 220 935 139 63 200
GF210-4 290 220 985 145 63 200
GF210-4 330 220 1263 167 65 200

Q1: What are the main applications of the GF duct fan?
A1: It is widely used for ventilation and duct pressure boosting in hotels, shopping malls, offices, and residential buildings.
Q2: What is the key design feature of the GF series?
A2: The fan features a high-strength metal casing with anti-rust treatment and a forward multi-blade impeller for high-pressure airflow.
Q3: What power supply options are available?
A3: The fan operates on 220V single-phase power supplies, suitable for commercial and residential applications.
Q4: What duct sizes are compatible with the GF series?
A4: The series includes models for duct sizes of 100mm, 150mm, and 200mm.
Q5: Can the fan be used for duct pressure boosting?
A5: Yes, the fan is designed to provide efficient high-pressure airflow for duct pressurization.
Q6: Is the fan easy to install?
A6: Yes, the split-type design allows for straightforward installation in duct systems.
Q7: What maintenance is required for the GF duct fan?
A7: Regular checks of the motor and impeller, as well as cleaning of the casing, are recommended to ensure optimal performance.
Q8: How do I choose the right model for my duct system?
A8: Consider the required airflow, static pressure, and duct size. The series offers models with different capacities to suit various duct system requirements.
Q9: What is the operating temperature range for the fan?
A9: The standard model is suitable for normal ambient temperatures, typically between -10℃ and 40℃.
Q10: What certifications does the GF series have?
A10: The series meets international quality standards. CE-certified versions are available for European customers.
