Polcd Small Touch LCD Module 2.4 240x320 LCM screen Panel 2.4 inch TFT liquid crystal display
Polcd Small Touch LCD Module 2.4 240x320 LCM screen Panel 2.4 inch TFT liquid crystal display
Polcd Small Touch LCD Module 2.4 240x320 LCM screen Panel 2.4 inch TFT liquid crystal display
Polcd Small Touch LCD Module 2.4 240x320 LCM screen Panel 2.4 inch TFT liquid crystal display
Polcd Small Touch LCD Module 2.4 240x320 LCM screen Panel 2.4 inch TFT liquid crystal display
Polcd Small Touch LCD Module 2.4 240x320 LCM screen Panel 2.4 inch TFT liquid crystal display
Polcd Small Touch LCD Module 2.4 240x320 LCM screen Panel 2.4 inch TFT liquid crystal display
Polcd Small Touch LCD Module 2.4 240x320 LCM screen Panel 2.4 inch TFT liquid crystal display
Polcd Small Touch LCD Module 2.4 240x320 LCM screen Panel 2.4 inch TFT liquid crystal display
Polcd Small Touch LCD Module 2.4 240x320 LCM screen Panel 2.4 inch TFT liquid crystal display
Specifications
Brand Name :
Polcd
Model Number :
P024C115-CTP
Certification :
RoHS, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Please contact us for latest price
Payment Terms :
T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram
Supply Ability :
40,000 PCS per day
Delivery Time :
1-7 working days
Packaging Details :
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Resolution :
2.4 inch 240x320
Interface :
4 Wire SPI
Driver IC :
ST7789V3
Brightness (cd/m²) :
260 nit
Viewing Angle :
12 o'clock
Display area :
36.72(H)x48.96(V)mm
Description

Parameter:

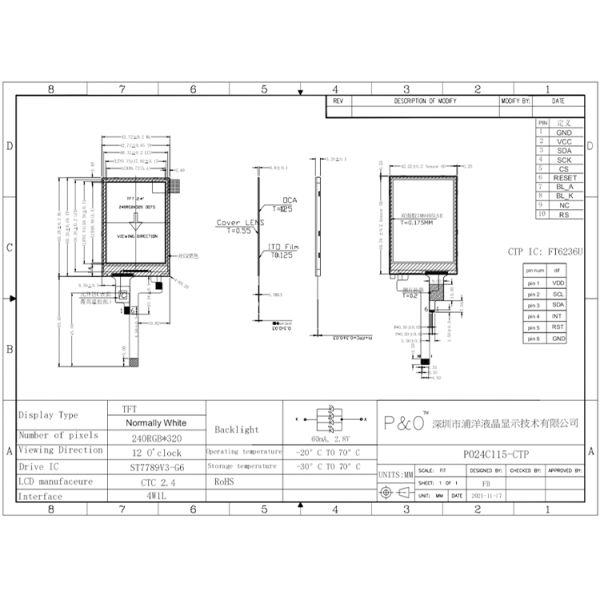

Model P024C115-CTP
Screen Size 2.4 inch diagonal
Number of Pixel 240RGB(H)x320(V)
Display area 36.72(H)x48.96(V)mm
Pixel pitch 51(H)x153(V)um
Pins 10 Pins
Outline Dimension 42.72x60.26x3.20mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally White
Viewing Direction(eye) 12 0'CLOCK
Gray inversion direction --
Display Color 262K
Luminance(cd/m2) 260 nit
Contrast Ratio 250:1
Surface treatment ――
Interface 4W SPI
Back-light LED Side-light type
Drive IC ST7789V3
Operation Temperature -20~70℃
Storage Temperature -30~80℃


2.4 inch TFT display is a thin-film transistor liquid crystal display that measures 2.4 inches diagonally. It is a popular display size for various applications, including handheld devices, digital cameras, portable gaming consoles, and other embedded systems. The display has a high resolution and contrast ratio, a wide viewing angle, and a built-in resistive touchscreen. It also supports various communication protocols, such as SPI, I2C, and UART, making it compatible with a wide range of devices. Its low power consumption and built-in power management system make it ideal for battery-powered devices. Additionally, its compact and lightweight design makes it easy to integrate into various devices.


Free Service:
1. Free Connectors for Sample Order.
2. 50% Discount for Tooling Charge.
3. Free Modification for Tooling of CTP / FPC / Backlight.
4. Free Tooling for Order ≥3000pcs Within 1 Year VIP.
5. Free Tooling for FPC.
6. Free Samples for Standard Products.
7. Free Testing Board for New Projects.
8. Half Tooling Fee for Customizing Backlight / CTP.

Polcd Small Touch LCD Module 2.4
