Polcd 2'' 2 Inch 240x320 Resolution ST7789V SPI Interface IPS TFT LCD Screen Lcd Display Module
Polcd 2'' 2 Inch 240x320 Resolution ST7789V SPI Interface IPS TFT LCD Screen Lcd Display Module
Polcd 2'' 2 Inch 240x320 Resolution ST7789V SPI Interface IPS TFT LCD Screen Lcd Display Module
Polcd 2'' 2 Inch 240x320 Resolution ST7789V SPI Interface IPS TFT LCD Screen Lcd Display Module
Polcd 2'' 2 Inch 240x320 Resolution ST7789V SPI Interface IPS TFT LCD Screen Lcd Display Module
Polcd 2'' 2 Inch 240x320 Resolution ST7789V SPI Interface IPS TFT LCD Screen Lcd Display Module
Polcd 2'' 2 Inch 240x320 Resolution ST7789V SPI Interface IPS TFT LCD Screen Lcd Display Module
Polcd 2'' 2 Inch 240x320 Resolution ST7789V SPI Interface IPS TFT LCD Screen Lcd Display Module
Specifications
Brand Name :
Polcd
Model Number :
P020H025-IPS
Certification :
RoHS, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Please contact us for latest price
Payment Terms :
T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram
Supply Ability :
40,000 PCS per day
Delivery Time :
1-7 working days
Packaging Details :
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Size (inch) :
2 inch
Resolution :
240*320
Active Area (W * H ) :
30.60(H)x40.80(V)mm
Brightness (cd/m²) :
260 nit
Interface :
4W SPI
Driver Ic :
ST7789V
Description

Product description:

The 2 inch TFT LCD is a versatile display technology that offers high resolution, accurate color representation, low power consumption, and a compact size. It is a popular choice for use in handheld devices like digital cameras, portable media players, and gaming devices.


Parameter:

Model P020H025-IPS
Screen Size 2.0 inch
Number of Pixel 240RGB(H)x320(V)
Display area 30.60(H)x40.80(V)mm
Pixel pitch 0.0425(H)x0.1275(V)mm

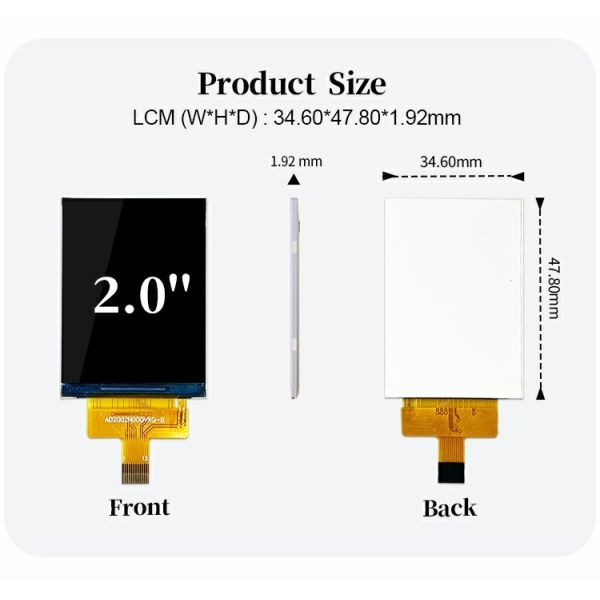

Outline Dimension 34.60x47.80x1.92mm
Pixel arrangement RGB Vertical Stripe
Pins 12 Pins
Display mode Normally Black
Viewing Direction(eye) ALL
Display Color 262K
Luminance(cd/m2) 260 nit
Contrast Ratio 800:1
Interface 4W SPI
Back-light LED Side-light type
Drive IC ST7789V
Operation Temperature -20~70℃
Storage Temperature -30~80℃
